HomeMake: Triumph1971–72 Triumph 650 twins T120 Oil In FrameControls, Handlebars & InstrumentsControl Cables

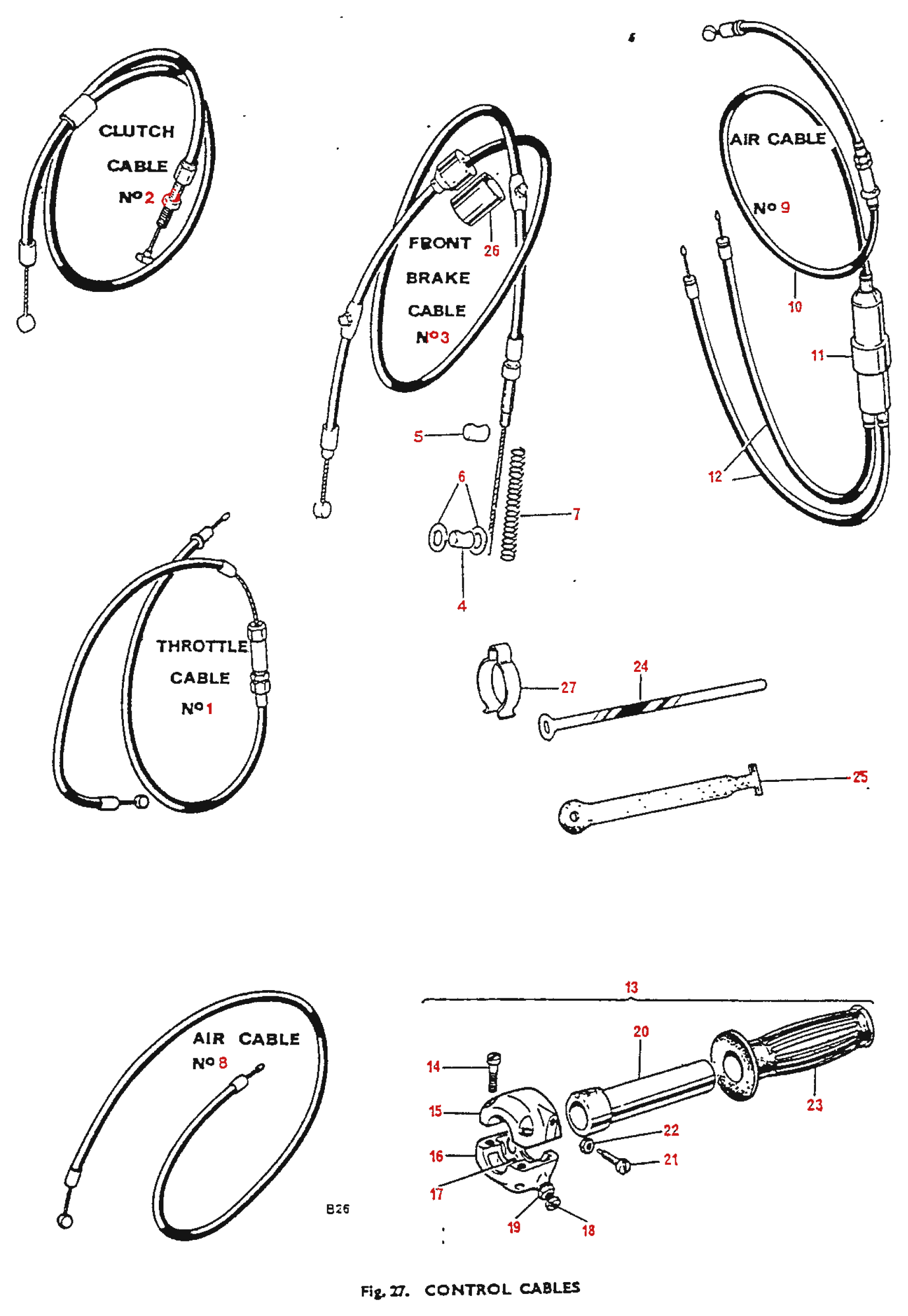

| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |
Throttle Cable | 60-1819 | 2 | T120R. | $23.00 | View |
| 1 |  |
Throttle Cable | 60-1806 | 1 | TR6C, TR6R. | $21.00 | View |
| 2 |  |
Clutch Cable | 60-3079 | 1 | $68.00 | View | |
| 3 |  |
Front Brake Cable | 60-3075 | 1 | Available In Longer Lengths for High bars | $48.00 | View |
| 3 | |
Front Brake Cable | 60-3557 | 1 | Later Models Use The Following. | $48.00 | View |
| 4 | Bush-Brake Cable Stop | 37-3867 | 1 | ||||
| 5 | Bush-Brake Cable | 37-3868 | 1 | ||||
| 6 |  |
Washer | 71-2500 | 2 | View | ||
| 7 |  |
Cable Spring | 37-4014 | 1 | View | ||
| 8 | Air Control Cable | 60-1807 | 1 | TR6C, TR6R. | |||
| 5 |  |
Bush-Brake Cable | 37-3997 | 1 | Later Models Use The Following. | $11.00 | View |
| 9 | Air Control Cable | 60-3485 | 1 | T120R. | |||
| 10 |  |
Cable, Lever To Junction Box | 60-1818 | 1 | $23.00 | View | |
| 11 |  |
Junction Box (D685) | 244/104 | 1 | $15.40 | View | |
| 12 |  |
Cable, Junction Box To Carburetor | 60-3486 | 2 | $21.00 | View | |
| 13 |  |
Twin Rotor Twistgrip (99-0347) | 313/13 | 1 | T120R. | $36.00 | View |
| 14 | Screw (99-0251) | 18/084 | 2 | ||||
| 15 | Body, Top Half (99-0348) | 313/020 | 1 | ||||
| 16 | Body, Bottom Half (99-0349) | 313/021 | 1 | ||||
| 17 |  |
Friction Spring | 16/008 | -- | Reference only. | $9.00 | View |
| 18 | Screw | 210/007 | -- | Reference only. | |||
| 19 |  |
Nut | 5/077 | -- | Reference only. | $3.45 | View |
| 20 | Rotor (99-0344) | 313/004 | 1 | ||||
| 21 | Rotor Stop Screw (99-0338) | 210/008 | 1 | ||||
| 22 | Nut-Rotor Stop Screw (99-0224) | 5/077 | 1 | ||||
| 23 |  |
Grip | 97-2125 | 1 | $27.95 | View | |
| 24 |  |
Cable Clip | 60-0978 | 6 | $3.60 | View | |
| 25 | Cable Clip | D343/7 | 6 | ||||
| 26 |  |
Cover, Front Brake Stop Switch | 60-2086 | 1 | Original price was: $2.55.$1.21Current price is: $1.21. | View | |
| 27 |  |
Handlebar Clip | 97-4112 | 4 | $4.40 | View |
