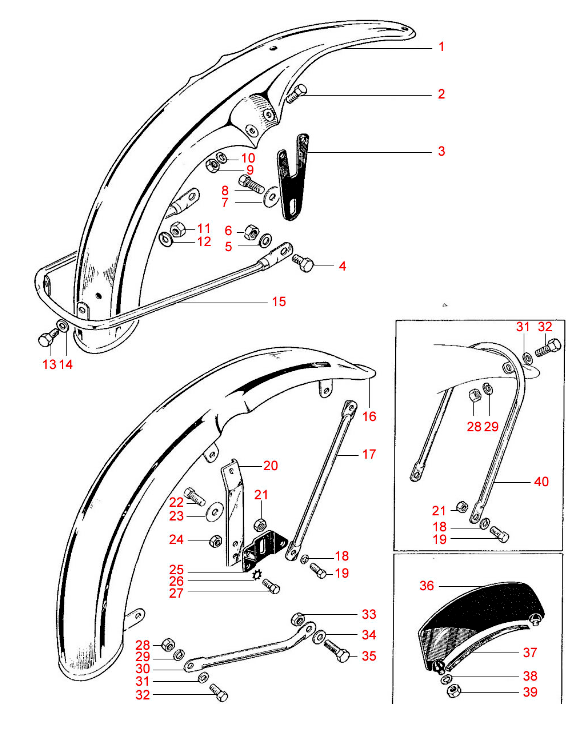

HomeMake: BSABSA A65-1970Mudguards, Seats, Panels & TanksFront Mud Guards
| Plate # | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|
| 16 | 4 tab Front Mudguard Chrome | 68-6539 | 1 | |||
| 17 | Front Mudguard front stay chrome | 97-3650 | 2 | Front Mudguard front stay chrome | ||
| 18 | Spring washer, 5/16 | 24-8784 | 2 | Spring washer, 5/16 | $0.41 | View |
| 19 | Bolt 5/16 x 5/8 UNF | 14-0113 | 2 | Bolt 5/16 x 5/8 UNF | $1.50 | View |
| 20 | Mudgrd stay kinked | 68-6548 | 1 | Mudgrd stay kinked | ||
| 21 | 5/16 UNF nut | 14-0402 | 2 | 5/16 UNF nut | $1.45 | View |
| 22 | BOLT 5/16 UNF X 1/2 | 21-1822 | 2 | BOLT 5/16 UNF X 1/2 | $1.00 | View |
| 23 | Washer, bracket to fork leg | 54-5504 | 2 | Washer, bracket to fork leg | ||
| 24 | LOCK NUT 5/16 UNF | 14-0402 | 4 | LOCK NUT 5/16 UNF | $1.45 | View |
| 25 | FRONT FORK MOUNTING BRACKET SET | 82-9610 | 1 | FRONT FORK MOUNTING BRACKET SET | $31.82 | View |
| 26 | Shake Proof Washer | 36-0382 | 4 | Shakeproof serrated washer | $0.59 | View |
| 27 | SET SCREW 5/16 UNF X 3/4 | 14-0114 | 4 | SET SCREW 5/16 UNF X 3/4 | $0.59 | View |
| 28 | NUT 1/4 UNF | 14-0301 | 4 | NUT 1/4 UNF | $0.50 | View |
| 29 | FLAT WASHER 1/4 X 5/8 | 82-9020 | 6 | FLAT WASHER 1/4 X 5/8 | $0.27 | View |
| 30 | Front Mudguard rear stay LH/RH chrome | -- | -- | Front Mudguard rear stay LH/RH chrome | ||
| 31 | FLAT WASHER 1/4 X 1/2 | 27-8560 | 6 | FLAT WASHER 1/4 X 1/2 | View | |
| 32 | Bolt | 14-0102 | 6 | BOLT 1/4 UNF X 5/8 | $0.77 | View |
| 33 | Nut | 14-0702 | 2 | Nut For Mudguard Bracket Bolt Number #12 | $3.59 | View |
| 34 | Washer | S19-3 | 2 | Washer | $0.41 | View |
| 35 | SET SCREW 5/16 UNF X 3/4 | 14-0114 | 2 | SET SCREW 5/16 UNF X 3/4 | $0.59 | View |
| 36 | Front number plate | 68-6524 | 1 | Front number plate | ||
| 37 | beading | 42-6558 | 1 | Beading | ||
| 38 | Washer | 82-9020 | 2 | FLAT WASHER 1/4 X 5/8 | $0.27 | View |
| 39 | Nut | S1-2 | 2 | NUT 1/4 CEI | $1.05 | View |
| 40 | Front Stay | 97-3850 | 1 | Front Stay |
