1973-74 Norton Commando Rear Mudguard, Tail Light, Tail Section
Scroll sideways to view the table completely.
| Plate # | Part Name | Part # | Qty Fitted | Description | |
|---|---|---|---|---|---|
| 1 | Rear Mudguard | 064047 | 1 | Highly polished stainless steel. | View |
| 2 | Decal "Made in England" | 064062 | 1 | 117 mm x 10 mm, stick on. | View |
| 3 | Rear Mudguard Mounting Plate | 062169 | 1 | At front, painted black. | View |
| 4 | Bolt | 22403 | 1 | 5/16" UNF x 3/4" long. | View |
| 5 | Bolt | 060652 | 2 | 1/4" UNF x 1" long. | View |
| 6 | Washer | 000012 | 4 | 1/4" plain. | View |
| 7 | Washer | 000011 | 2 | 5/16" plain. | View |
| 8 | Nut | 060029 | 2 | 3/8" UNF Nyloc. | View |
| 9 | Nut | 060348 | 1 | 5/16" UNF Nyloc. | View |
| 10 | Nut | 062240 | 2 | 1/4" UNF Nyloc. | View |
| 11 | Rear Mudguard Bracket Spacer | 062170 | 2 | View | |
| 12 | Rear Mudguard Adjuster Nut | 060651 | 1 | 5/16" UNF small. | View |
| 13 | Rear Number Plate Beading | 063733 | 1 | Sold by the foot (30cm). | View |
| 14 | Tail Light Pillar Nut | 063921 | 2 | For big square light. | View |
| 15 | Washer | 000039 | 3 | 3/16" plain. | View |
| 16 | Lock Washer | 22401 | 3 | 3/16" spring. | View |
| 17 | Heat Shield Screw | 060946 | 3 | 3/16" x 1/4" UNF. | View |
| 18 | Rear Mudguard Screw | 063926 | 1 | Special, 5/16" UNF with 2BA threaded hole. | View |
| 19 | Washer | 000011 | 3 | 5/16" plain. | View |
| 20 | Tail Light Fairing | 063731 | 1 | For square light. | View |
| 21 | Nut | 060348 | 1 | 5/16" UNF plain. | View |
| 22 | Rear Mudguard Clip Bracket | 061121 | 1 | Clamps 063727 bracket. | View |
| 23 | Rubber | 064220 | 1 | Fits 061121 bracket. | View |
| 24 | Bolt | 060359 | 1 | 5/16" UNF x 5/8" long. | View |
| 25 | Number Plate Support Bracket | 063727 | 1 | Fits with 063724 mounting. | View |
| 26 | Spindle Bolt | 060327 | 2 | 1/4" UNF x 1/2" long. | View |
| 27 | Washer | 000012 | 2 | 1/4" plain. | View |
| 28 | Tail Light Grommet | 064152 | 2 | For square light. | View |
| 29 | Rear Number Plate Mounting | 063724 | 1 | For big square light. | View |
| 30 | Rear Mudguard Spacer | 064016 | 1 | To 062169 plate. | View |
| 31 | Cable Tie 4" | 062828 | 4 | 4" long, plastic. | |
| 32 | Tail Light Assembly | 063736 | 1 | Replica Lucas type 917, with side reflectors. | View |
| 33 | Tail Light Lens | 54584930 | 1 | Replica lens for Lucas 917 tail light. | View |
| 34 | Tail Light Lens Screw Set | 060946 | 1 | Includes lens & fairing screws & washers. | View |

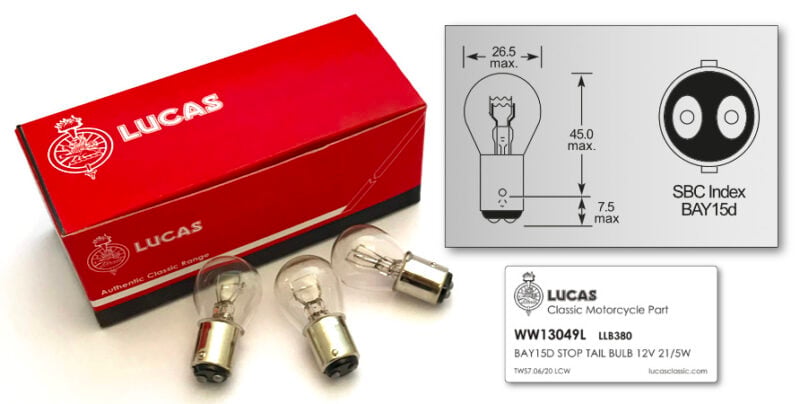

| 35 | Stop & Tail Light Bulb (Lucas) | 380 | AR | Lucas bulb, 12 volt, 21/5 watt. | View |
