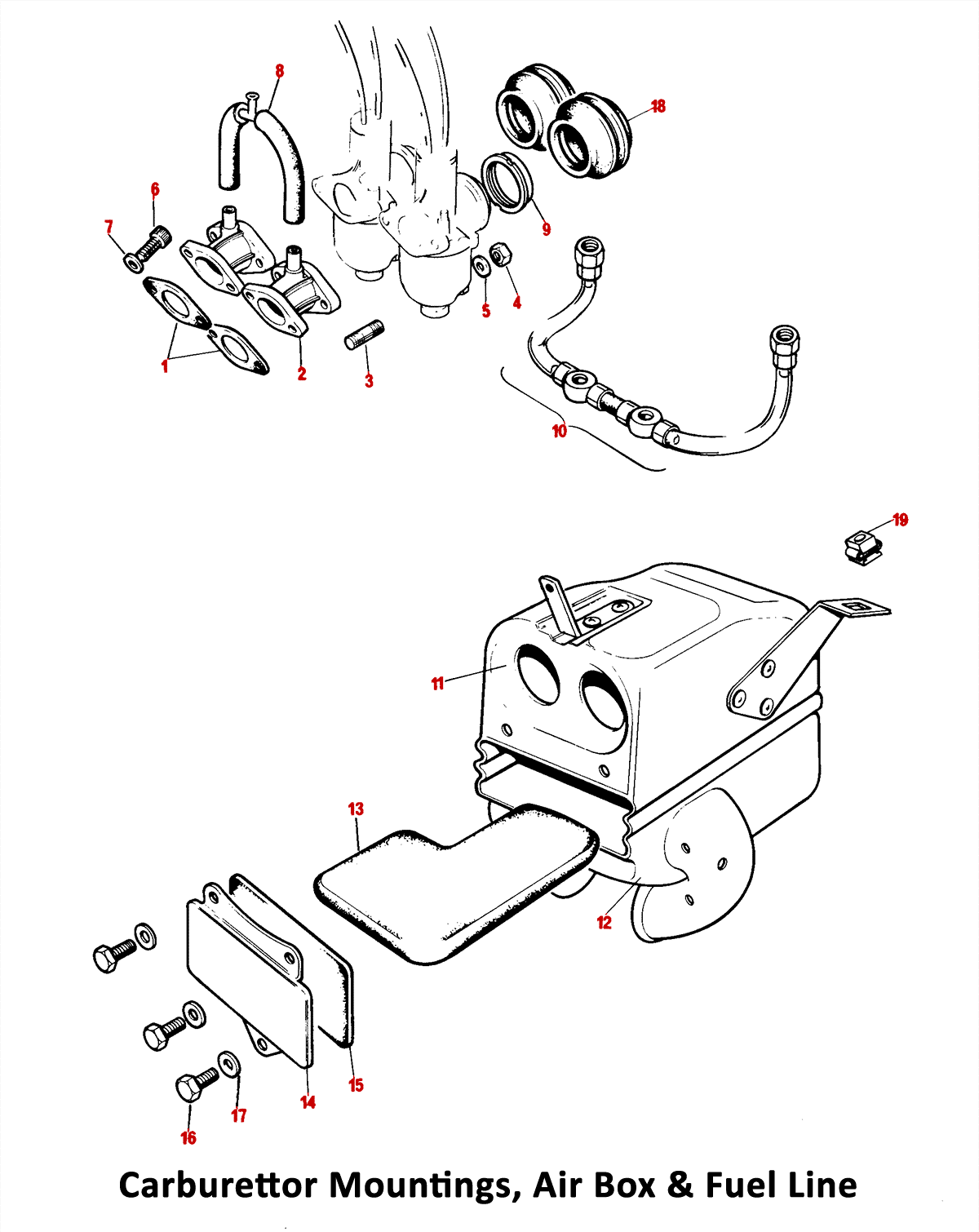

1975 Norton Commando Mk3 Carburettor Mountings
Scroll sideways to view the table completely.
Plate # | Part Name | Part # | Qty Fitted | Description | |
---|---|---|---|---|---|
1 | Carburettor Heat Insulator | 063458 | 2 | 32mm, 1.6mm thick. | View |
2 | Inlet Manifold | 062711 | 2 | 32mm, curved. | View |
3 | Carburettor Stud | 060577 | 4 | Carburettor to inner manifold. | View |
4 | Carburettor Stud Nut | 140302 | 4 | 5/16" UNF. | View |
5 | Carburettor Stud Washer | 602418 | 4 | 5/16" spring washer. | View |
6 | Carburettor Fixing Screw | 062536 | 4 | 5/16" Whitworth x 1" long socket screw. | View |
7 | Carburettor Fixing Screw Washer | 11796 | 4 | 5/16" plain, small OD, thin. | View |
8 | Inlet Manifold Balance Pipe Hose | 065316 | 2 | View | |
9 | Air Filter Adaptor Sleeve | 033027 | 2 | Carburettor to gaiter. | View |
10 | Fuel Line Assembly | 065192 | 2 | Complete, cross over type. | View |
11 | Airbox | 066322 | 1 | Not available. | |
12 | Venturi Intake Air Hose | 064839 | 2 | For plastic filter. | View |
13 | Air Filter Element | 064536 | 1 | Foam type, ethanol proof. | View |
14 | Airbox Cover Plate | 064133 | 1 | Not available. | |
15 | Airbox Front Cover Seal | 064174 | 1 | View | |
16 | Bolt | 060677 | 3 | 3/16" UNF x 1/2" long. | View |
17 | Washer | 067802 | 3 | Serrated 3/16". | View |
18 | Carburettor to Air Filter Gaiter | 064180 | 2 | For plastic filter. | View |
19 | Side Panel Fastener Receptacle | 064066 | 1 | View |
