Gear Box Rebuild Kit 4 Speed Triumph 650cc, T120, TR6

Original price was: $450.00.Current price is: $435.00. In-Stock

We have assembled this comprehensive kit to provide the engine builder with all of the necessary wear-prone replacement parts normally required when rebuilding a unit-construction Triumph 650 4-speed gearbox.

Bearings, oil seals, bushings, thrust washers, springs, and tab washers are among the replacement parts supplied in this gearbox rebuild kit. We source the majority of the included parts from our suppliers in the UK.

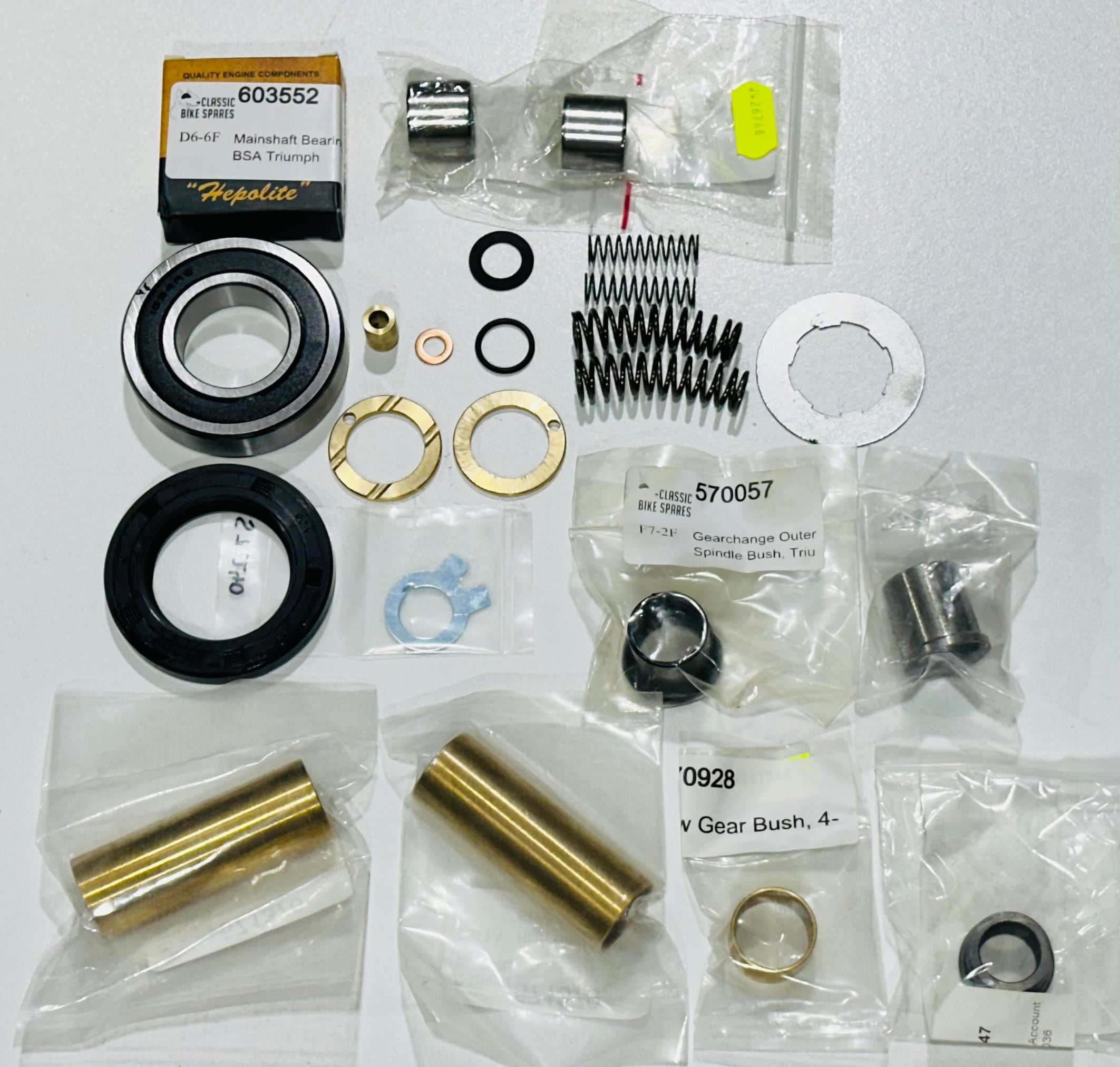

Spares included in this kit are:

  • 1 – 57-0448 High Gear Bearing
  • 1 – 60-3552 Main Shaft Bearing
  • 2 – 57-1607 Thrust Washers
  • 1 – 57-1606 Layshaft Bearing (closed)
  • 1 – 57-1614 Layshaft Bearing (open)
  • 1 – 57-3988 Clutch Pushrod Bushing
  • 1 – 57-1370 High Gear Bushing
  • 1 – 57-0928 Low Gear Bushing
  • 1 – 57-0057 Outer Gearchange Spindle Bushing
  • 1 – 57-0023 Kickstarter Spindle Bushing
  • 1 – 57-2116 Countershaft Sprocket Tab Washer
  • 1 – 57-2240 Main Shaft Tab Washer
  • 2 – 57-0404 Shift Quadrant Return Springs
  • 2 – 57-0405 Shift Plunger return Springs
  • 1 – 57-3661 Camplate Index Plunger Spring
  • 1 – 57-0946 High Gear Oil Seal
  • 1 – 70-3309 Shifter Spindle O-ring
  • 1 – 57-1956 Kickstarter Spindle Oil Seal
  • 1 – 70-4578 Cover Plate Oil Seal (early)
  • 1 – 70-7565 Cover Plate oil Seal (late)
  • 1 – 57-1257 Fiber Washer
  • 1 – 57-3978 Index Plunger Washer
  • 2 – TBS-0560231 Camplate Quadrant Spindle Split Pins 5/64” x 1-3/8”

Fits- Triumph 650 4-speed gearbox



Our Number- RBK4Speed
