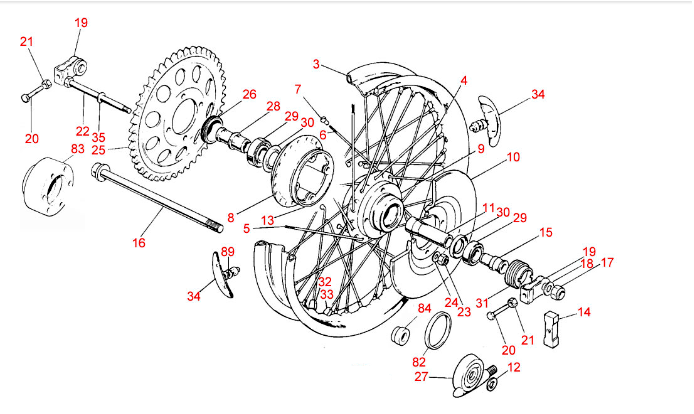

1977 T140 Rear Wheel Disc Brake

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
3	Wheel rim 3x18x40	37-7018	1	Chrome	$316.00	View
3	Wheel rim 3x18x40	37-7018	1	Stainless Steel
4/5/6/7	Spoke Set	--	1 Set		$119.00	View
4/5/6/7	Spoke Set	--	1 Set	Devon Spokes Made in England	$215.00	View
8	Hub, rear, Left hand part	37-7001	1
9	Rear hub, Right half	37-7002	1
10	Brake disc, four hole	37-4275	1
10	Brake disc, four hole Floating	37-4275	1	Girling Floating Disc	$387.00	View
11	Bearing spacer tube	37-7005	1		$25.00	View
12	Spacer washer	37-7021	1	5/8 x 1-3/4 x 1/8
13	Centre Spacer	37-7010	1
14	Cover plate, fork end	83-3082	2		$5.90	View
15	Spacer	37-7003	1		$27.01	View
16	Rear Spindle	37-3965	1
17	Spindle Nut	14-1307	1		$5.80	View
18	Rear Spindle Washer	83-2266	1		$1.71	View
19	Chain adjuster bracket	37-3742	2		$8.60	View
20	Bolt 1/4 UNF x 1-1/2	14-0107	2		Original price was: $3.60.Current price is: $2.92.	View
21	Nut, 1/4 UNF	14-0301	2		$0.55	View
22	Bolt	21-7005	--
23	Locking NUT, 3/8 UNF thin	14-1903	4		$1.55	View
24	Washer 3/8 x 5/8 x 1/16 A10 Alloy Head	70-8770	4		$1.05	View
25	Rear sprocket with boss, 47T	37-7016	1		$91.00	View
26	Rear wheel lockring	37-4134	1		$31.00	View
27	Speedo Gearbox	60-3213	1	Speedo gearbox 1.25:1 with 5/8″ hole	$136.00	View
28	Spacer, left hand hub	37-7006	1		$31.00	View
29	Bearing	57-1070	2		$9.80	View
30	Retainer	37-4135	2		$4.15	View
31	Lock Ring	37-7004	1		$35.00	View
32	Wheel balance weight 1/2oz	37-3969	--		$2.75	View
33	Balance Weight	37-3970	--		$3.50	View
34	Security Bolt	37-3468	2		$13.00	View
35	Washer	70-8770	4		$1.05	View
