Cylinder Barrel and Cylinder Head

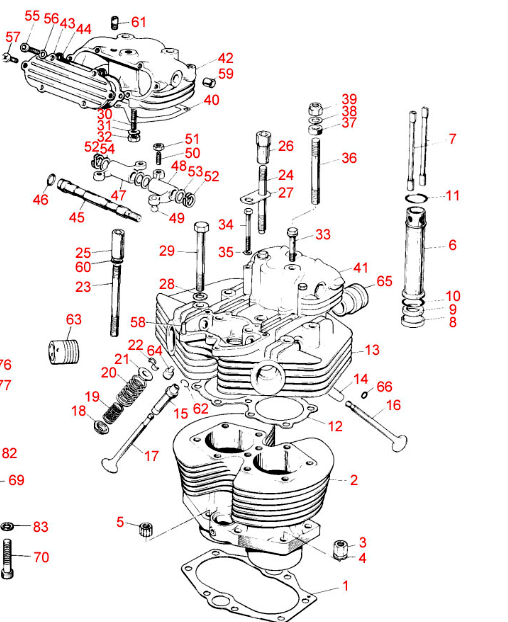

triumph T140V 1977 Barrel and Head- Classic bike Spares

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Cylinder Base Gasket	70-6309	1		$7.90	View
1	Cylinder Base Gasket Copper	70-6309	1
2	Cylinder Block	71-4005	1	Cylinder barrel, 10 Stud, With Oil Hole		View
3	Hex Nut	21-2177	4	Long Reduced- 5/16 UNF	$3.36	View
4	Washer, Engine Mount Rear	70-3446	4
5	12 point Hex Nut,	21-0692	4	Cylinder base Nut 3/8 UNF	$3.10	View
6	Pushrod Tube	71-3329	2		$55.00	View
7	Engine Pushrod	71-3330	4		$18.00	View
8	Pushrod Tube Seal Collar	71-1707	2		$4.70	View
9	Pushrod Seal	70-4752	2		$3.40	View
10	O'ring top	70-7310	2		$2.15	View
11	O'ring Bottom	71-1283	2		$2.45	View
12	Head Gasket	71-3681	1	STD thickness 0.040"	$52.00	View
13	Cylinder Head	71-7007	1
14	Valve Guide	71-3294	2	Valve Guides Available in Oversize +0.002", +0.004", +0.006"		View
15	Valve Guide	71-3295	2	Valve Guides Available in Oversize +0.002", +0.004", +0.006"	$31.00	View
16	Valve	70-4603	--	hepolite	$57.00	View
17	Valve	70-2904	2		$57.00	View
18	Collar	71-3296	4		$15.00	View
19	Valve Spring	70-4221	4		$57.00	View
21	Top Collar	70-1543	4		$16.01	View
22	Split collar	71-3748	8		$5.60	View
23	Head Stud 3/8"	21-2201	4		Original price was: $23.00.Current price is: $19.80.	View
24	Head Stud 5/16"	21-2200	2		$11.00	View
25	Socket Nut 3/8"	21-2204	4		$9.90	View
26	Socket Nut	21-2005	2		$13.00	View
27	Plate	71-3553	1		$7.00	View
28	Washer	82-2184	8	Later 1977 Bikes used 4 Washers only
29	HT Bolt 3/8"	14-0241	4		$1.25	View
30	Stud	14-1401	6		$4.10	View
31	Washer	70-3302	6		$0.45	View
32	Nut	14-0301	6		$0.55	View
33	Rocker Box Bolt	21-2206	4
34	Rocker Box Bolt	21-1875	4		$3.55	View
35	Washer rocker box	60-4248	4			View
36	Stud 3/8"	21-2197	2		$4.10	View
37	Washer 3/8"	37-2338	2
38	Washer	60-2331	2		$0.25	View
39	Nyloc Nut	14-1303	2		$1.45	View
40	Rocker Box gasket	71-2599	2	Sold EA		View
41	Inlet Rocker Box	71-3668	1
42	Exhaust Rocker Box	71-3669	1
43	Rocker inspection Cover	71-3671	2	6 hole	$35.00	View
44	Rocker Inspection Gasket	71-3673	2	6 Hole	$4.10	View
45	Rocker Shaft	71-3549	2
46	Rocker shaft O'ring	60-3548	2		$1.10	View
47	Valve Rocker right	70-1457	2
48	Rocker Arm CEI	70-1458	2
49	Rocker Ball Pin	71-0070	4		$23.00	View
50	Tappet Adjuster	70-1513	4		Original price was: $15.00.Current price is: $14.85.	View
50	UNF Mushroom Adjuster	70-1513A	4		$15.00	View
51	Nut	70-0470	4		$2.20	View
52	Rocker Spindle Spring Washer	70-1574	4		$3.80	View
53	Rocker Thrust Washer	70-1575	6		$1.80	View
54	Rocker Spindle Washer	70-1330	2		$1.38	View
55	Set Screw	14-6103	4	use 8 Screws on Later 1977 Models
56	Washer	60-3963	12			View
57	Case Screws	14-6606	4 or 8		$2.90	View
58	Rocker Box Dowel Pin	71-2361	4
59	Bush	70-3135	2
60	Washer	71-2598	4		$1.71	View
