Cylinder head, Barrel & Pushrods

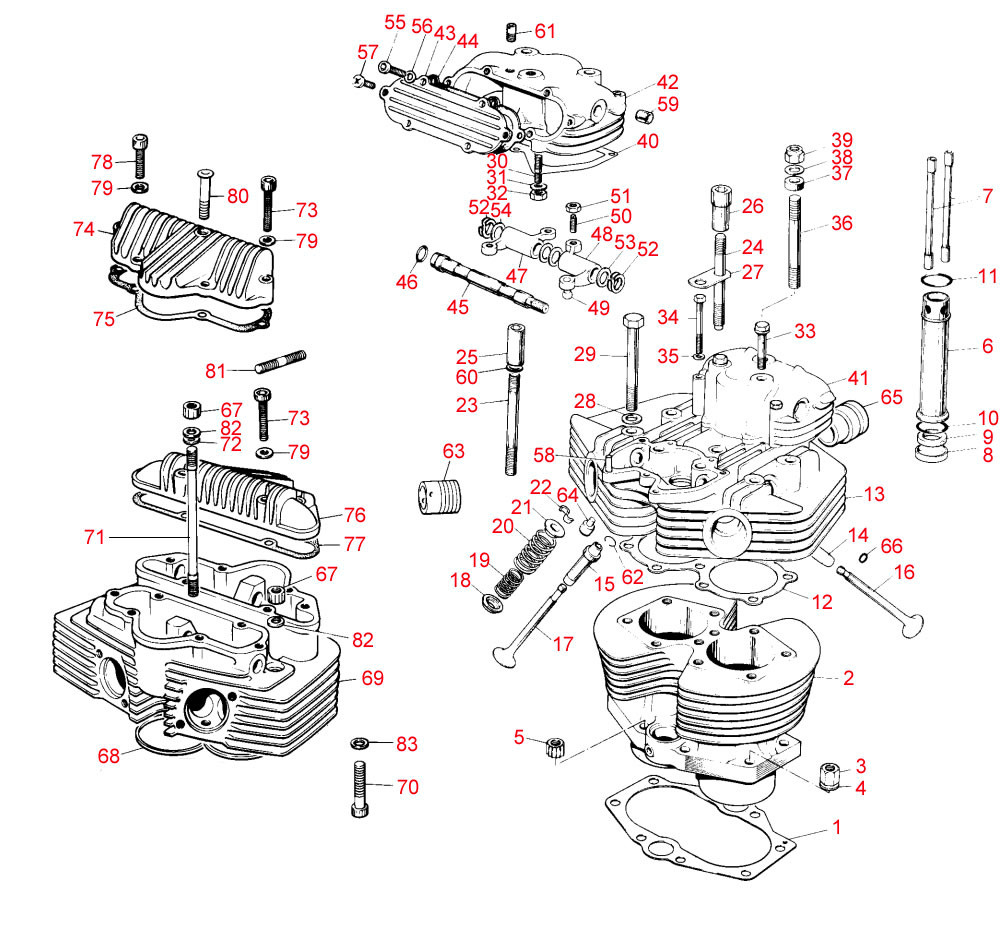

Triumph T140 Cylinder head Diagram - Classic Bike Spares

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Cylinder base gasket	70-6309	1	1973-83 T140 Models	$7.90	View
2	Cylinder Barrel 10 Stud, With Oil Hole	71-4005	1	1974-80 T140 Models		View
2	Cylinder Barrel 10 Stud, Without Oil Hole	71-4006	1	1981-85 T140 Models
3	Long reduced hex nut, 5/16 UNF	21-2177	4	1973-85 T140 Models	$3.36	View
4	Washer, Engine mount rear	70-3446	4	1973-85 T140 Models	$1.20	View
5	12 sided nut, cylinder base, 3/8 UNF	21-0692	4	1973-85 T140 Models	$3.10	View
6	Pushrod tube	71-3329	2	1973-78 T140 Models	$55.00	View
6	Pushrod tube	71-7179	2	1979 ONLY T140 Model
6	Pushrod tube	71-7191	2	1980-85 T140 Models	$52.00	View
7	Engine pushrod	71-3330	4	1973-85 T140 Models	$18.00	View
8	Pushrod tube seal collar	71-1707	2	1973-79 T140 Models	$4.70	View
8	Sleeve	71-7196	2	1980-85 T140 Models	$4.51	View
9	Push rod seal	70-4752	2	1973-79 T140 Models	$3.40	View
10	Top O'ring	70-7310	2	1973-79 T140 Models
10	Bottom O'ring	71-1283	2	1980-85 T140 Models	$2.45	View
11	Bottom O'ring	71-1283	2	1973-85 T140 Models	$2.45	View
12	Cylinder head Gasket Copper	71-3681	1	1973-77 T140 Models	$52.00	View
12	Cylinder head Gasket Copper Thick	71-3681	1	1973-77 T140 Models 0.080" Oversized Gasket for Shaved Heads	$66.00	View
12	Head gasket Composite	71-4619	1	1978-85 T140 Models	$29.00	View
13	Cylinder head	71-7046	1	1979-81 T140 Models
14	Inlet Valve Guide Avaliable OverSized	71-3294	2	1973-79 T140 Models	$34.00	View
14	Inlet Valve Guide	71-7201	2	1980-83 T140 Models	$34.00	View
15	Exhaust Guides Available Oversized	71-3295	2	1973-79 T140 Models	$31.00	View
15	Exhaust guide	71-7202	2	1980-83 T140 Models	$34.00	View
16	Inlet valve	70-4603	2	1973-85 T140 Models	$57.00	View
17	Exhaust Valve	70-2904	2	1973-85 T140 Models	$57.00	View
18	Collar	71-3296	4	1973-79 T140 Models	$15.00	View
18	Cup	71-7203	4	1980-85 T140 Models	$12.00	View
19	Valve spring Set	70-4221	1 Set	1973-85 T140 Models	$57.00	View
20	Valve spring Set	70-7400	1 Set	1973-85 T140 Models	$57.00	View
21	Valve top collar	70-1543	4	1973-85 T140 Models	$16.01	View
22	Split collet	71-3748	8	1973-85 T140 Models	$5.60	View
23	Cylinder head Stud 3/8"	21-2201	4	1973-85 T140 Models	Original price was: $23.00.Current price is: $19.80.	View
24	Head stud 5/16 UNF x 3-1/2	21-2200	2	1973-85 T140 Models	$11.00	View
25	Socket nut, 3/8	21-2204	4	1973-85 T140 Models	$9.90	View
26	Socket nut	21-2205	2	1973-85 T140 Models	$13.00	View
27	Plate	71-3553	1	1973-85 T140 Models	$7.00	View
28	Washer	82-2184	4	1973-85 T140 Models	$1.71	View
29	High tensile bolt, 3/8 UNF x 3-1/2	14-0241	4	1973-85 T140 Models	$1.25	View
30	Stud, 1/4 UNF/C x 1″	14-1401	6	1973-85 T140 Models	$4.10	View
31	Washer 1/4 x 15/32 x 1/64	70-3302	6	1973-85 T140 Models	$0.45	View
32	Nut, 1/4 UNF	14-0301	6	1973-85 T140 Models	$0.55	View
33	Rocket box bolt	21-2206	4	1973-85 T140 Models	$11.00	View
34	Rocket box bolt, 1/4 Whit x 2-1/4	21-1875	4	1973-85 T140 Models	$3.55	View
35	Washer, rockerbox 1/4 x 15/32 x 1/16	60-4248	4	1973-85 T140 Models		View
36	Stud, 3/8 UNF/UNC x 1-3/8	21-2197	2	1973-85 T140 Models	$4.10	View
37	Washer 3/8 x 7/8 x 1/8	37-2338	2	1973-85 T140 Models	$0.40	View
38	Washer	60-2331	2	1973-85 T140 Models	$0.25	View
39	3/8 UNF Nyloc nut	14-1303	2	1973-85 T140 Models	$1.45	View
40	Rocker box gaskets Sold as a Single	71-2599	2	1973-85 T140 Models	$7.80	View
41	Rocker Box Inlet	71-3668	1	1973-85 T140 Models
42	Rocker Box Exhaust	71-3669	1	1973-85 T140 Models
43	Rocker Inspection Cover - 6 Bolt	71-3671	2	1973-81 T140 Models	$35.00	View
44	Rocker inspection gasket	71-3673	2	1973-85 T140 Models	$4.10	View
45	Rocker shaft	71-3549	2	1973-85 T140 Models
46	Rocker Spindle o'ring	60-3548	2	1973-85 T140 Models	$1.10	View
47	Valve rocker right	70-1457	2	1973-78 T140 Models
47	Rocker arm, right exhaust, left inlet UNF	71-7044	2	1978-82 T140 Models
48	Valve rocker Left	70-1458	2	1973-78 T140 Models
48	Rocker arm, left exhaust, left inlet UNF	71-7043	2	1978-82 T140 Models
49	Rocker ball pin	71-0070	4	1973-85 T140 Models	$23.00	View
50	Tappet adjuster	70-1513	4	1973-78 T140 Models	Original price was: $15.00.Current price is: $14.85.	View
50	Adjuster, tappets	71-7045	4	1978-82 T140 Models	$4.46	View
51	Half nut 5/16 UNF	14-0402	4	1979-85 T140 Models	$1.60	View
52	Rocker spindle spring washer	70-1574	4	1973-85 T140 Models	$3.80	View
53	Rocker thrust washer	70-1575	6	1973-85 T140 Models	$1.80	View
54	Rocker spindle washer	70-1330	2	1973-85 T140 Models	$1.38	View
55	Allen screw 1/4UNCx3/4	14-7004	8	1979-85 T140 Models	$1.45	View
56	Washer	60-3963	12	1979-85 T140 Models		View
57	Allen screw 1/4UNCx3/4	14-7004	--	1979-85 T140 Models	$1.45	View
58	Rocker box dowel pin	71-2361	4	1976-85 T140 Models
59	Bush	70-3135	2	1976-77 t140 Model
60	Washer	71-2598	4	1973-83 T140 Models	$1.71	View
61	Connector	71-3313	1	1979-83 T140 Models
62	Valve guide circlip	70-3209	4	1980-85 T140 Models	$1.75	View
63	Exhaust stub	70-9516	2	1981-85 T140 Models	$24.00	View
64	Valve Seal	60-7363	2	1981-85 T140 Models	$2.85	View
