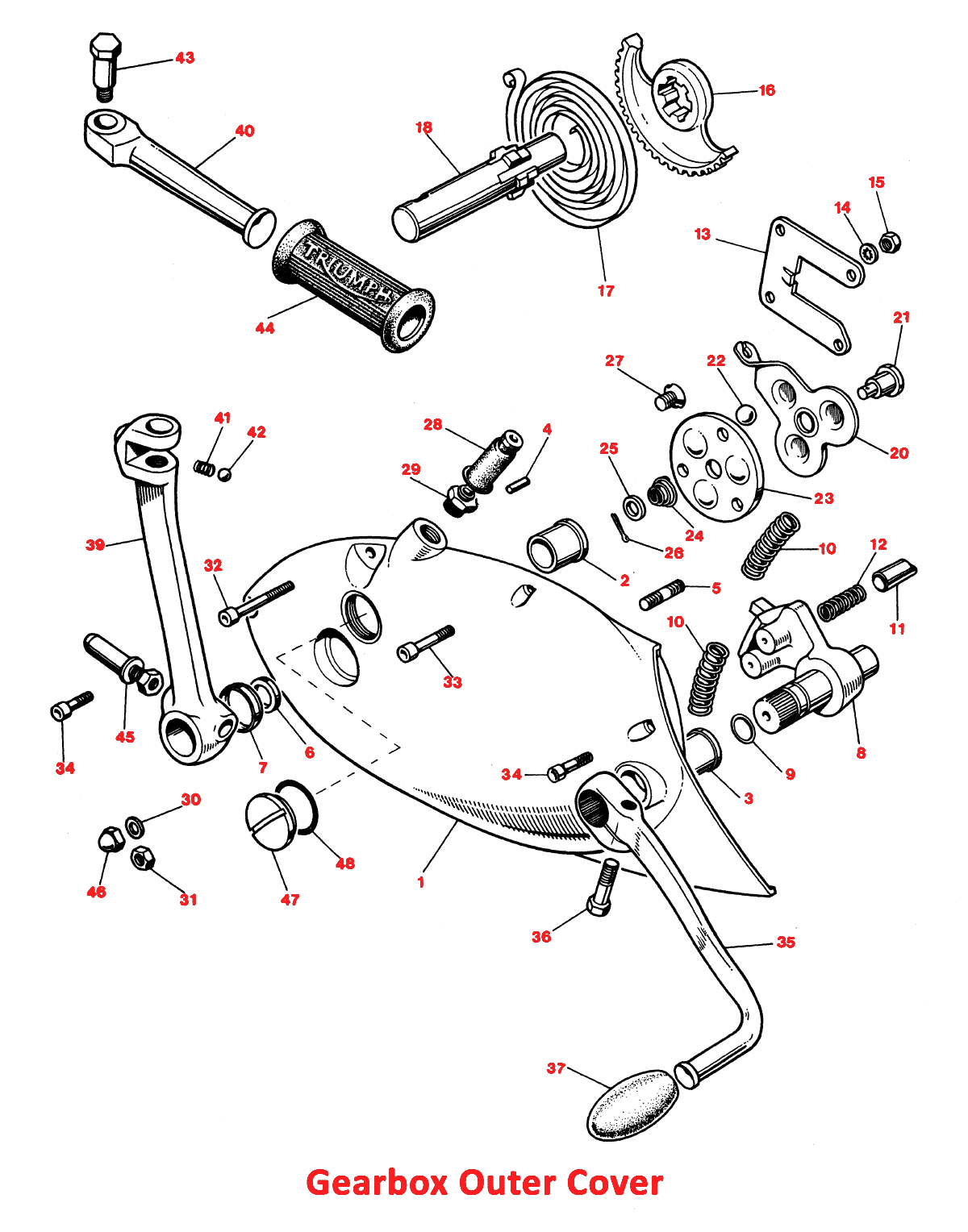

HomeMake: Triumph1977 Triumph 750 Twins T140V, TV7RVGearboxGearbox outer Cover
| Plate # | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|
| 1 | Gear Box Cover | 57-7014 | 1 | |||
| 2 | Kick Start Spindle Bush | 57-0023 | 1 | $24.00 | View | |
| 3 | Foot- Change Spindle Bush | 57-0057 | 1 | |||
| 4 | Pin | 57-0047 | 1 | $0.45 | View | |
| 5 | Stud | 21-0547 | 4 | View | ||
| 6 | Kick Start spindle Oil Seal | 57-1956 | 1 | $4.05 | View | |
| 7 | Housing | 57-1955 | 1 | |||
| 8 | Gear Change Quadrant | 57-7007 | 1 | |||
| 9 | O'ring | 60-3530 | 1 | |||
| 10 | Gear Change Return Spring | 57-0404 | 2 | $4.70 | View | |
| 11 | Plunger 5 Speed | 57-4403 | 2 | $25.00 | View | |
| 12 | Gear Change return Spring | 57-0405 | 2 | $4.60 | View | |
| 13 | Plate | 57-0407 | 1 | $44.00 | View | |
| 14 | Shake Proof Washer | 70-1612 | 4 | $0.45 | View | |
| 15 | Nut | 14-0301 | 4 | $0.55 | View | |
| 16 | Kick Start Quadrant | 57-4117 | 1 | $112.00 | View | |
| 17 | Kick Start Spring | 57-0031 | 1 | $16.01 | View | |
| 18 | Kickstart Shaft | 57-4756 | 1 | $69.00 | View | |
| 19 | Clutch Lever Assembly | 57-4587 | 1 | $52.00 | View | |
| 20 | clutch Operating Lever | 57-4588 | 1 | $9.00 | View | |
| 21 | Pin | 57-1710 | 1 | $9.45 | View | |
| 22 | 3/8 Steel Ball | 60-2368 | 3 | $0.66 | View | |
| 23 | Thrust Plate | 57-4589 | 1 | $21.00 | View | |
| 24 | Spring | 57-1712 | 1 | $2.45 | View | |
| 25 | Clutch Lever Washer | 57-3673 | 1 | View | ||
| 26 | Split pin | S17-34Q | 1 | |||
| 27 | Screw | 21-1879 | 2 | $0.90 | View | |
| 28 | Cable Grommet | 57-1646 | 1 | $4.99 | View | |
| 29 | Adapter | 57-3762 | 1 | $8.90 | View | |
| 30 | Washer | 60-4247 | 1 | |||
| 31 | Nut | 14-0302 | 1 | $0.30 | View | |
| 32 | Case Screw | 21-2162 | 2 | |||
| 33 | Case Screw | 14-6609 | 2 | $3.75 | View | |
| 34 | Case Screw | 14-6608 | 1 | $2.70 | View | |
| 35 | Gear Change Lever | 57-3757 | 1 | $69.00 | View | |
| 36 | Bolt | 14-0201 | 1 | $1.00 | View | |
| 37 | Gear Change Lever Rubber | 57-2450 | 1 | $4.15 | View | |
| 38 | Folding Kickstart Assembly | 57-7018 | 1 | $88.00 | View | |
| 39 | Kick Start Crank | 57-2173 | 1 | |||
| 40 | Kick Start Pedal | 57-7017 | 1 | |||
| 41 | Kick Start Pedal Spring | 57-1167 | 1 | $1.20 | View | |
| 42 | 1/4 Ball | 60-2364 | 1 | $0.50 | View | |
| 43 | Kickstart Pedal Bolt | 21-0541 | 1 | $8.90 | View | |
| 44 | Kick Start Rubber | 57-2330 | 1 | $4.65 | View | |
| 45 | Cotter pin | 57-4356 | 1 | $6.05 | View | |
| 46 | Dome Nut | 21-0544 | 1 | Original price was: $8.40.$6.71Current price is: $6.71. | View | |
| 47 | Inspection Cap | 57-2166 | 1 | $12.00 | View | |
| 48 | O'ring | 70-8782 | 1 | $1.85 | View |
