HomeMake: Triumph1968-75 Triumph 750 Triples T150 & T160Suspension, Wheels & BrakesRear Disc brake T160

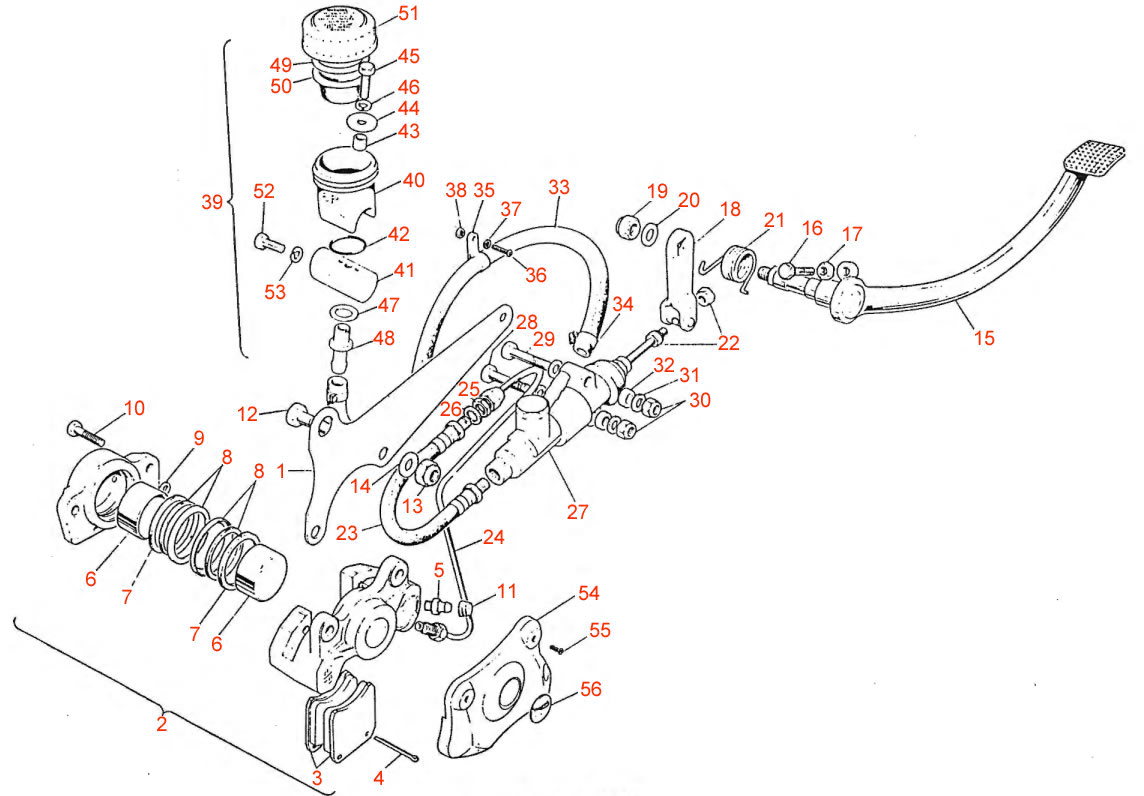

| Plate # | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|
| 1 | Anchor Plate | 83-5230 | 1 | |||
| 2 | Caliper | 60-4101 | 1 | $389.00 | View | |
| 3 | Brake Pad Set | 4741-570 | 1 | $43.00 | View | |
| 4 | Retaining Pin | K19866CP | 2 | |||
| 5 | Bleed Nipple | 28696 | 1 | N/A | ||
| 6 | Caliper Piston Stainless | 99-2765 | 2 | $45.10 | View | |
| 7-9 | Piston Seal Kit | Kit | 1 | $32.00 | View | |
| 10 | Bolt | 3437-307 | 2 | |||
| 11 | Bleed Nipple Cover | 60-4266 | 1 | $3.36 | View | |
| 12 | Rear Caliper Bolt | 21-2330 | 2 | $9.70 | View | |
| 13 | Locknut | 14-1203 | 2 | $2.85 | View | |
| 14 | Washer, anchor Plate | 60-2340 | 2 | $0.25 | View | |
| 15 | Rear Brake Pedal | 83-5704 | 1 | |||
| 16 | Set Screw | 14-0103 | 1 | $0.55 | View | |
| 17 | Clutch Push Rod | 14-0401 | 1 | $0.80 | View | |
| 18 | Brake Lever | 83-5401 | 1 | |||
| 19 | Lock Nut | 14-1303 | 1 | $1.45 | View | |
| 20 | Washer | 60-2322 | 1 | $0.30 | View | |
| 21 | Return Spring Brake Pedal | 83-5366 | 1 | |||
| 22 | Adjuster Nut | 21-2243 | 2 | |||
| 23 | Hose | 60-4414 | 1 | $62.00 | View | |
| 24 | Pipe | 60-4415 | 1 | $35.00 | View | |
| 25 | Nut | 60-4180 | 1 | $0.30 | View | |
| 26 | Washer | 70-2288 | 1 | $0.30 | View | |
| 27 | Master Cylinder | 60-4401 | 1 | $285.00 | View | |
| 28 | Set Screw | 14-0120 | 1 | |||
| 29 | Bolt | 14-0121 | 1 | |||
| 30 | Locking Nut | 14-1302 | 2 | $2.00 | View | |
| 31 | 5/16 Washer | 60-2330 | 4 | $0.45 | View | |
| 32 | Spacer- Stainless Steel | 82-9092 | 2 | $4.50 | View | |
| 33 | Hose, Rear master Cylinder to Reservoir | 60-4409 | 1 | $18.00 | View | |
| 34 | Hose Clip | 60-4580 | 2 | $2.55 | View | |
| 35 | Hose Clip | 60-4581 | 2 | |||
| 36 | Screw, Hose Clip | 21-2332 | 2 | |||
| 37 | Serrated Washer | 60-4584 | 2 | |||
| 38 | Nut | 21-2333 | 2 | |||
| 39 | Reservoir Assembly | 83-5465 | 1 | $119.00 | View | |
| 40 | Brake Master Cylinder | 60-4397 | 1 | $21.00 | View | |
| 41 | Hydraulic Reservoir Mounting | 83-5466 | 1 | |||
| 42 | O"Ring | 60-4374 | 1 | $2.40 | View | |
| 43 | Distance Piece | 60-4398 | 1 | $2.30 | View | |
| 44 | Washer | 60-4399 | 1 | |||
| 45 | Bolt | 14-0102 | 1 | $0.85 | View | |
| 46 | Spring Washer | 60-2427 | 1 | $0.30 | View | |
| 47 | Sealing Washer | 60-4597 | 1 | |||
| 48 | Outlet Stub | 83-5467 | 1 | |||
| 49 | Washer | 60-4328 | 1 | $2.10 | View | |
| 50 | Diaphram Master | 60-4366 | 1 | $13.00 | View | |
| 51 | Master cylinder reservoir cap | 60-4365 | 1 | $24.00 | View | |
| 52 | Bolt | 14-0102 | 1 | $0.85 | View | |
| 53 | Spring Washer | 60-2427 | 1 | $0.30 | View | |
| 54 | Caliper Cover Chrome | 37-4263 | 1 | View | ||
| 55 | Screw | 21-2335 | 2 | $1.35 | View | |
| 56 | Decal, Caliper | 60-4156 | 1 | $2.26 | View |
