Home>Make: Triumph>1968-75 Triumph 750 Triples T150 & T160>Suspension, Wheels & Brakes>Rear Wheel

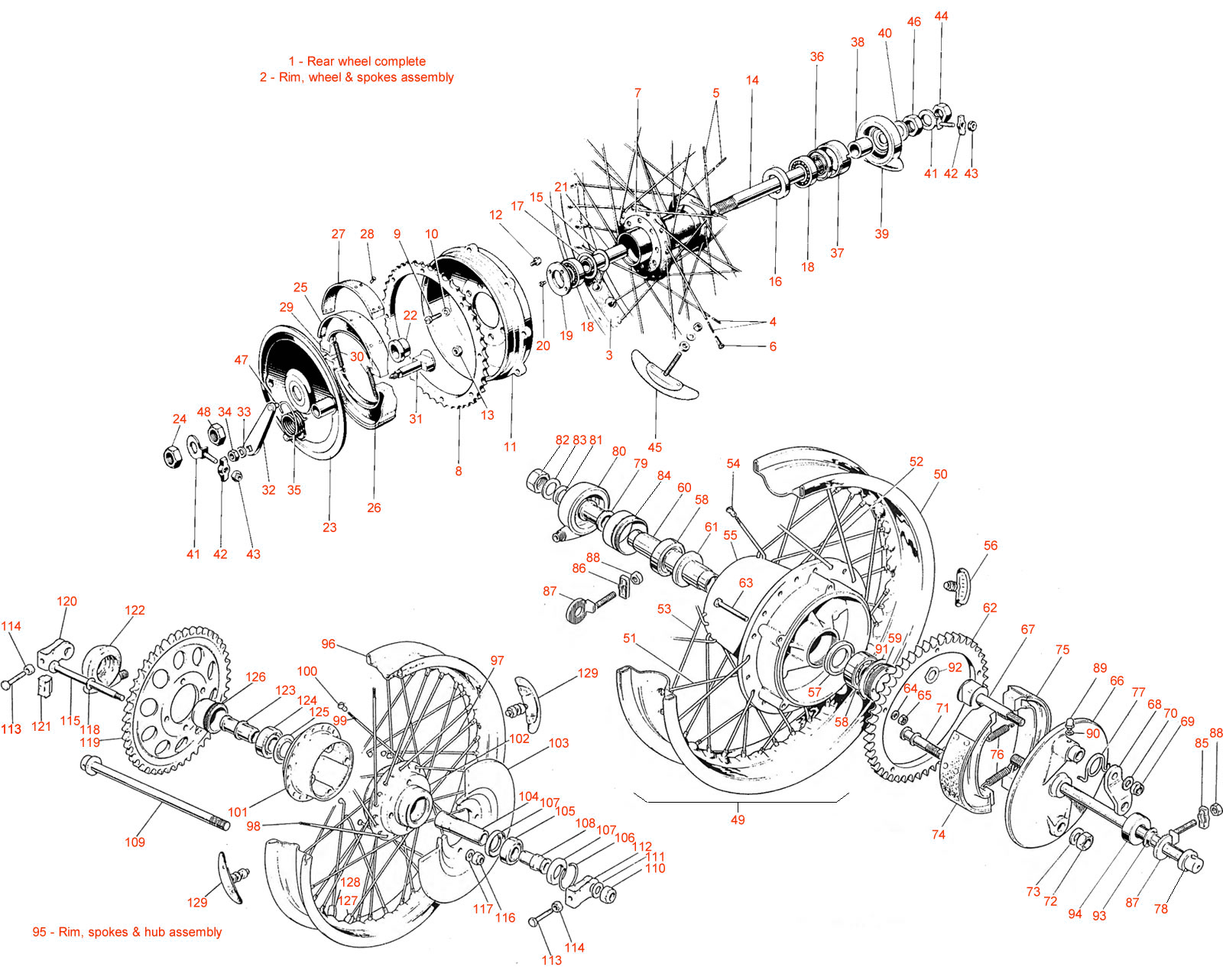

Rear Wheel

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Rear wheel Complete	--	1	Model Specific, Check your Manual
2	Rim, Spokes & Hub Assembly	--	--	Model Specific, Check your Manual
3	Wheel Rim Chrome	37-0270A	1	1968-70 T150 Model	Original price was: $420.00.Current price is: $365.00.	View
4- 6	Spoke Set	37-1104	1 Set	1968-70 T150 Model
7	Hub	37-1472	--	1968-70 T150 Model
8	Ring Sprocket	37-3411	1	1968-70 T150 Model
9	Drum Brake Bolts	21-2010	8	1968-69 T150 Model	$4.25	View
10	Washer	70-1612	8	1968-70 T150 Model	$0.45	View
11	Rear brake Drum	37-1498	1	1968-69 T150 Model
11	Rear Brake Drum	37-3585	1	1970 T150 Model	$139.00	View
12	Hub Bolts	21-2011	8	1970 T150 Model
12	Hub Bolts	37-1690	8	1968-69 T150 Model	$7.00	View
13	Locking Nut	14-1202	8	1970 T150 Model	$0.55	View
13	Castle Lock Nut	37-1691	8	1968-69 T150 Model	$8.90	View
14	Spindle, Rear Wheel CEI	37-1281	1	1968-69 T150 Model	$57.00	View
14	Spindle, Rear Wheel UNF	37-3589	1	1970 T150 Model
15	Retainer	37-1474	1	1968-70 T150 Model	$3.91	View
16	Grease Retainer	37-1654	1	1968-70 T150 Model	$4.90	View
17	Bearing Back Ring	37-1022	1	1968-70 T150 Model	$4.55	View
18	Bearing	37-0653	2	1968-70 T150 Model	$8.90	View
19	Hub Lock Ring	37-1021	1	1968 T150 Model		View
19	Lock Ring	37-3587	1	1970 T150 Model
19	Retaining Ring	99-0057	1	1969 T150 Model
20	Locking Screw	37-1710	1	1968-70 T150 Model	$3.00	View
21	Spacer	37-1024	1	1968-70 T150 Model	$7.40	View
23	Rear Brake Plate, Bolt up Hub	37-1112	1	1968-69 T150 Model
24	Engine Sprocket	21-0585	1	1970 T150 Model
24	Spindle Nuts	37-3426	1	1968 T150 Model	$4.60	View
24	Wheel Spindle Nut	82-1747	1	1969 T150 Model	$14.00	View
25-29	Brake Shoes	37-1406	1	1968-70 T150 Model	$67.00	View
30	Brake Shoe Spring	37-0135	2	1968-70 T150 Model	$4.80	View
31	Rear Brake Cam	37-1083	1	1968-69 T150 Model	$89.00	View
31	Rear Brake Cam	37-3592	1	1970 T150 Model	$64.00	View
32	Brake Lever	37-2015	1	1968-70 T150 Model	$27.01	View
33	Plain Washer	S25-6	1	1968-70 T150 Model	$0.80	View
34	Half Lock Nut	14-0403	1	1968-70 T150 Model	$0.30	View
35	Lever Return Spring	37-1090	1	1968-70 T150 Model	$15.00	View
36	Retainer	37-1635	1	1968-70 T150 Model	$18.00	View
37	Speedo Drive Ring	37-1476	1	1968-69 T150 Model	$45.00	View
37	Speedo Drive Lock ring	37-3588	1	1970 T150 Model	$35.00	View
38	Spacer, Speedo Drive	37-1477	1	1968-70 T150 Model	$7.40	View
39	Speedo Drive 2:1 3/4 Hole	60-0373	1	1968 T150 Model	$135.00	View
39	Speedo Gearbox	60-0637	1	1968-70 T150 Model
40	Washer	37-1280	1	1968-70 T150 Model
41	Chain adjuster, UNF	37-2089	2	1968-70 T150 Model	$48.00	View
42	Adjuster Cap	37-1015	2	1968-70 T150 Model	$5.01	View
43	Nut for Holding Heatsink	14-0802	2	1968-70 T150 Model
44	Wheel Nut	82-1747	2	1969 T150 Model	$14.00	View
45	Security Bolt	37-3468	2	1968 T150 Model	$13.00	View
46	Rear Spindle Nut	37-3425	1	1968 T150 Model	$4.46	View
46	Spindle Nut	37-3426	2	1969 T150 Model	$4.60	View
47	Brake Rod Pivot Pin	37-1467	1	1968-70 T150 Model		View
48	Rear Spindle Nut	37-3425	1	1969 T150 Model	$4.46	View
48	Spindle Nut	37-3426	1	1968 T150 Model	$4.60	View
49	Complete Wheel	37-3900	1	1971-74 T150 Model
50	Rim WM3 X19"	37-3920	1	1971-74 T150 Model	Original price was: $420.00.Current price is: $365.00.	View
51-54	Spoke Set - Suits 19"	37-3921	1 Set	1971-74 T150 Model
55	Drum & Hub	37-3773	1	1971-73 T150 Model
55	Drum & Hub	37-4179	1	1974 T150 Model
56	Security Bolt	37-3468	2	1971-74 T150 Model	$13.00	View
57	Supporting Ring, Left	37-3749	1	1971-74 T150 Model	$13.50	View
58	Bearing	37-0653	2	1971-74 T150 Model	$8.90	View
59	Locking Ring	37-3752	1	1971-73 T150 Model	$25.00	View
59	Locking Ring Conical Hub	37-4181	1	1974 T150 Model
60	Hub Spacer	37-3753	1	1971-74 T150 Model	$36.00	View
61	Grease Retainer	37-1654	1	1971-74 T150 Model	$4.90	View
62	Ring Sprocket, Conical Hub 53Tooth	37-3903	1	1971-74 T150 Model
62	Ring Sprocket, Conical Hub 50Tooth	37-4046	1	1972-74 T150 Model	$89.00	View
63	Bolt	14-0207	5	1971-74 T150 Model	$1.55	View
64	Washer	60-2320	5	1971-74 T150 Model	$0.30	View
65	Nyloc	14-1301	5	1971-74 T150 Model	$0.75	View
66	Brake Plate	37-3856	1	1971-74 T150 Model
67	Brake Cam	37-3872	1	1971-73 T150 Model	$49.50	View
68	Brake Lever	37-2015	1	1974 T150 Model	$27.01	View
68	Brake Arm	37-3916	1	1971 T150 Model
68	Brake Arm	37-4034	1	1971-72 T150 Model	$33.00	View
69	Nyloc	14-1303	1	1971-73 T150 Model	$1.45	View
70	Washer	60-2331	1	1971-73 T150 Model	$0.25	View
71	Brake Pivot	37-3870	1	1971-74 T150 Model	$5.50	View
72	Nut 1/2 UNF	14-0305	1	1971-74 T150 Model	$0.65	View
73	Spring Washer	60-2431	1	1971-74 T150 Model	$0.35	View
74-76	Brake Shoes	37-3925	1	1971-74 T150 Model	$67.00	View
77	Brake Spring	37-1488	1	1971-74 T150 Model	$19.00	View
78	Wheel Spindle	37-3980	1	1971-74 T150 Model
79	Distance Piece- Speedo Drive	37-3750	1	1971-74 T150 Model	Original price was: $13.00.Current price is: $10.95.	View
80	Speedo Gearbox	60-3213	1	1971-74 T150 Model	$136.00	View
81	Wheel Spacer, Left	37-3901	1	1971-74 T150 Model
82	Spindle Nut	14-1307	1	1971-74 T150 Model	$5.80	View
83	Distance Piece	37-3976	1	1971-74 T150 Model
84	Speedo Ring	37-3751	1	1971-74 T150 Model	$35.00	View
85	Adjuster Cap	37-1015	1	1971-74 T150 Model	$5.01	View
86	Cover Plate	37-3961	1	1971-74 T150 Model
87	Adjuster	37-3919	2	1971-74 T150 Model
88	Locking Nut	14-1902	2	1971-74 T150 Model	$0.55	View
89	Grease Nipple	60-1841	1	1971-74 T150 Model	$2.40	View
90	Washer	WE170	1	1971-74 T150 Model
91	Spacer	37-4180	1	1974 T150 Model	$8.15	View
92	Washer	60-2335	1	1974 T150 Model
93	Wheel Spacer	37-3901	1	1974 T150 Model
94	Rear Wheel Spacer	37-4119	1	1974 T150 Model
95	Complete Wheel	37-4254	1	1975 T160 Model
96	Rim, WM3 X 19	37-4243	1	1975 T160 Model	Original price was: $420.00.Current price is: $365.00.	View
97 -100	Spoke Set 19"	37-4303	--	1975 T160 Model
101	Hub, Left Hub Hand Half	37-4206	1	1975 T160 Model
102	Hub, Right Hand Half	37-4208	1	1975 T160 Model
103	Brake Disc, Four Hole	37-4275	1	1975 T160 Model	$387.00	View
104	Inner Sleeve	37-4214	1	1975 T160 Model	$36.00	View
105	Bearing	37-0653	1	1975 T160 Model	$8.90	View
106	Circlip	57-0280	1	1975 T160 Model	$7.50	View
107	Dust Cover, Rear Hub Wheel Bearing	37-4236	2	1975 T160 Model	$3.30	View
108	Spacer	37-4217	1	1975 T160 Model	$31.00	View
109	Spindle, Rear Wheel	37-4261	1	1975 T160 Model	$61.00	View
110	Spindle	14-1307	1	1975 T160 Model	$5.80	View
111	Rear Spindle Washer	83-2266	1	1975 T160 Model	$1.71	View
112	Chain Adjuster	37-4259	1	1975 T160 Model
113	Bolt	14-0107	2	1975 T160 Model	$0.70	View
114	Nut	14-0301	2	1975 T160 Model	$0.55	View
115	Bolt	37-4272	4	1975 T160 Model
116	Locking Nut	14-1903	4	1975 T160 Model	$1.55	View
117	Washer	70-8770	4	1975 T160 Model	$1.05	View
118	Washer	71-4045	4	1975 T160 Model	$1.60	View
119	Sprocket	37-4209	1	1975 T160 Model
120	Chain Adjuster, Left Hand	37-4362	1	1975 T160 Model
121	Adjuster Plate	83-5870	1	1975 T160 Model
122	Speedo Drive Unit	60-4403	1	1975 T160 Model	$135.00	View
123	Distance Piece	37-4213	1	1975 T160 Model	$36.00	View
124	Bearing	57-1070	1	1975 T160 Model	$9.80	View
125	Retainer	37-4135	1	1975 T160 Model	$4.15	View
126	Speedo Drive Ring	37-4215	1	1975 T160 Model
127	Wheel Balance Weight	37-3969	1	1975 T160 Model	$2.75	View
129	Security Bolt	37-3468	2	1975 T160 Model	$13.00	View
