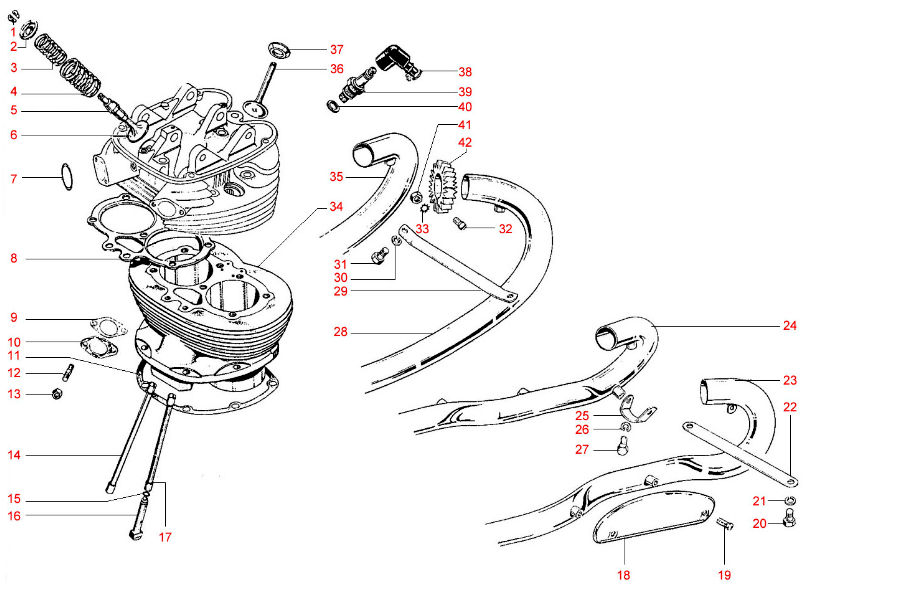

HomeMake: BSABSA A65-1970Engine, Primary Drive & ClutchCYLINDER BARREL
| Plate # | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|
| 1 | Collet | 68-0158 | 4 | Valve cotter. (Collet) | ||
| 2 | VALVE SPRING TOP COLLAR | 68-0166 | 4 | VALVE SPRING TOP COLLAR | ||
| 3 | Valve Spring Set | 68-0805 | 1 Set | Hepolite valve spring set. Includes 4 inner springs and 4 outer springs. | $55.00 | View |
| 4 | Valve Spring Outer | 68-0930 | 4 | Hepolite valve spring set. Includes 4 inner springs and 4 outer springs. | $55.00 | View |
| 5 | Hepolite inlet and exhaust valve guide | 68-0809 | 4 | Hepolite inlet and exhaust valve guide | $31.00 | View |
| 6 | Hepolite inlet valve. | 68-0661 | 2 | Hepolite inlet valve. | $57.00 | View |
| 7 | Carburetter ‘O’ Ring | 19-7108, 244/1048 | 2 | Carburetter ‘O’ Ring | Original price was: $8.31.$7.15Current price is: $7.15. | View |
| 8 | Head Gasket | 68-0828 | 1 | Head Gasket Copper | ||
| 9 | INTAKE MANIFOLD GASKET, 30MM | 65-1417 | 2 | INTAKE MANIFOLD GASKET, 30MM | $2.10 | View |
| 10 | Carburettor insulating spacer | 70-7821 | 2 | Carburettor insulating spacer | $3.55 | View |
| 11 | CYLINDER BASE GASKET | 70-7823 | 1 | CYLINDER BASE GASKET, BSA A65 1970 ON | $6.50 | View |
| 12 | CRANKCASE STUD 5/16, BSA A50 A65 | 680018 | 4 | CRANKCASE STUD 5/16, BSA A50 A65 | $11.00 | View |
| 13 | NYLOC NUT 5/16 CEI | 42-4476 | 4 | NYLOC NUT 5/16 CEI | View | |
| 14 | EXHAUST PUSHROD, LONG, BSA A65 | 68-0372 | 2 | EXHAUST PUSHROD, LONG, BSA A65 | $37.40 | View |
| 15 | CAM FOLLOWER CIRCLIP | 680163 | 4 | CAM FOLLOWER CIRCLIP, BSA A50 A65 1962-72 | $3.10 | View |
| 16 | Tappet | 68-0362 | 4 | Currently Unavaliable | ||
| 17 | INLET PUSHROD, SHORT, BSA A65 | 68-0370 | 2 | INLET PUSHROD, SHORT, BSA A65 | $38.50 | View |
| 28 | EXHAUST PIPES, UNBALANCED, PAIR | 68-2789/91 | 1 Pair | EXHAUST PIPES, UNBALANCED, PAIR, BSA A50 A65 | $385.00 | View |
| 29 | EXHAUST PIPE TIE BAR, BSA A65 | 68-2794 | 1 | EXHAUST PIPE TIE BAR, BSA A65 | $35.00 | View |
| 30 | SPRING WASHER 1/4 | 02-1462 | 2 | SPRING WASHER 1/4 | $0.30 | View |
| 31 | BOLT 1/4 CEI X 3/8 | 02-0220 | 2 | BOLT 1/4 CEI X 3/8 | $2.55 | View |
| 32 | Screw 1 1/4 | 21-6187 | 2 | Screw 1 1/4 | ||
| 33 | Shakeproof serrated washer | 29-0541 | 2 | Shakeproof serrated washer | $0.45 | View |
| 34 | Cylinder Barrel | 68-0886 | 1 | Cylinder Barrel | ||
| 38 | Plug Cap | 19-7625 | 2 | Plug Cap | $4.65 | View |
| 39 | Spark Plug | 19-7606 | 2 | CHAMPION SPARK PLUG N4C | $11.00 | View |
| 41 | NUT 1/4 CEI | 21-5102 | 2 | NUT 1/4 CEI | $1.16 | View |
| 42 | Finned alloy exhaust clamp | 42-2848 | 2 | Finned alloy exhaust clamp | View |
