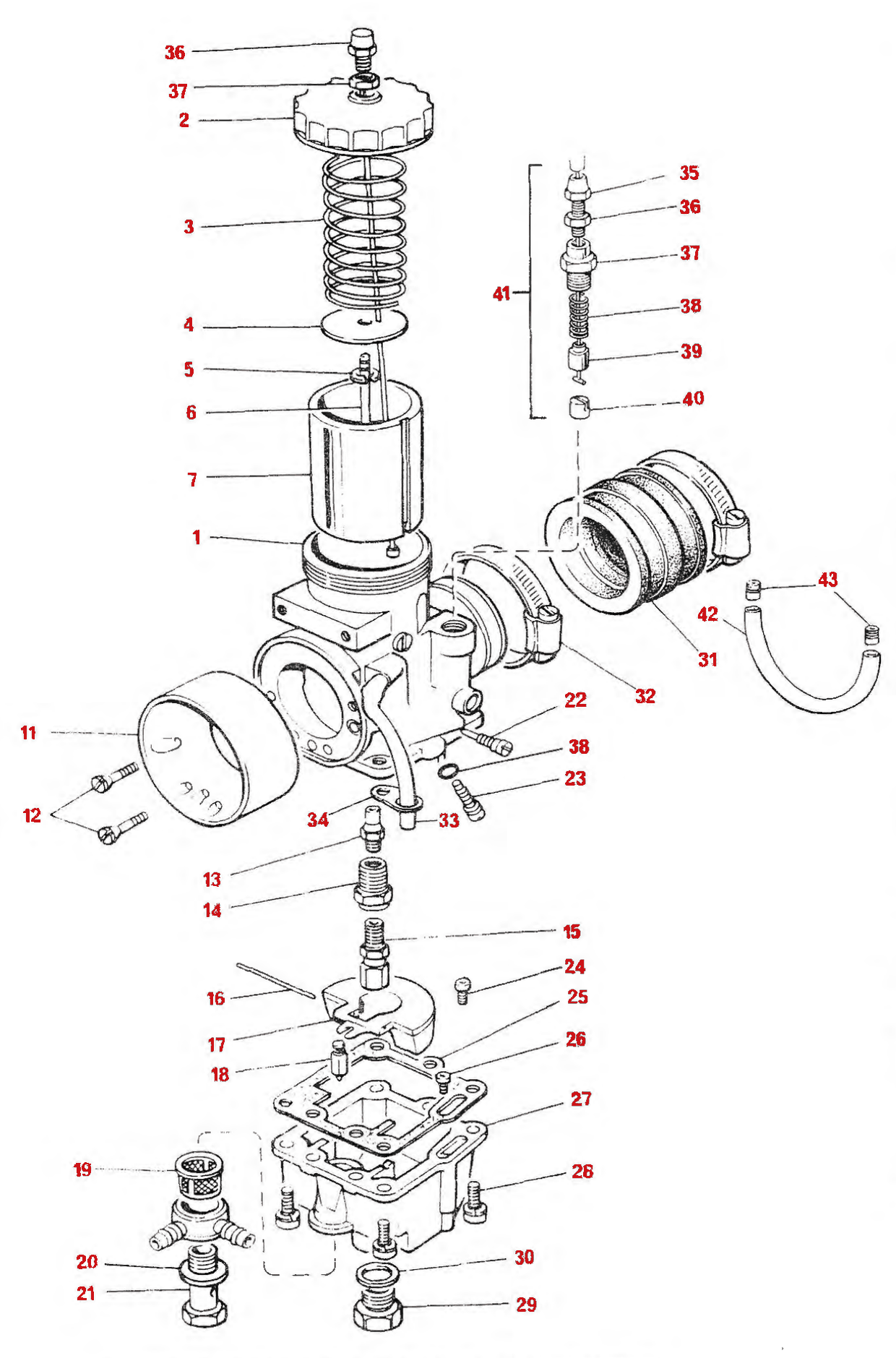

HomeMake: Triumph1978-82 Triumph 750 Twins T140D, T140ECarburettors & Fuel SystemsCarburettor Amal Mk2 1979–82
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |
Carburettor Complete Left | 997068 | 1 | View | ||
| 1 | |
Carburettor Complete Right | 997069 | 1 | $599.01 | View | |
| 2 |  |
Mixing chamber top | 997070 | 1 | $17.00 | View | |
| 3 |  |
Throttle spring | 997071 | 1 | $9.50 | View | |
| 4 | Needle retaining disc | 997072 | 1 | ||||
| 5 |  |
Needle clip | 997073 | 1 | $2.20 | View | |
| 6 |  |
Throttle needle 2C3 | 997074 | 1 | $34.00 | View | |
| 7 |  |
Throttle slide No. 3 | 997075 | 1 | $118.00 | View | |
| 11 | Air intake adaptor | 997079 | 1 | Available Special Order | |||
| 12 | Air intake adaptor screws | 997080 | 2 | ||||
| 13 |  |
Needle jet .106 | A 2928/122 | 1 | 1981–82 only | $22.00 | View |
| 14 |  |
Jet holder | 997082 | 1 | $15.00 | View | |
| 15 |  |
Mainjet 200 | 997083 | 1 | $13.00 | View | |
| 16 |  |
Float spindle | 997084 | 1 | $3.95 | View | |
| 17 |  |
Float | 990512 | 1 | $18.00 | View | |
| 18 |  |
Float needle | 997086 | 1 | $20.00 | View | |
| 19 |  |
Filter | 990438 | 1 | $7.30 | View | |
| 20 |  |
Banjo bolt washer | 991124 | 1 | $1.16 | View | |
| 21 |  |
Banjo bolt | 990517 | 1 | $9.65 | View | |
| 22 |  |
Pilot air screw | 990515 | 1 | $4.40 | View | |
| 23 |  |
Throttle stop screw | 990516 | 1 | $4.25 | View | |
| 24 |  |
Pilot jet 20 | 124/026/20 | 1 | 1981–82 only | $8.50 | View |
| 24 | |
Pilot jet 25 | 997085 | 1 | 1979–80 only | $8.50 | View |
| 25 |  |
Washer - float bowl | 997087 | 1 | $7.80 | View | |
| 26 |  |
Jet - cold start 35 | 997117 | 1 | 1980–82 only | $8.50 | View |
| 26 |  |
Jet - cold start 50 | 997088 | 1 | 1979 only | $8.50 | View |
| 27 | Float bowl assy | 997089 | 1 | ||||
| 28 |  |
Float bowl screws | 990521 | 4 | $4.30 | View | |
| 29 |  |
Float bowl drain plug | 997090 | 1 | $14.00 | View | |
| 30 |  |
Float bowl drain plug washer | 997091 | 1 | $2.95 | View | |
| 31 |  |
Rubber connector | 607076 | 2 | Qty 1979: 1, 1980: 1, 1981: 1, 1982: 2 | Original price was: $32.00.$28.60Current price is: $28.60. | View |
| 32 |  |
Rubber connector clip | 607077 | 4 | Qty 1979: 2, 1980: 2, 1981: 2, 1982: 4 | $5.70 | View |
| 33 | Air vent pipe | 997092 | 2 | ||||
| 34 | Clip vent pipe | 997093 | 2 | ||||
| 35 |  |
Adjuster-cable | 4/035 | 1 | 1981–82 only | $4.10 | View |
| 35 | Pad backing disc | 997094 | 1 | 1979 only | |||
| 36 | |
Throttle cable adjuster | 997096 | 1 | $4.10 | View | |
| 36 |  |
Adjuster locknut | 5/077 | 1 | 1981–82 only | $3.45 | View |
| 38 |  |
'O' ring for air & throttle screw | 990520 | 2 | $3.45 | View | |
| 38 |  |
Spring | 2622/084 | 1 | 1981–82 only | $4.65 | View |
| 38 | Connector bracket | 717052 | 1 | 1979 only | |||
| 39 |  |
Plunger cap | A 2622/092 | 1 | CHECK: non-standard number as printed: A 2622/092 || 1981–82 only | $7.80 | View |
| 40 |  |
Plunger | A 2622/094 | 1 | CHECK: non-standard number as printed: A 2622/094 || 1981–82 only | $26.00 | View |
| 41 |  |
Cold start kit-less cables | 2622/149 | As req. | CHECK: non-standard number as printed: 2622/149 || 1981–82 only | $55.00 | View |
| 42 | Connecting Pipe-Balance | 717051 | 1 | 1982 only | |||
| 43 |  |
Connector Stub | 717103 | 2 | 1982 only | $6.30 | View |
| 44 |  |
Link - cold start | 717053 | 1 | 1980 only | $2.40 | View |
| 45 |  |
Pivot pin | 717054 | 2 | 1980 only | $2.45 | View |
| 46 |  |
Fastener for pin | 607078 | 2 | 1980 only | View |
