1972 Norton Commando Headlight
Scroll sideways to view the table completely.
| Plate # | Part Name | Part # | Qty Fitted | Description | |
|---|---|---|---|---|---|
| 1 | Headlight (Lucas) | 069123 | 1 | With rim, 3 warning lights and switch, chrome. All except Hi-Rider. | View |
| 2 | Headlight Rim (Lucas) | 990692 | 1 | 7" chrome. All models except Hi-Rider. | View |
| 3 | Light Unit (Lucas) | 54525927 | 1 | 7" beam unit, BPF bulb with pilot aperture. All except Hi-Rider. | View |
| 4 | Headlight Spacer | 062035 | 2 | 7-3/8" yokes, 7/16" hole. All except Hi-Rider. | View |
| 5 | Headlight, Continental | 60349 | 1 | Not available. | |
| 6 | Light Unit, Continental | 54522680 | 1 | Not available. | |
| 7 | Headlight Plug-in Connector | 068033 | 1 | Plug-in, halogen bulb. | |
| 7 | Headlight Plug-in Connector, Wired | 068033 | AR | 3-pin H4, with wires. | View |
| 8 | Headlight, Hi-Rider | 60280 | 1 | MCH66. Not available. | |
| 9 | Headlight Rim, Hi-Rider | 990691 | 1 | Not available. | |
| 10 | Light Unit, Hi-Rider | 991212 | 1 | Not available. | |
| 11 | Headlight Spacer, Hi-Rider | 062300 | 2 | Not available. | |
| 12 | Headlight, Continental, Hi-Rider | 60348 | 1 | Not available. | |
| 13 | Light Unit, Continental, Hi-Rider | 54523513 | 1 | Not available. | |
| 14 | Headlight Plug-in Connector, Hi-Rider | 068033 | 1 | Not available. | |
| 15 | Headlight Harness (Lucas) | 068066 | 1 | Cloth braided. | View |
| 16 | Headlight Rim Clip | 990683 | 6 | View | |
| 17/18 | Headlight Rim Screw & Clamp | 991189A | 1 | View | |
| 19 | Warning Light, Amber (Lucas) | 066420 | 1 | Jewel style, chrome rim. | View |
| 19 | Warning Light, Amber | 991207 | 1 | Round style, chrome rim. | |

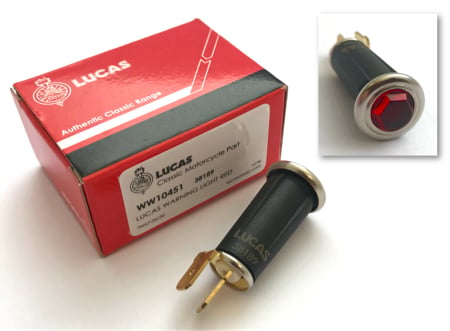

| 20 | Warning Light, Red (Lucas) | 066424 | 1 | Jewel style, chrome rim. | View |
| 20 | Warning Light, Red | 991208 | 1 | Round style, chrome rim. | |
| 21 | Warning Light, Green (Lucas) | 066425 | 1 | Jewel style, chrome rim. | View |
| 21 | Warning Light, Green | 991209 | 1 | Round style, chrome rim. | View |
| - | Warning Light, Blue (Lucas) | 997054 | 1 | Round style, chrome rim. | View |
| 22 | Warning Light Sealing Ring | 54140331 | 3 | View | |
| 23 | Warning Light Bulb (Lucas) | 281 | 3 | 12 volt, 2 watts, BA7S. | View |
| 24 | Headlight Warning Light Shield | 068050 | 3 | Plastic, not rubber. | View |
| 25 | Lighting Switch (Lucas) | 068024 | 1 | 57SA toggle switch, 2 position. | |
| 26 | Main Bulb Holder | 990694 | 1 | For a standard headlight bulb. | View |
| 27 | Terminal Sleeve | 555910 | 1 | Not available. | |
| 28 | Pilot Bulb Holder | 991213 | 1 | 6 volt or 12 volt. | |
| 29 | Pilot Bulb Seating Ring | 068190 | 1 | Not available. | |
| 30 | Main Bulb (Lucas) | 991214 | 1 | 12 volt, 50/40 watt, for standard headlight LLB414. | View |
| 31 | Main Bulb, Continental | 068019 | 1 | Not available. | |
| 32 | Main Bulb, France | 068020 | 1 | Not available. | |
| 33 | Pilot Light Bulb (Lucas) | 990548 | 1 | Bayonet type, BA9S, 12 volt, 5 watt. | View |
| 34 | Headlight Mounting Bolt | 062321 | 2 | 7/16" UNF x 1-1/4" long. | View |
| 35 | Headlight Mounting Washer | 602323 | 2 | 7/16" thick, plain. | View |
| - | Quartz-Halogen Light Unit (Lucas) | 54526114 | AR | 7" with pilot aperture, right hand drive. | |
| - | Quartz-Halogen Bulb (Lucas) | 463 | AR | P43T, 12 volt, 60/55 watt. | View |
