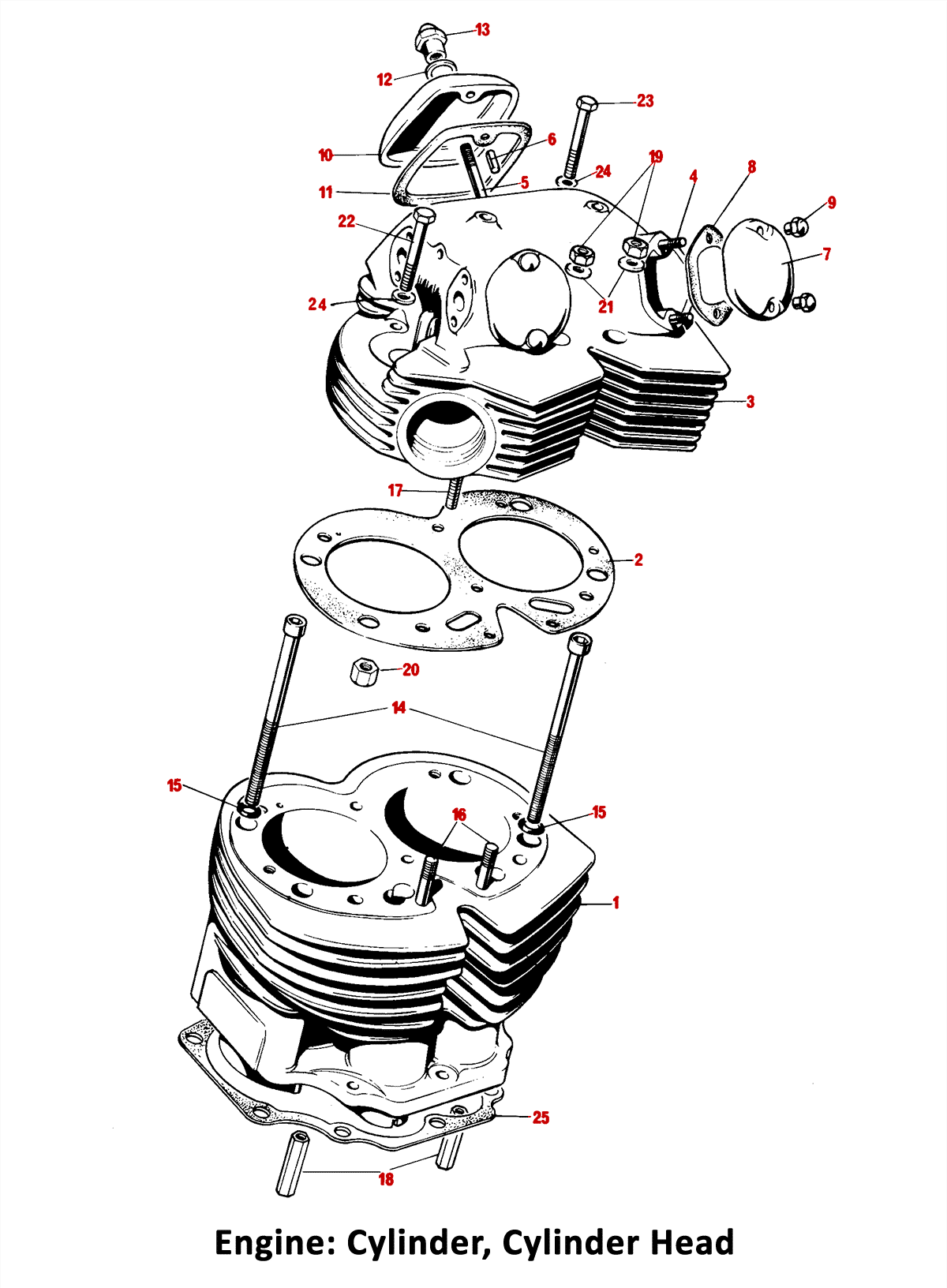

1975 Norton Commando Mk3 Cylinder, Cylinder Head
Scroll sideways to view the table completely.
Plate # | Part Name | Part # | Qty Fitted | Description | |
---|---|---|---|---|---|
1 | Cylinder Barrel | 065074A | 1 | View | |
2 | Cylinder Head Gasket | 065051 | 1 | Flame ring, eyeletted. | View |
3 | Cylinder Head | 063830 | 1 | 32mm ports, 8.5:1 compression. | |
4 | Exhaust Rocker Cover Stud | 067582 | 4 | Front, for alloy heads only. | View |
5 | Rear Rocker Cover Stud | 067693 | 1 | For alloy heads only. | View |
6 | Inlet Rocker Cover Dowel | 000579 | 1 | View | |
7 | Exhaust Rocker Inspection Cover | 067694 | 2 | Oval. | View |
8 | Exhaust Rocker Cover Gasket | 067554 | 2 | Oval. | View |
9 | Exhaust Rocker Cover Nut Set, SS | 067552 | 1 | Front, stainless steel, set of 4. | View |
10 | Inlet Rocker Inspection Cover | 067695 | 1 | Rectangular. | View |
11 | Inlet Rocker Cover Gasket | 067551 | 1 | Rectangular. | View |
12 | Rear Rocker Cover Nut Seal Washer | 067549 | 1 | View | |
13 | Inlet Rocker Cover Nut | 067562 | 1 | View | |
- | Rocker Cover Set | 067694/5 | 1 | Includes 2 exhaust and 1 inlet inspection covers. | View |
14 | Cylinder Through Barrel Bolt | 063085 | 4 | Allen, high tensile. | View |
15 | Cylinder Head Washer | 064147 | 4 | 3/8", fits base. | View |
16 | Cylinder Barrel to Head Stud | 067561 | 2 | 5/16" CEI. | View |
17 | Cylinder Head to Barrel Stud | 067885 | 3 | 3/8" BSF and 3/8" CEI | View |
18 | Cylinder Head Nut | 063192 | 2 | Under exhaust, reduced hex for access. | View |
19 | Cylinder Head Nut | 067529 | 2 | 5/16" CEI, to fit 067561 stud. | View |
20 | Cyclinder Head to Barrel Nut | 067870 | 1 | 3/8"CEI x 1/2" long. | View |
21 | Cylinder Head Nut Washer | 602321 | 2 | 5/16" plain. | View |
22 | Outer Head Bolt | 060401 | 4 | 3/8", by spark plug. | View |
23 | Centre Head Bolt | 067918 | 1 | 3/8" CEI. The short one in the middle. | View |
24 | Cylinder Head Bolt Washer | 016213 | 5 | Thick, 3/8", large diameter. | View |
25 | Cylinder Base Gasket | 063812 | 1 | View | |
- | Compression Plate | 066591 | AR | Steel, 0.75mm thick. | View |
