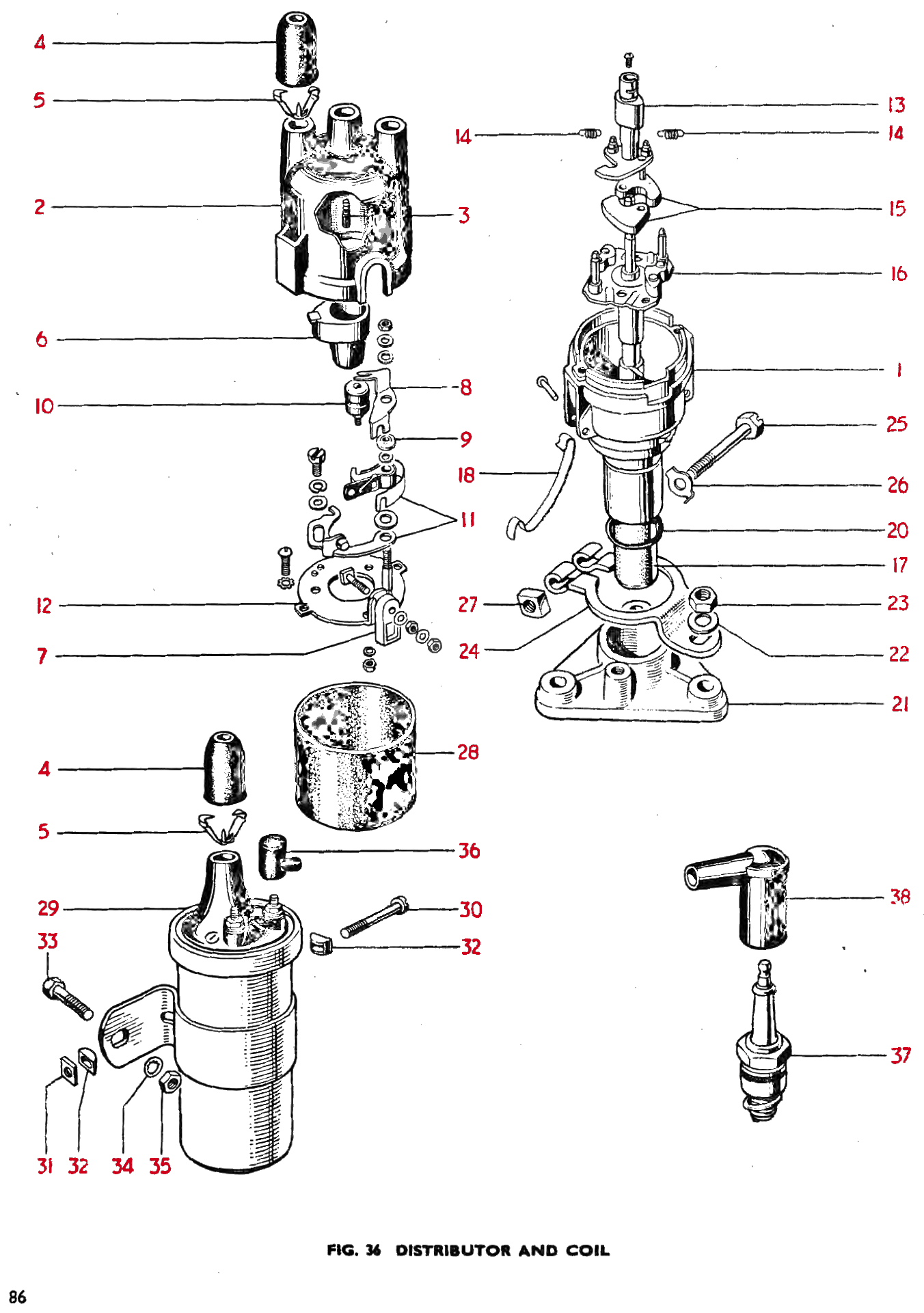

1961–62 Triumph 650 Twins Distributor and Coil

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Distributor (type 18D2)	40690	1
2	Cap Assembly	425049	1		$31.00	View
3	Brush and Spring	404435	1
4	Rubber Grommet	421554	4		$2.60	View
5	Cable Clip	421863	4		$4.40	View
6	Rotor	423486	1		$47.00	View
7	Shaped Insulating Bush	423110	1
8	Condenser Connector	423108	1		$13.00	View
9	Insulating Bush	423109	1
10	Condenser	54410823	1		$26.00	View
11	Contact Set	425219	1		$77.00	View
12	Base Plate	423113	1
13	Cam	425284	1
14	Spring Set	425398	1
15	Weight Set	421056	1
16	Shaft and Action Plate	425444	1
17	Bearing Bush	425498	1
18	Retaining Clip	424158	2		$28.00	View
19	Sundry Parts Set	425243	1
20	Rubber "o" Ring	188639	1
21	Distributor Adaptor	703122	1
22	Plain Washer	S25-3	3		$1.71	View
23	Nut	S1-51	3		$2.65	View
24	Clamping Plate	704116	1
25	Clamp Bolt	112917	1
26	Washer	185051	1
27	Nut	173857	1
28	Distributor Sheath	704117	1
29	Ignition Coil (M.A.6)	45077	1		$85.00	View
30	Clip Screw	100104	1
31	Square Nut	169160	1
32	"d" Washer	422369	2
33	Bolt (7/16" U.h.)	DS57	2		$4.40	View
34	Serrated Washer	701612	2		$0.45	View
35	Nut	820879	2		$1.16	View
36	Rubber Cover	236741	2
37	Sparking Plug (champion L7, K.l.g. F.80 or Lodge H.14)	--	2	Replaced With The L82C	$8.80	View
38	Plug Cover and Suppressor	600297	2		$13.50	View
38	Plug Cover	600262	Alt.	Alternative fitment	$13.00	View
