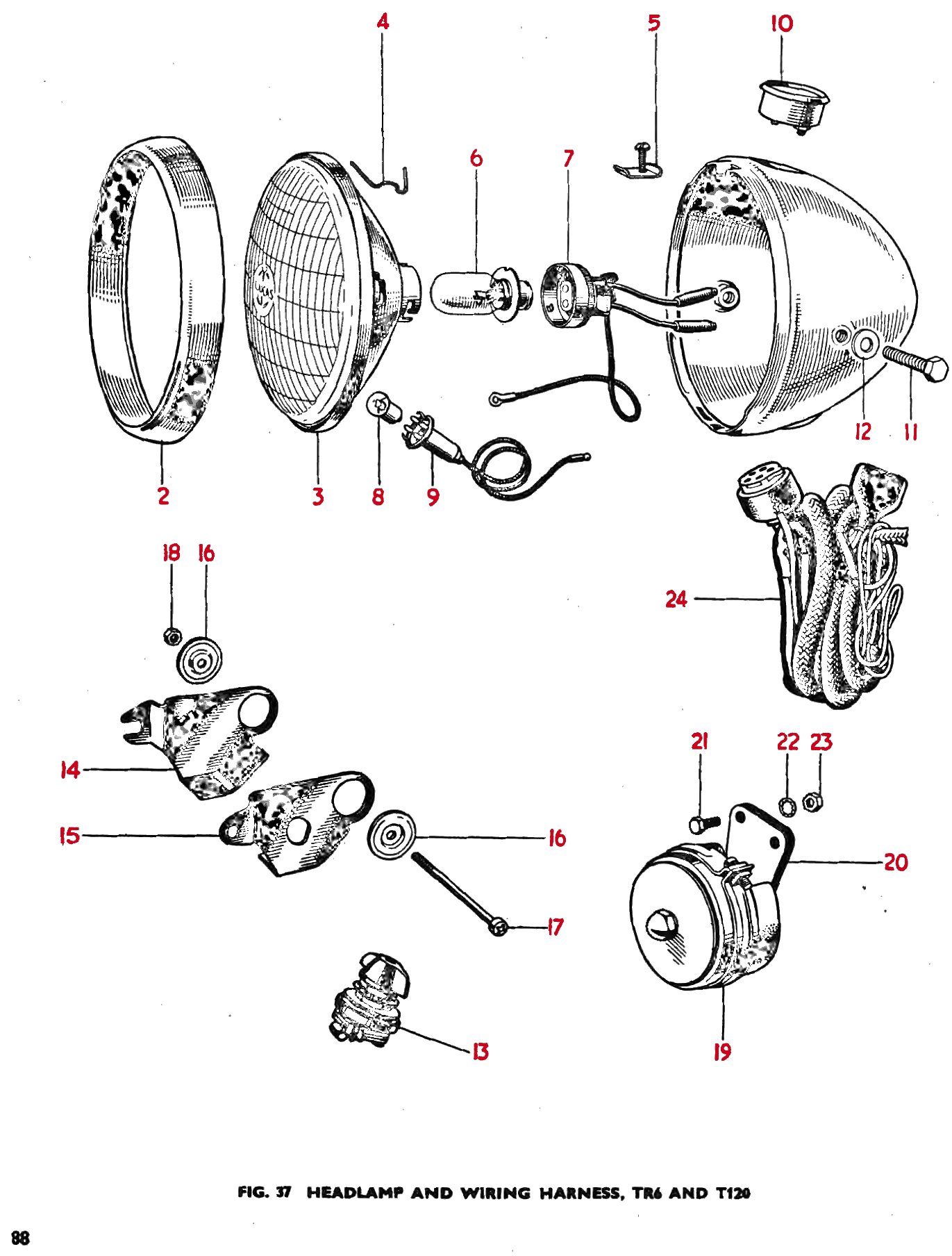

HomeMake: Triumph1961–62 Triumph 650 Twins 6T, T110, TR6, T120ElectricalHeadlamp and Wiring Harness, TR6 and T120
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 | Headlamp Complete | 58556 | 1 | ||||
| 2 |  |
Rim | 553248 | 1 | $31.00 | View | |
| 3 |  |
Light Unit | 516798 | 1 | $104.01 | View | |
| 4 |  |
Fixing Wire | 504665 | 6 | $1.32 | View | |
| 5 |  |
Screw and Plate | 534296 | 1 | $4.95 | View | |
| 6 |  |
Bulb (30/24W. Vert. dip, Pre-focus) | 312 | 1 | $9.30 | View | |
| 7 |  |
Adaptor | 554602 | 1 | $21.00 | View | |
| 8 |  |
Bulb (3W. M.c.c.) | 988 | 1 | $1.55 | View | |
| 9 |  |
Pilot Bulbholder | 554710 | 1 | $24.50 | View | |
| 10 |  |
Ammeter | 36084 | 1 | Steel mounting clip not Included with Unit | $88.00 | View |
| 11 |  |
Bolt | 112201 | 2 | $8.80 | View | |
| 12 | Plain Washer | 137141 | 2 | ||||
| 13 |  |
Lighting Switch (SA.41) | 31784 | 1 | $73.00 | View | |
| 14 | Left Switch Bracket | 824696 | 1 | ||||
| 15 | Right Switch Bracket | 824697 | 1 | ||||
| 16 |  |
Cap | 703798 | 2 | $6.60 | View | |
| 17 | Screw (1 7/8" U.h.) | 703221 | 1 | ||||
| 18 |  |
Nut | 970745 | 1 | View | ||
| 19 | Horn | 70048 | 1 | ||||
| 20 | Fixing Plate | 701851 | 4 | ||||
| 21 |  |
Bolt (1/2" U.h.) | 824771 | 2 | $1.30 | View | |
| 22 |  |
Serrated Washer | GS299 | 2 | $0.40 | View | |
| 23 | |
Nut | 970745 | 2 | View | ||
| 24 |  |
Wiring Harness | 54944995 | 1 | $184.80 | View |
