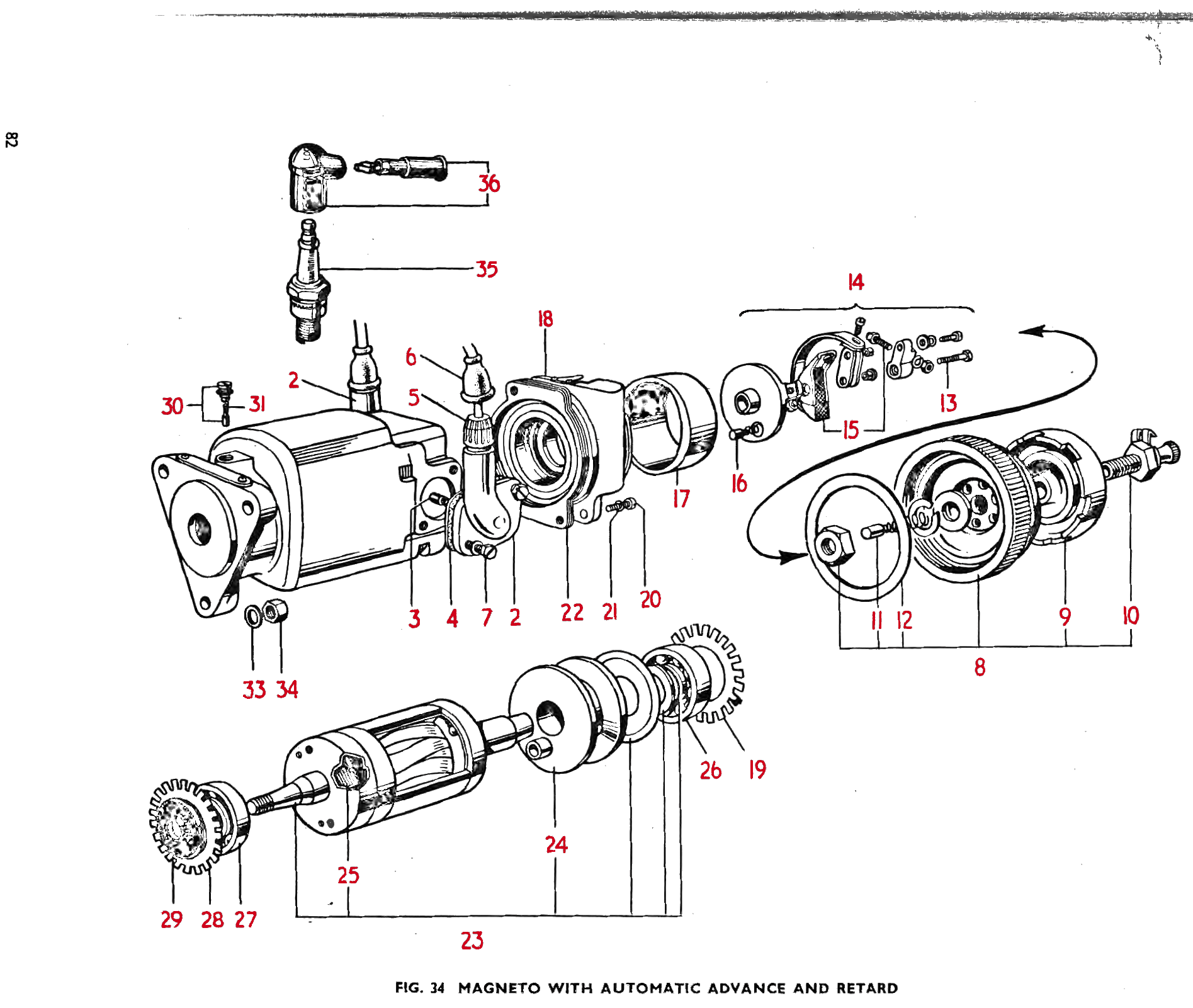

HomeMake: Triumph1961–62 Triumph 650 Twins 6T, T110, TR6, T120ElectricalMagneto with Automatic Advance and Retard
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 | Magneto (T110, T120) | 42344 | 1 | ||||
| 2 |  |
Pick-up (T110, T120) | 458876 | 2 | $32.00 | View | |
| 3 |  |
Brush and Spring (T110, T120) | 451260 | 2 | $7.21 | View | |
| 4 | Joint Washer (T110, T120) | 458877 | 2 | ||||
| 5 | Moulded Nut (T110, T120) | 410600 | 2 | ||||
| 6 |  |
Rubber Grommet (T110, T120) | 458658 | 2 | $2.60 | View | |
| 7 | Fixing Screw (T110, T120) | 145074 | 4 | ||||
| 8 |  |
Contact Breaker Cover (T110, T120) | 459269 | 1 | $95.00 | View | |
| 9 | Moulded Breather Cap (T110, T120) | 459266 | 1 | ||||
| 10 | Terminal Assembly (T110, T120) | 459888 | 1 | ||||
| 11 |  |
Brush and Spring (T110, T120) | 455190 | 1 | View | ||
| 12 | Rubber Washer (T110, T120) | 457681 | 1 | ||||
| 13 | Contact Breaker Screw (T110, T120) | 492856 | 1 | Bracketed with refs 14 and 15; dagger footnote applies | |||
| 14 | Contact Breaker (T110, T120) | 492854 | 1 | Bracketed with refs 13 and 15; dagger (†) footnote | |||
| 15 | Contact and Spring Set (T110, T120) | 54440888 | 1 | Bracketed with refs 13 and 14 | |||
| 16 | Earthing Brush and Spring (T110, T120) | 470537 | 1 | ||||
| 17 | Cam (T110, T120) | 459130 | 1 | ||||
| 18 | End Plate (T110, T120) | 493716 | 1 | ||||
| 19 |  |
Insulating Cup (T110, T120) | 463932 | 1 | $4.40 | View | |
| 20 | Screw (T110, T120) | 150509 | 3 | ||||
| 21 | Spring Washer (T110, T120) | 185048 | 3 | ||||
| 22 | Shim (0.005 in.) | 452907 | A/R | as required (printed once, spanning the T110, TR6 and T120 columns) | |||
| 23 | Armature (T110, T120) | 459004 | 1 | ||||
| 24 | Slip Ring (T110, T120) | 455361 | 1 | ||||
| 25 | Condenser (T110, T120) | 458339 | 1 | ||||
| 26 |  |
Contact Breaker End Bearing (T110, T120) | 189294 | 1 | $33.00 | View | |
| 27 |  |
Drive End Bearing (T110, T120) | 189244 | 1 | $24.00 | View | |
| 28 | |
Drive Bearing Insulating Cup (T110, T120) | 459005 | 1 | $4.40 | View | |
| 29 |  |
Oil Seal (T110, T120) | 459002 | 1 | $13.00 | View | |
| 30 | |
Earth Brush, Spring and Holder (T110, T120) | 455191 | 1 | View | ||
| 31 | |
Earth Brush and Spring (T110, T120) | 455190 | 1 | View | ||
| 32 | Sundry Parts Set (T110, T120) | 458675 | 1 | ||||
| 33 | Plain Washer (T110, T120) | S25-3 | 3 | ||||
| 34 |  |
Nut (T110, T120) | 821008 | 3 | $4.10 | View | |
| 35 |  |
Sparking Plug (champion N3, K.l.n. F.E.100 or Lodge Hln) | -- | 2 | No part number printed | $12.00 | View |
| 36 |  |
Plug Cover and Suppressor | 600297 | 2 | $13.50 | View | |
| 36 |  |
Plug Cover | 600262 | Alt. | Alternative fitment | $13.00 | View |
| -- | Contact Breaker Screw | 122160 | -- | Interchangeable with the above as an assembly only; bracketed with next three rows | |||
| -- | Contact Breaker | 470534 | -- | Interchangeable with the above as an assembly only | |||
| -- | Contact Set | 470609 | -- | Interchangeable with the above as an assembly only | |||
| -- | Spring Set | 470688 | -- | Interchangeable with the above as an assembly only |
