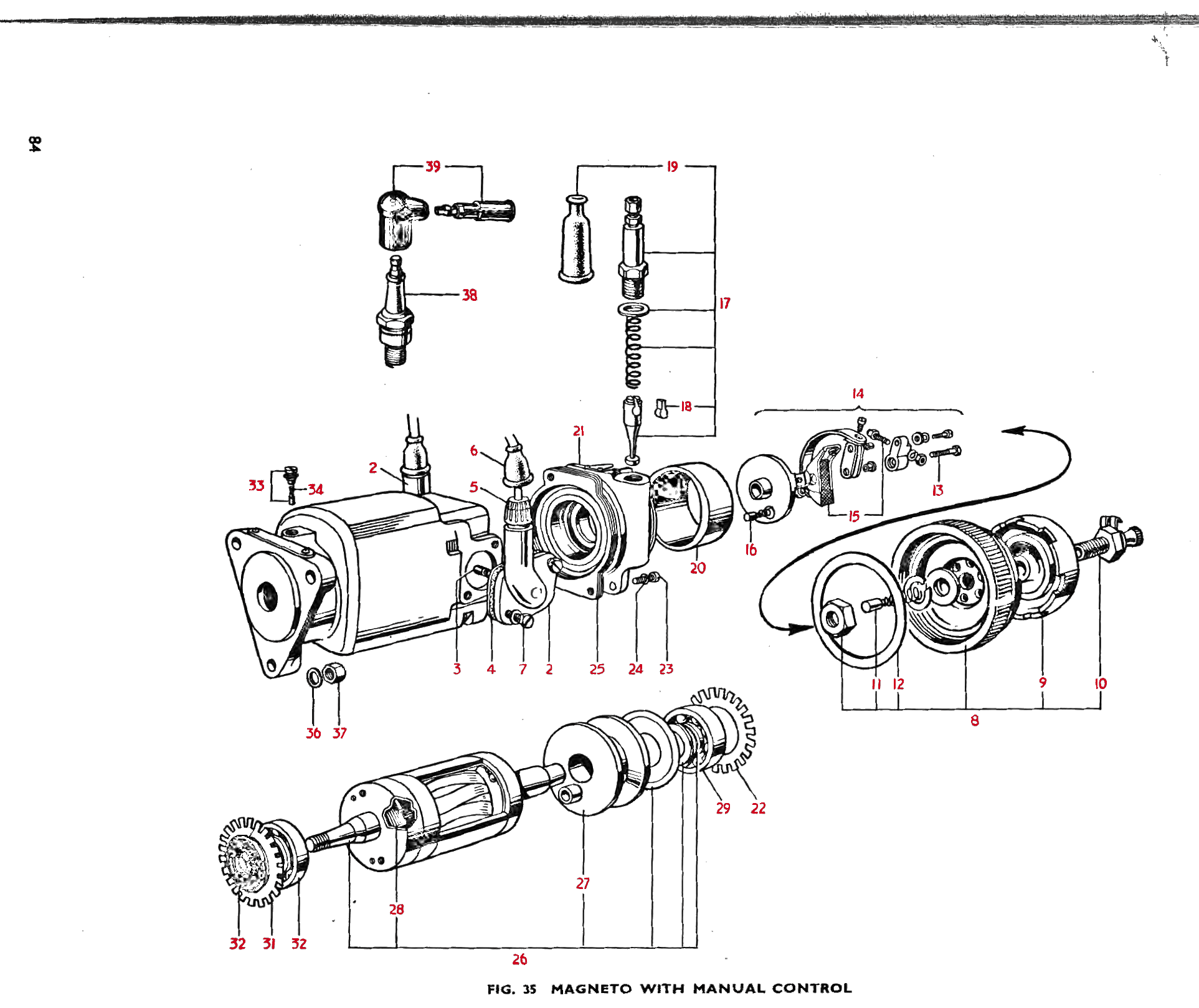

HomeMake: Triumph1961–62 Triumph 650 Twins 6T, T110, TR6, T120ElectricalMagneto with Manual Control
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 | Magneto (TR6) | 42298 | 1 | ||||
| 2 |  |

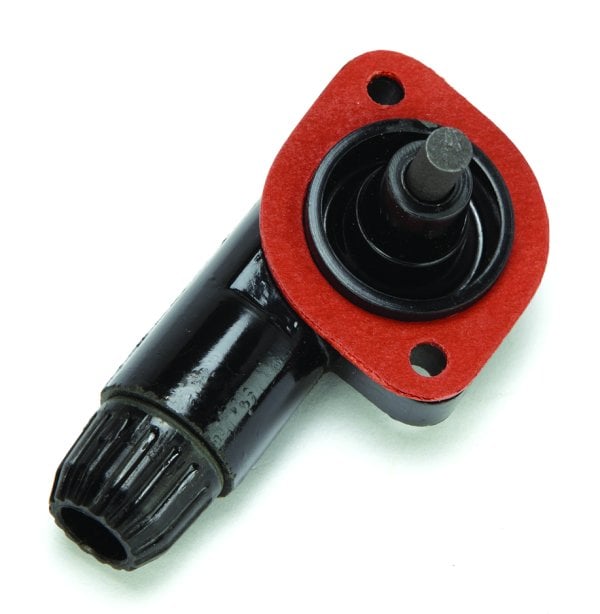

Pick-up (TR6) | 458876 | 2 | $32.00 | View | |
| 3 |  |
Brush and Spring (TR6) | 451260 | 2 | $7.21 | View | |
| 4 | Joint Washer (TR6) | 458877 | 2 | ||||
| 5 | Moulded Nut (TR6) | 410600 | 2 | ||||
| 6 |  |
Rubber Grommet (TR6) | 458658 | 2 | $2.60 | View | |
| 7 | Fixing Screw (TR6) | 145074 | 4 | ||||
| 8 |  |
Contact Breaker Cover (TR6) | 459269 | 1 | $95.00 | View | |
| 9 | Moulded Breather Cap (TR6) | 459266 | 1 | ||||
| 10 | Terminal Assembly (TR6) | 459888 | 1 | ||||
| 11 |  |
Brush and Spring (TR6) | 455190 | 1 | View | ||
| 12 | Rubber Washer (TR6) | 457681 | 1 | ||||
| 13 | Contact Breaker Screw (TR6) | 492856 | 1 | † (bracketed with refs 14 and 15) | |||
| 14 | Contact Breaker (TR6) | 492854 | 1 | † (bracketed with refs 13 and 15) | |||
| 15 | Contact and Spring Set (TR6) | 54440888 | 1 | † (bracketed with refs 13 and 14) | |||
| 16 | Earthing Brush and Spring (TR6) | 470537 | 1 | ||||
| 17 | Control Parts Set (TR6) | 492195 | 1 | ||||
| 18 | Nipple (TR6) | 455788 | 1 | ||||
| 19 |  |
Rubber Cover (TR6) | 454475 | 1 | $4.95 | View | |
| 20 | Cam (TR6) | 458725 | 1 | ||||
| 21 | End Plate (TR6) | 459271 | 1 | ||||
| 22 |  |
Insulating Cup (TR6) | 463932 | 1 | $4.40 | View | |
| 23 | Screw (TR6) | 150509 | 3 | ||||
| 24 | Spring Washer (TR6) | 185048 | 3 | ||||
| 25 | Shim (0.005") | 452907 | A/R | as required (printed once across all model columns) | |||
| 26 | Armature (TR6) | 459004 | 1 | ||||
| 27 | Slip Ring (TR6) | 455361 | 1 | ||||
| 28 | Condenser (TR6) | 458339 | 1 | ||||
| 29 |  |
Contact Breaker and Bearing (TR6) | 189294 | 1 | $33.00 | View | |
| 30 |  |
Drive End Bearing (TR6) | 189244 | 1 | $24.00 | View | |
| 31 | |
Drive Bearing Insulating Cup (TR6) | 459005 | 1 | $4.40 | View | |
| 32 |  |
Oil Seal (TR6) | 459002 | 1 | $13.00 | View | |
| 33 | Earth Brush, Spring and Holder (TR6) | 455191 | 1 | ||||
| 34 | |
Earth Brush and Spring (TR6) | 455190 | 1 | View | ||
| 35 | Sundry, Parts Set (TR6) | 458675 | 1 | ||||
| 36 |  |
Plain Washer (TR6) | S25-3 | 3 | $1.71 | View | |
| 37 |  |
Nut (TR6) | 821008 | 3 | $4.10 | View | |
| 38 |  |
Sparking Plug (champion N3, K.l.g. F.E.100 or Lodge H.l.n.) | -- | 2 | $12.00 | View | |
| 39 |  |
Plug Cover and Suppressor | 600297 | 2 | $13.50 | View | |
| 39 |  |
Plug Cover | 600262 | Alt. | Alternative fitment | $13.00 | View |
| -- | Contact Breaker Screw | 122160 | -- | Interchangeable with the above as an assembly only. | |||
| -- | Contact Breaker | 470534 | -- | Interchangeable with the above as an assembly only. | |||
| -- | Contact Set | 470609 | -- | Interchangeable with the above as an assembly only. | |||
| -- | Spring Set | 470688 | -- | Interchangeable with the above as an assembly only. |
