Home>Make: Triumph>1961–62 Triumph 650 Twins 6T, T110, TR6, T120>Electrical>Speedometer, Tail Lamp and Rectifier

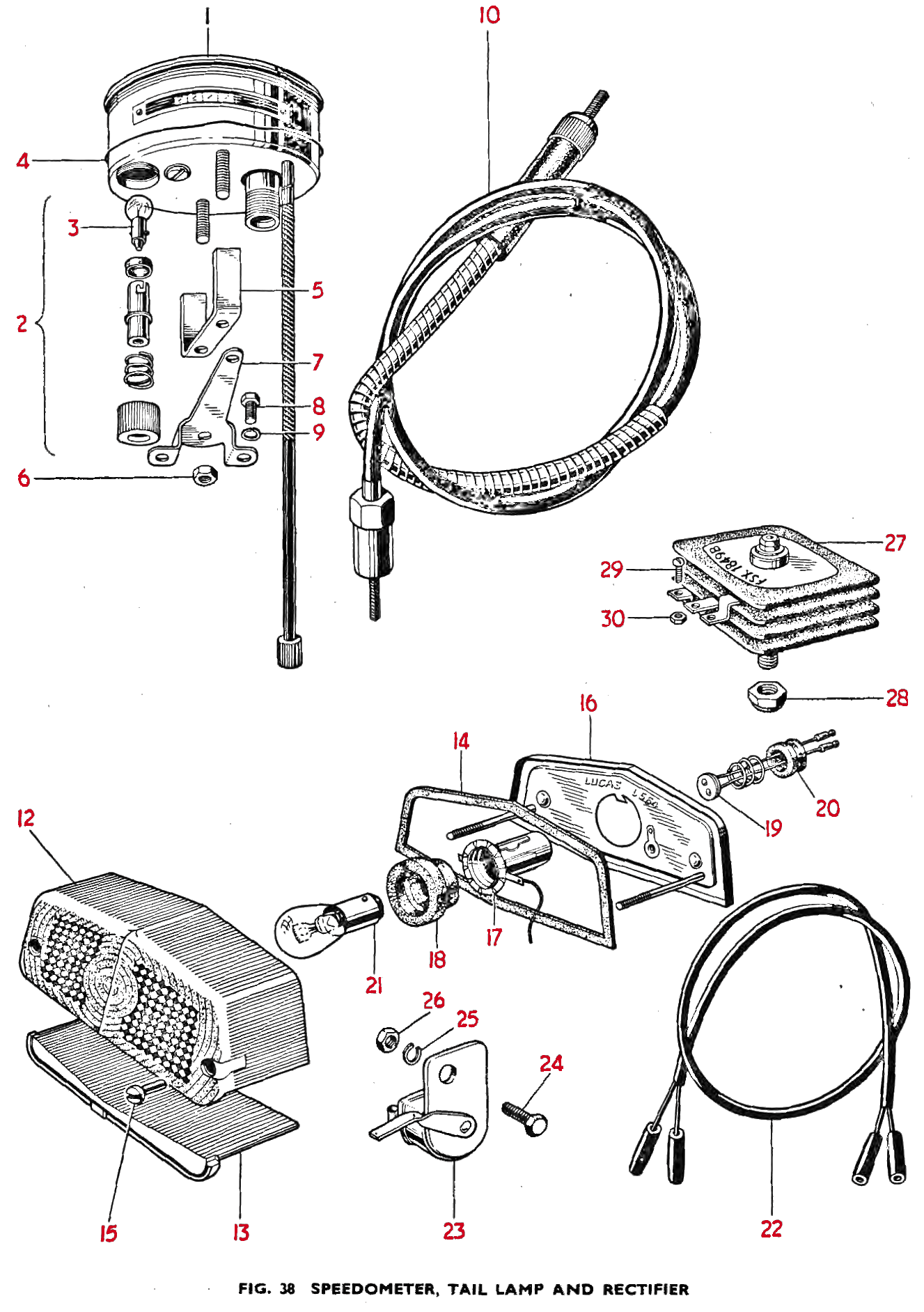

1961–62 Triumph 650 Twins Speedometer, Tail Lamp and Rectifier

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Speedometer Head (125 m.p.h.) (6T, T110)	SC3304/19	1
1	Speedometer Head (140 m.p.h.) (T120R, T120C)	SC5301/26	1	1962 models - NEW
2	Bulb Holder c/w Bulb	P53279/1	1		$31.00	View
3	Bulb	P52305	1		$1.55	View
4	Rubber Ring (6T, T110)	P22469	1
5	Clamp Bar (6T, T110)	25578/2	1
6	Nut	N1253	2
7	Bracket (TR6, T120)	DS40	1
8	Bolt (7/16" U.h.) (TR6, T120)	DS57	2		$4.40	View
9	Spring Washer (TR6, T120)	S26-2	2		$0.30	View
10	Speedometer Drive Cable (44" long) (6T, T110)	600245	1			View
11	Stop and Tail Lamp (type 564)	53432	1		$88.00	View
12	Lens	573839	1		$15.00	View
13	Window	575200	1
14	Lens Seating Gasket	575208	1
15	Sleeve Nut	575219	2
16	Base Assembly	576002	1
17	Bulbholder	575209	1
18	Grommet	575207	1
19	Contact Assembly	573828	1
20	Grommet	573825	1
21	Bulb (6/18W. Offset pin.)	384	1		$1.55	View
22	Stop and Tail Lamp Lead	838604	1
23	Stop Lamp Switch (6SA)	34279	1	Special Order
23	Stop Lamp Switch	34181	1	1962 models - Replaces 34279
24	Bolt (1/2" U.h.)	820929	1		Original price was: $6.80.Current price is: $6.55.	View
25	Spring Washer	S26-3	1		$0.45	View
26	Nut	S1-51	1		$2.65	View
27	Rectifier	47132	1	Change to Rectifier Regulator Unit	$155.00	View
28	Self-locking Nut	823600	1
29	Screw (5/16" U.h.)	824813	3
30	Nut	970919	3		$2.26	View
--	Crinkle Washer (rectifier leads)	824844	3	1962 models - NEW
