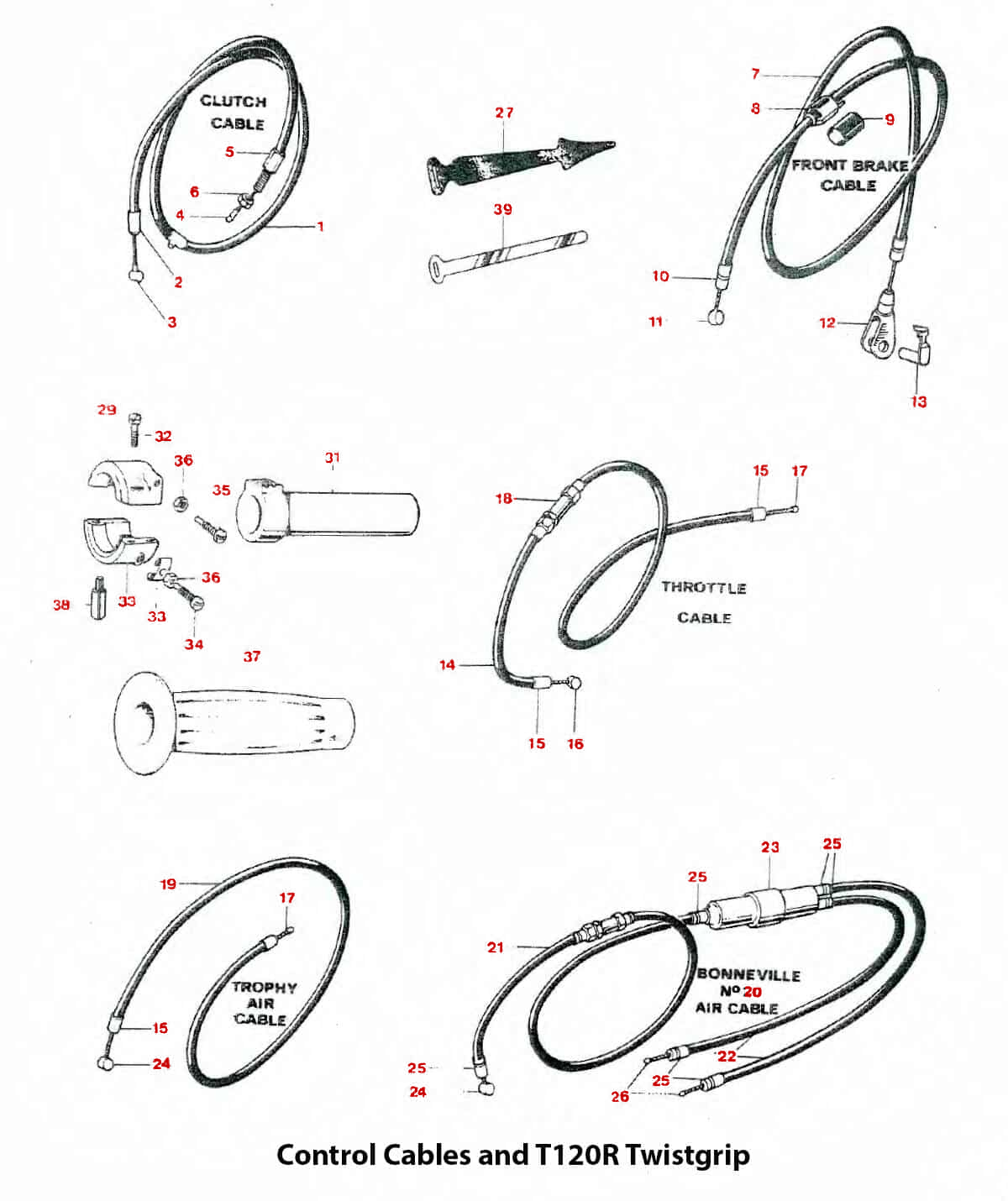

1969 Triumph 650 Control Cables and T120R Twistgrip
Triumph 1969 TR6R TR6C T120R Control Cables and T120R Twistgrip
Scroll sideways to view the table completely.
Plate # Part Name Part # Qty Fitted Description
1 Clutch Cable 60-1993 1
2 Ferrule 60-0103 2
3 Nipple (Handlebar End) 60-0506 1
4 Nipple DS73 1
5 Adjuster 60-0668 1
6 Nut 21-0672 1
7 Front Brake Cable 60-2076 1
8 Front Stop Switch 60-2085 1
9 Cover for Switch 60-2086 1
10 Ferrule 60-0103 1
11 Nipple (Handlebar End) 60-0506 1
12 Fork End 60-0638 1
13 Pivot Pin (Spring-Fix) 37-2006 1
14 Throttle Cable - TR6R, TR6C 60-0746 1
14 Throttle Cable - T120R 60-1819 1
15 Ferrule 600101 8
16 Nipple 60-0083 1
17 Nipple NS191 1
18 Adjuster 60-0104 1
19 Choke Cable - TR6, TR6C 60-0747 1
20 Choke Cable Assembly - T120 60-1817 1
21 Choke Lever Cable 60-1818 1
22 Choke Carburettor Cable 60-0684 2
23 Junction Box 99-0341 1 244/104
24 Nipple 60-0083 1 Handlebar end.
25 Ferrule 60-0101 6
26 Nipple NS191 3
27 Clip, Rubber 60-0343/7 -
28 Twin Rotor Twistgrip - T120R 99-0351 1
29 Twistgrip Body Top Half 99-0345 1 Not available separately.
30 Twistgrip Body Bottom Half 99-0346 1 Not available separately.
31 Twistgrip Rotor 99-0347 1
32 Twistgrip Bolt 99-0220 2 Not available separately.
33 Twistgrip Friction Spring 99-0238 1 Not available separately.
34 Twistgrip Adjuster Screw 99-0337 1 Not available separately.
35 Twistgrip Rotor Stop 99-0338 1 Not available separately.
36 Twistgrip Nut 99-0339 2 Not available separately.
37 Twistgrip Grip 97-2125 1
38 Twistgrip Cable Stop 99-0241 2
39 Cable Clip XA69 - Metal
