1969 Triumph 650 Side Cover and Twin Seat
Scroll sideways to view the table completely.
| Plate # | Part Name | Part # | Qty Fitted | Description | |
|---|---|---|---|---|---|
| 1 | Side Cover and Toolbox | 82-8042 | 1 | ||
| - | Transfer - TIGER 650 (TR6R) | 60-2025 | 1 | View | |
| - | Transfer - TROPHY 650 (TR6C) | 60-2027 | 1 | ||
| - | Transfer - BONNEVILLE | 60-2026 | 1 | View | |
| 2 | Side Cover Knob | 83-1357 | 1 | View | |
| 3 | Washer | 83-1377 | 1 | View | |
| 4 | Side Cover Nut | 83-0222 | 1 | View | |
| 5 | Side Cover Grommet | 82-6673 | 1 | View | |
| 6 | Twin Seat | 82-9714 | 1 | View | |
| 7 | Twin Seat Cover | 82-9715 | 1 | ||
| 8 | Trim Strip | 60-0696 | 1 | ||
| 9 | Trim Strip Sprag | 60-0697 | 4 | ||
| 10 | Rubber Buffer | 82-7835 | 1 | View | |
| 11 | Hinge, Front | 82-8026 | 1 | View | |
| 12 | Hinge, Rear | 82-7862 | 1 | View | |
| 13 | Spring Washer | S26-2 | 4 | 1/4" | View |
| 14 | Bolt | 140101 | 4 | 1/4" UNF x 1/2" long. | View |
| 15 | Check Wire | 60-0374 | 1 | View | |
| 16 | Self Tapping Screw | 82-4483 | 1 | ||
| 17 | Washer | 70-1719A | 1 | View | |
| 18 | Spring | 82-4228 | 1 | View | |
| 19 | Split Pin | - | 1 | 3/32" x 1/2" | View |
| 20 | Seat Catch Plunger | 82-7560 | 1 | View | |

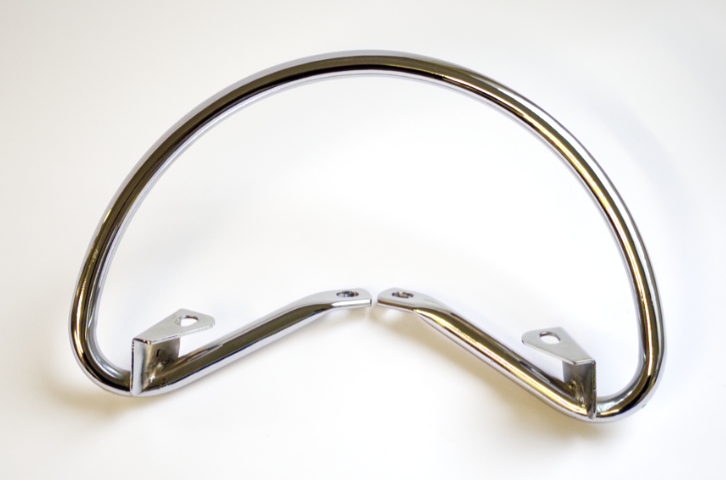

| 21 | Seat Rail | 82-9498 | 1 | ||
| 22 | Bolt | 14-0102 | 4 | 1/4" UNF x 5/8" long. | View |
| 23 | Spring Washer | S26-2 | 4 | 1/4" | View |
