Home>Make: Triumph>1971–72 Triumph 650 twins T120 Oil In Frame>Engine, Primary Drive & Clutch>Chaincase & Chains

1971 Triumph 650 Twins Chaincase & Chains

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Rear Chain, 5/8 in. x 3/8 in. x 106 Links	60-1915	1	107 Link Chain trim to Suit		View
2	Joint Washer- Behind Clutch	71-1419	1		$4.96	View
3	Cover Plate	70-7037	1		$70.00	View
4	Oil Seal- Behind Clutch	70-7565	1		$6.00	View
5	Countersunk Screw	70-3821	6		$1.10	View
6	Chain Tensioner Abutment	70-5976	1	(also listed with crankcase group).	$17.00	View
7	Chain Tensioner Blade	70-6061	1		$39.00	View
8	Tie Rod	70-4152	1		$3.30	View
9	Trunnion	70-5977	1		$1.45	View
10	Adjuster Sleeve Nut	70-9703	1		$9.75	View
11	Primary Chain, 3/8 in. Duplex x 84 Links	60-0477	1		$114.95	View
12	Stator Stud	S1866	2		$25.00	View
13	Stator Stud	S1867	1		$23.00	View

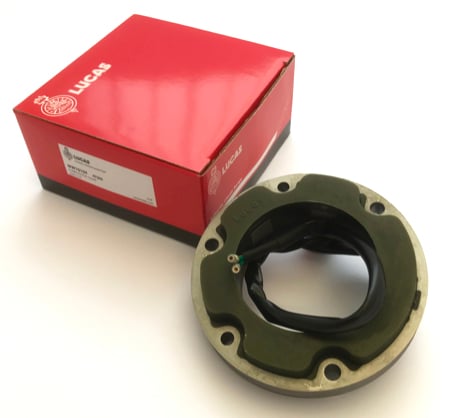

14	Stator, RM21 (99-1006)	47205	1	Single Phase Stator for Higher Output USE RM23		View
15	Sleeve Nut	70-9360	1		$11.00	View
16	Rubber Grommet	70-4144	1		$1.99	View
17	Plastic Sleeve	70-5449	1
18	Plain Washer	S25-3	3		$1.71	View
19	Self-Locking Nut	14-0702	3		$3.95	View
20	Primary Chaincase GASKET	71-1463	1		$15.00	View
21	Chaincase	70-9245	1			View
22	Rotor Cover	57-2440	1		$44.00	View
23	Joint Washer	71-1457	1		$2.95	View
24	Screw	82-4129	3		$1.20	View
25	Copper Washer	70-2441	1		$1.30	View
26	Filler Plug	57-2166	1		$12.00	View
27	"O" Ring	70-8782	1		$1.85	View
28	Screw	14-6608	6		$2.70	View
29	Screw	14-6620	2		$4.90	View
30	Domed Nut	S544	2		Original price was: $8.40.Current price is: $6.71.	View
31	Copper Washer	82-1880	2		$1.50	View
32	Timing Pointer	57-2443	1		$5.01	View
33	Level Plug	14-6101	1		$0.90	View
