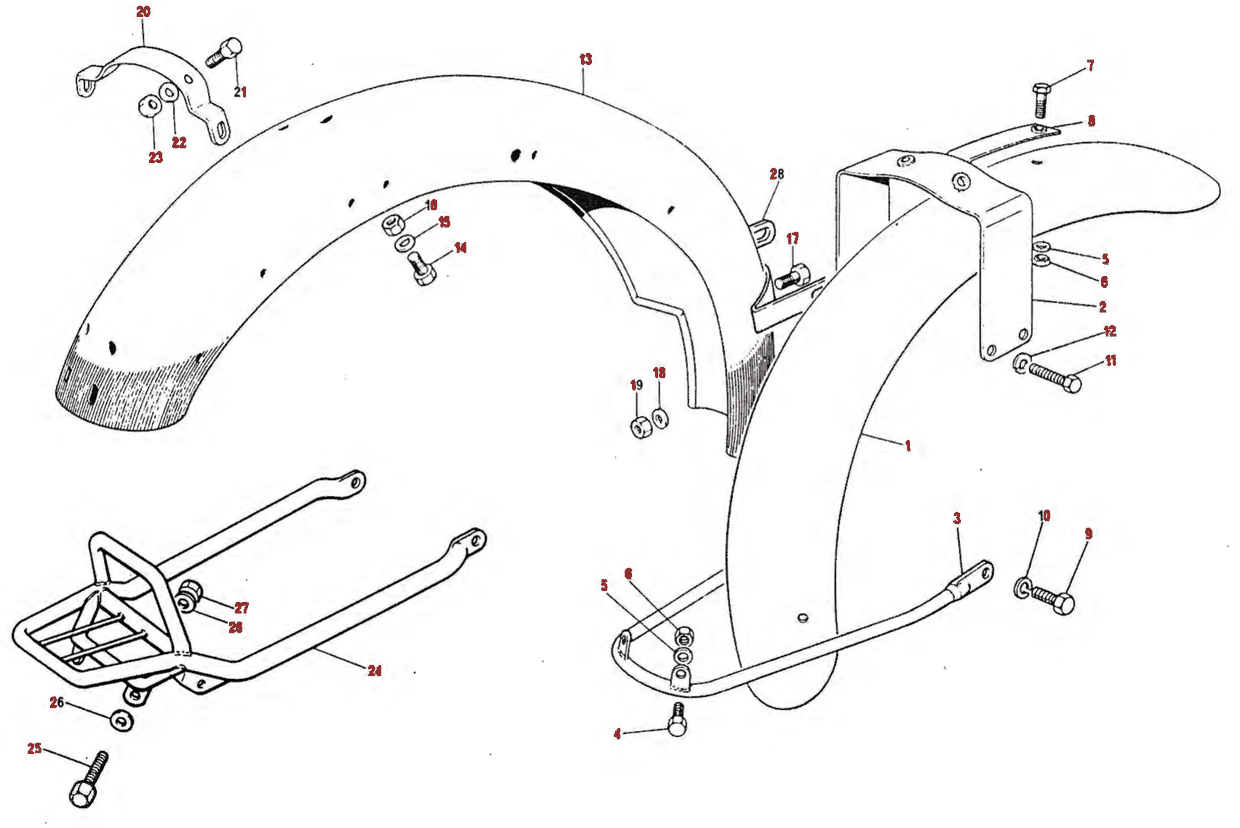

HomeMake: Triumph1978-82 Triumph 750 Twins T140D, T140EMudguards, Seats, Panels & TanksMudguards 1978–79
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |
Front fender chrome | 977039 | 1 | 1978-79 | View | |
| 2 |  |
Bridge piece assembly | 977004 | 1 | $66.00 | View | |
| 3 |  |
Rear stay | 974552 | 1 | $78.00 | View | |
| 4 |  |
Bolt, rear stay to blade | 140101 | 2 | $0.50 | View | |
| 5 |  |
Washer | 604245 | 5 | $0.99 | View | |
| 6 |  |
Nut | 141201 | 5 | $2.00 | View | |
| 7 |  |
Screw, bridge piece to blade | 142205 | 3 | $2.65 | View | |
| 8 |  |
Washer nylon | 217025 | 8 | $0.50 | View | |
| 9 |  |
Bolt, stay to spindle cap | 146114 | 2 | $1.30 | View | |
| 10 | Washer | 602428 | 2 | ||||
| 11 |  |
Bolt, bridge piece to fork leg | 140103 | 2 | $0.55 | View | |
| 12 | Washer | 602427 | 2 | ||||
| 13 | Rear fender | 837031 | 1 | 1978 only | |||
| 14 | |
Bolt | 140101 | 2 | Fender top fixing | $0.50 | View |
| 15 |  |
Washer | 602329 | 2 | Fender top fixing | $0.30 | View |
| 16 |  |
Nut | 141301 | 2 | Fender top fixing | $0.99 | View |
| 17 |  |
Bolt | 140114 | 2 | Fender front fixing | $0.65 | View |
| 18 |  |
Washer | 602330 | 2 | Fender front fixing | $0.45 | View |
| 19 |  |
Nut | 141302 | 2 | Fender front fixing | $2.00 | View |
| 20 |  |
Bridge - rear fender | 834600 | 1 | $55.00 | View | |
| 21 |  |
Bolt | 140102 | 2 | Bridge to fender | $0.85 | View |
| 22 | |
Washer | 602329 | 2 | Bridge to fender | $0.30 | View |
| 23 | |
Nut | 141301 | 2 | Bridge to fender | $0.99 | View |
| 24 | Grab rail | 837284 | 1 | 1979 only | |||
| 24 |  |
Grab rail | 835145 | 1 | 1978 only | $285.00 | View |
| 25 | |
Bolt | 140102 | 2 | Grab rail to fender | $0.85 | View |
| 26 | |
Washer | 602329 | 2 | Grab rail to fender | $0.30 | View |
| 27 | |
Nut | 141301 | 2 | Grab rail to fender | $0.99 | View |
| 28 | Lower front bracket | 832796 | 1 |
