Home>Make: Triumph>1978-82 Triumph 750 Twins T140D, T140E>Engine, Primary Drive & Clutch>Manifold & Tappets 1978–80

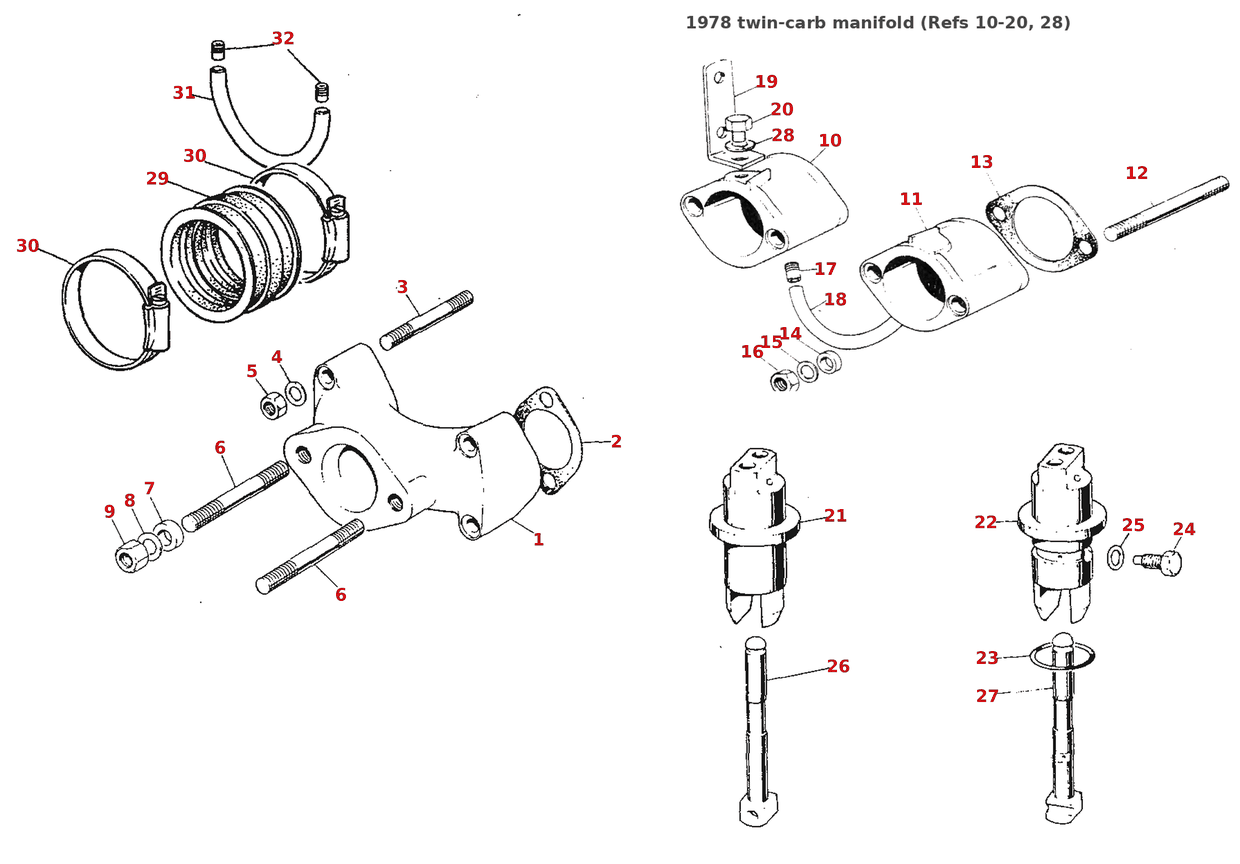

1978–80 Triumph 750 Twins Manifold & Tappets

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Inlet manifold	713556	1	TR7 only (1980). TR7RV	$99.00	View
2	Joint washer	705660	2	TR7 only (1980). TR7RV	$4.50	View
3	Stud	211876	4	TR7 only (1980). TR7RV; Manifold to head	$2.40	View
4	Washer	604248	4	TR7 only (1980). Manifold to head; TR7RV	$0.99	View
5	Nut	211877	4	TR7 only (1980). TR7RV; Manifold to head	$0.75	View
6	Stud	211996	2	TR7 only (1980). Carburettor to manifold; TR7RV	$11.30	View
7	Insulation ring	709554	2	TR7 only (1980). Carburettor to manifold; TR7RV	$0.50	View
8	Cup	709555	2	TR7 only (1980). Carburettor to manifold; TR7RV	$2.26	View
9	Nut	141301	2	TR7 only (1980). Carburettor to manifold; TR7RV	$0.99	View
10 & 11	Inlet manifold - L.H & RH	713339	Sold as Pair	1978 only. T140V	$108.00	View
12	Stud	712813	4	1978 only. Carburettor to manifold and head; T140V	$9.30	View
13	Joint washer	713573	2	1978 only. Carburettor to manifold and head; T140V	$2.10	View
14	Insulating ring	709554	4	1978 only. Carburettor to manifold and head; T140V	$0.50	View
15	Cup	709555	4	1978 only. Carburettor to manifold and head; T140V	$2.26	View
16	Nut	141301	4	1978 only. Carburettor to manifold and head; T140V	$0.99	View
17	Connector	713313	2	1978 only. T140V
18	Connector pipe	713577	1	1978 only. T140V	$4.50	View
19	Bracket - Air control lever	834898	1	1978 only. T140V
20	Screw, bracket to manifold	146113	1	1978 only. T140V		View
21	Inlet tappet guide block	717194	1	1980 only	Original price was: $59.00.Current price is: $38.50.	View
21	Inlet tappet guide block	709352	1	1978–79 only	$66.00	View
22	Exhaust tappet guide block	717195	1	1980 only	$52.00	View
22	Exhaust tappet guide block	709353	1	1978–79 only	$56.00	View
23	'O' ring	707563	1	Qty 1978: 2, 1979: 2, 1980: 1	$1.85	View
24	Set bolt	970200	2		$6.80	View
25	Washer	702441	2		$1.30	View
26	Inlet tappet	717008	2		$86.00	View
27	Exhaust tappet	708801	2		$104.01	View
28	Spring, washer	604260	1	1978–79 only	$0.45	View
29	Connecting rubber carb to head	607076	2	1979–80 only; not TR7 (1980)	Original price was: $32.00.Current price is: $28.60.	View
30	Connecting rubber clip	607077	4	1979–80 only; not TR7 (1980)	$5.70	View
31	Connector pipe - balance	717051	1	1979–80 only; not TR7 (1980)
32	Connector stub	717103	2	1979–80 only; not TR7 (1980)	$6.30	View
