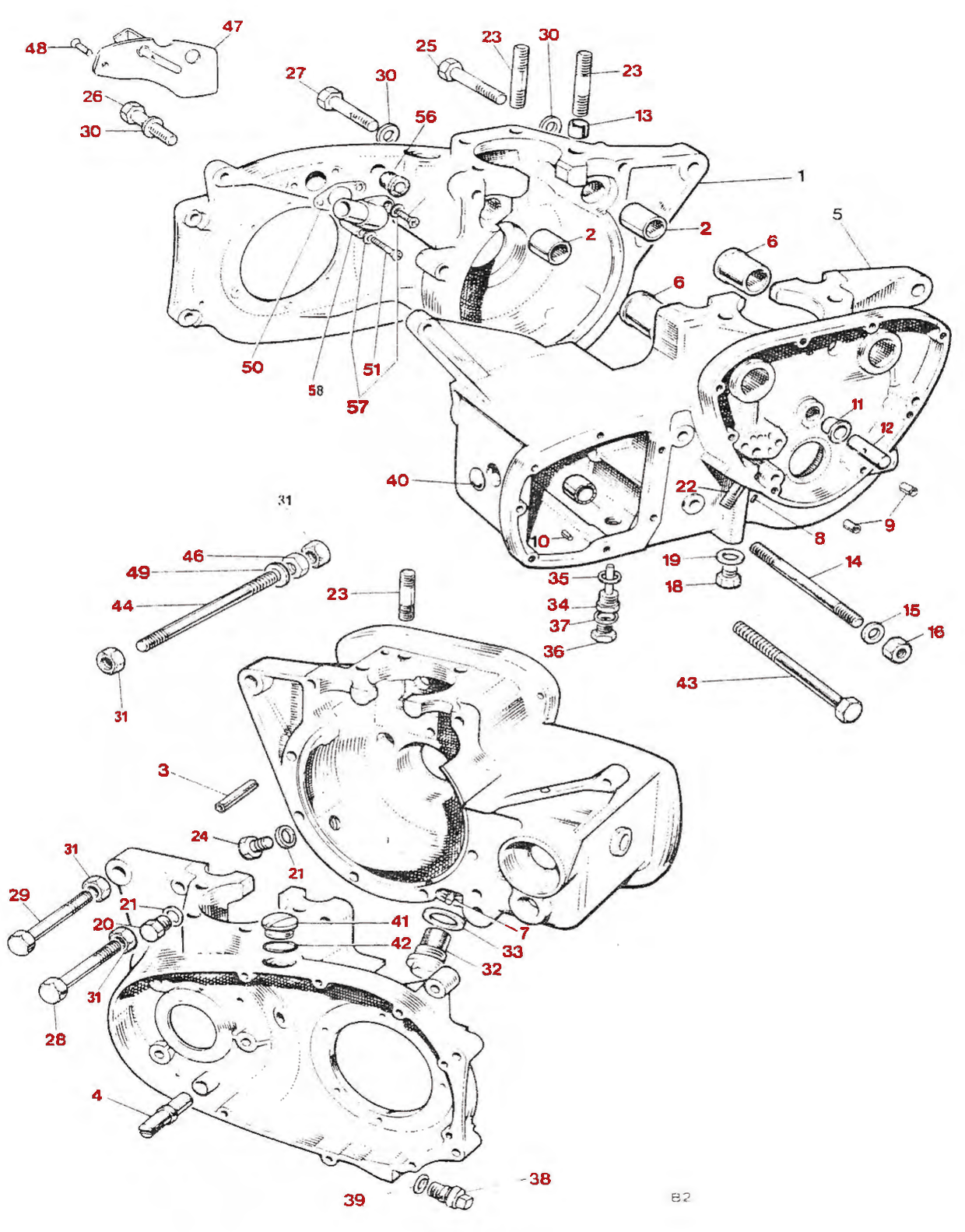

1978–82 Triumph 750 Twins Crankcase

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
2	Camshaft bush L.H.	710287	2		$24.00	View
3	Hollow dowel, crankcase joint	713989	1
4	Chain tensioner Privot Pin	717258	1	1980–82 only
4	Chain tensioner abutment	705088	1	1978–79 only	$17.00	View
6	Camshaft bush R.H.	710286	2		$26.00	View
7	Scavenge pipe	704538	1		$3.50	View
8	Locating peg (at oil pipes)	706386	1	Qty 1978: Reference only, 1979: Reference only, 1980: 1, 1981: 1, 1982: 1
9	Hollow dowel	570989	2		$4.10	View
10	Locating peg (L/S at thrust washer)	570912	1
11	Bush-intermediate spindle	717492	1	1981–82 only; not T140ES (1981); T140E only (1982)
11	Needle roller bearing, layshaft	571606	1	1978–80 only	$22.95	View
12	Intermediate wheel spindle	717489	1	1982 only
12	Intermediate wheel spindle	700375	1	1978–80 only	$22.00	View
13	Hollow dowel, cylinder base	708751	2		$5.01	View
14	Stud, rear	141445	1		$4.25	View
15	Plain washer	604246	2		$0.55	View
16	Nut	141303	1		$1.45	View
17	Needle roller bearing layshaft	571606	1	1981–82 only	$22.95	View
17	Hollow dowel, tappet oil feed	701532	1	1978–80 only; Qty 1978: 2, 1979: 2, 1980: 1	$4.70	View
18	Oilway plug	709330	1		$1.60	View
19	Copper washer	821880	1		$1.50	View
20	Tachometer drive plug (L.H. thread)	211871	1		$7.90	View
21	'O' ring, ignition timing hole plug	373761	1		$2.55	View
22	Oil pipe stud	211863	1		$2.15	View
23	Cylinder stud inner	211865	4		$5.35	View
23	Cylinder stud outer	713013	4		$9.30	View
24	Plug, timing hole	211872	1		$11.95	View
25	Bolt, rear	211870	1		$0.70	View
26	Bolt, top rear	146220	1		$0.95	View
27	Bolt, top front	146223	1		$0.85	View
28	Bolt, long - crankcase halves	140230	1		$3.30	View
29	Bolt, short - crankcase halves	211823	2		$5.60	View
30	Plain washer	602330	10		$0.45	View
31	Nut	141302	5		$2.00	View
32	Crankcase filter	709336	1		$48.00	View
33	'O' Ring	708782	1		$1.85	View
34	Drain plug (with level tube)	572167	1		$15.00	View
35	Fibre washer	607132	1	1982 only
35	Fibre washer	571257	1	1978–81 only	$1.00	View
36	Level plug	210543	1		$0.90	View
37	Copper washer	702441	1	1978, 1982 only	$1.30	View
37	Copper washer	607132	1	1979–81 only	$1.30	View
38	Chain adjuster plug	717259	1	1980–82 only
38	Drain and adjuster plug	572259	1	1978–79 only	$12.00	View
39	Washer adjuster plug	706299	1	1979–82 only	$1.95	View
39	'O' ring	707431	1	1978 only	$1.95	View
40	Blanking plug	571920	1	1978–79, 1982 only	$0.61	View
40	Blanking plug	607268	1	1980–81 only
41	Plug inspection	572166	1	Qty 1978: 2, 1979: 2, 1980: 1, 1981: 1, 1982: 1	$12.00	View
42	'O' ring	708782	1	Qty 1978: 2, 1979: 2, 1980: 1, 1981: 1, 1982: 1	$1.85	View
43	Bolt, rear - crankcase halves	146242	1		$2.50	View
44	Stud, crankcase halves	210669	1	CHECK: 1978: print unclear, both reads agree (last digit 9 has broken tail, could be 7 (21-0667))	$13.00	View
46	Nut, exhaust ties	140402	2		$1.60	View
47	Breather cover plate assembly	709334	1	1979–82 only
47	Breather cover plate assembly	711072	1	1978 only
48	Screw	711077	1	1979–82 only	$1.00	View
48	Screw	711075	1	1978 only	$1.85	View
49	Spring washer	602428	2		$0.45	View
49	Crankcase TS/DS	717401	1	1980 only
49	Crankcase TS/DS	717021	1
50	Joint washer	711460	1		$1.00	View
51	Screw	707354	2		$0.95	View
52	Tube, primary chain oiler	711078	1	1978 only		View
53	Clip	704705	1	1978 only	$6.30	View
54	Spring washer	604250	1	1978 only
55	Bolt (7/16 in. U.H.)	146101	1	1978 only	$0.90	View
56	Grommet, alternator leads - external	711345	1		$1.55	View
57	Washer, outlet stub screw	706559	2
58	Outlet stub	714044	1
*	Crankcase TS/DS	717021	1	1979 only
