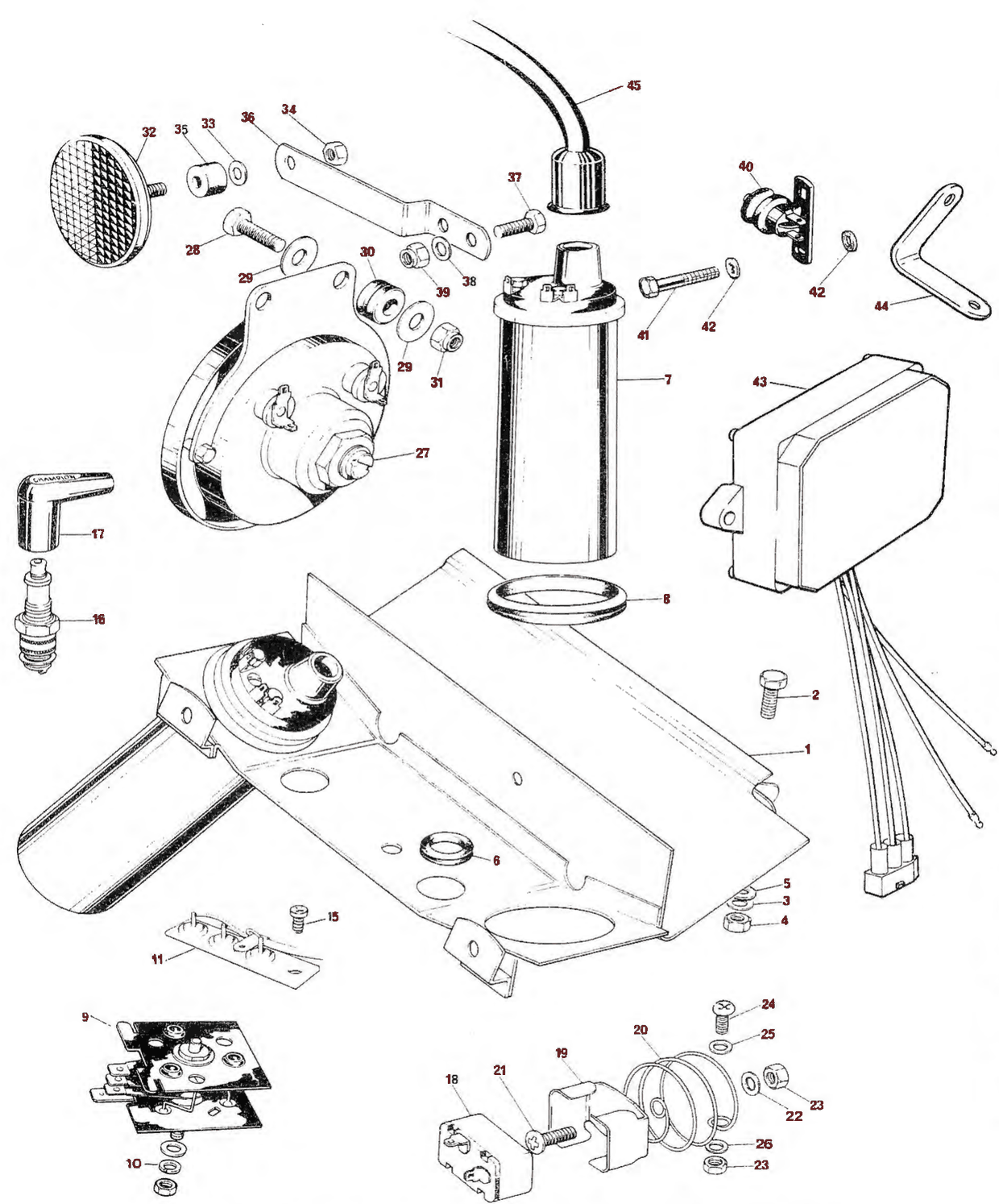

1978–82 Triumph 750 Twins Electrical Components

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Coil and tool tray assembly	837502	1	1980–82 only
1	Coil and tool tray assembly	837041	1	1978–79 only
2	Bolt	140102	1		$0.85	View
3	Washer	602329	2		$0.30	View
4	Nut	141301	1		$0.99	View
5	Rubber washer	707554	1		$1.75	View
6	Grommet, wiring harness	826784	2		$0.50	View
7	Ignition coil (17-M-12)	602203	2	Points Models, USE 6volt for Tri- Spark or Electronic ignition	Original price was: $83.00.Current price is: $74.80.	View
8	Coil grommet	829561	2		$9.30	View
9	Rectifier complete with nut	607152	1	1982 only. negative earth: Replace with Rectifier Regulator Unit
9	Rectifier complete with nut	997051	1	1979–81 only. negative earth: Replace with Rectifier Regulator Unit
9	Rectifier	600786	1	1978 only
10	Shakeproof washer	703887	1	1979–82 only	$0.85	View
10	Nut	825338	1	1978 only	$1.16	View
11	Diode pack-zener	607326	1	1981–82 only- Replace with Rectifier Regulator Unit
11	Amplifier unit	607130	1	1979–80 only
11	Condenser C/W Nut & insulating washer	607018	2	1978 only
15	Screw-zener fixing	217084	2	1981–82 only
15	Zener diode	607156	1	1979–80 only. Negative earth
15	Zener diode	600987	1	1978 only Replace with Rectifier Regulator Unit
16	Sparking plug	607237	2	1980–82 only		View
16	Sparking plug	600911	2	1978–79 only. CHAMPION		View
17	Plug cover	600262	2	USA screened; CHAMPION	$21.00	View
17	Plug cap - screened	607124	2	1980–82 only	$13.50	View

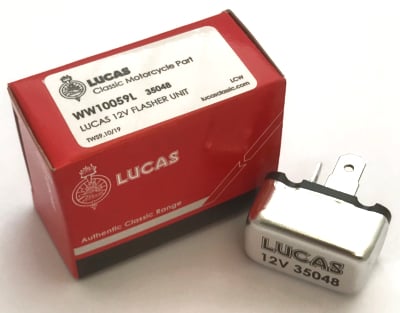

18	Flasher unit	991201	1	Change to LED Flasher with LED Bulbs	$19.00	View

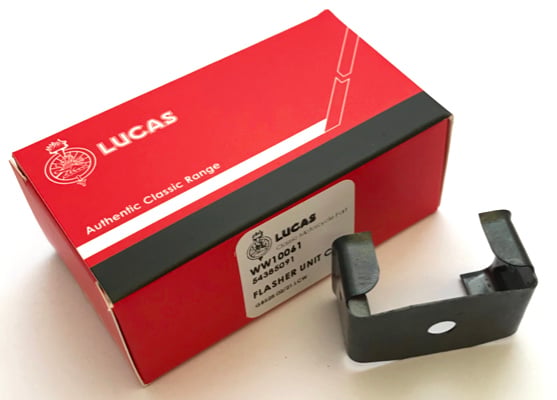

19	Clip, flasher unit	991204	1		$17.00	View
20	Spring	603614	1	Flasher unit attachment
21	Screw	212079	1	Flasher unit attachment
22	Washer	602391	1	Flasher unit attachment	$0.61	View
23	Nut	217009	2	Flasher unit attachment	$0.75	View
24	Screw - spring to tool tray	212079	1	1980–82 only
24	Bolt, spring to battery carrier	212120	1	1978 only
25	Plain washer	971388	1
26	Washer	602416	2		$0.35	View
27	Horn	607067	1	1979–82 only
27	Horn	991245	1	1978 only
28	Bolt	140103	2	Horn attachment	$0.55	View
29	Washer	602347	4	Horn attachment
30	Grommet	603161	2	Horn attachment	$1.85	View
31	Nut	141301	2	Horn attachment	$0.99	View
32	Reflector - amber	991161	2		$14.50	View
33	Washer	602416	2	Reflector Mounting	$0.35	View
34	Nut	823799	2	Reflector Mounting	$1.10	View
35	Mounting rubber	833522	2	Reflector Mounting	$0.80	View
36	Reflector bracket	833764	2	Use with 4 gall tank; Use with 4 Gall tank
37	Bolt	212120	2	Bracket to frame
38	Washer	602391	2	Bracket to frame	$0.61	View
39	Nut	210778	2	Bracket to frame	$0.75	View
40	Rear stop light switch 118SA	991028	1	1978–82 only	Original price was: $22.00.Current price is: $18.00.	View
41	Screw, rear stop switch	217010	2		$0.40	View
42	Plain washer	971388	4	Qty 1978: 2, 1979: 4, 1980: 4, 1981: 4, 1982: 4
42	Grommet (for spark plug cover)	704144	2	1979–80 only. Not illustrated	$1.99	View
43	Amplifier unit	607130	1	1981–82 only: No Longer Available
43	H.T. cable	603923	2	1979–80 only. USA-non screened	$29.00	View
43	Rubber washer	837060	2	1978 only
43	Grommet (for spark plug cover)	704144	2	1978 only. Not illustrated	$1.99	View
44	Bracket-amplifier unit fixing	837869	2	1981–82 only
44	H.T. cable	607120	2	1979–82 only	$29.00	View
44	H.T. Cable	603923	2	1978 only
N I	Bolt-bracket fixing	140102	2	1982 only	$0.85	View
N I	Washer-bracket fixing	602329	2	1982 only	$0.30	View
N I	Nut	141301	2	1982 only	$0.99	View
NI	Bolt-bracket fixing	140102	2	1981 only	$0.85	View
NI	Washer-bracket fixing	602329	2	1981 only	$0.30	View
NI	Nut	141301	2	1980–81 only	$0.99	View
NI	Screw - amplifier fixing	140103	2	1980 only	$0.55	View
