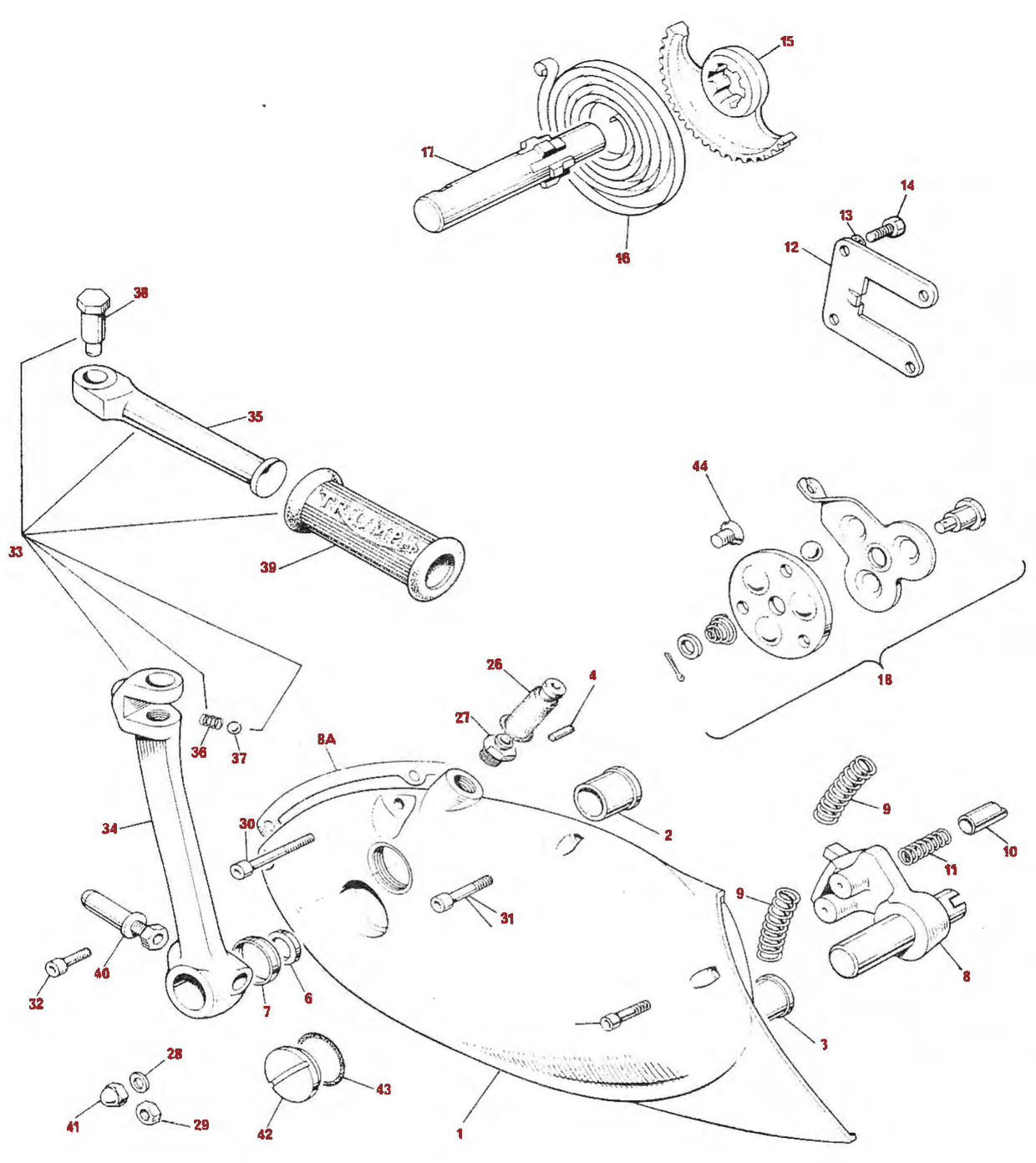

1978–82 Triumph 750 Twins Gearbox Outer Cover

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Gearbox Outer Cover	577050	1	1979–82 only
1	Gearbox Outer Cover	577014	1	1978 only
2	Kickstarter spindle bush	570023	1		$24.00	View
3	Gearchange spindle bush	577008	1		$5.50	View
4	Kickstarter spring anchor pin	570047	1		$0.45	View
5	Guide plate stud	210547	4	1978 only		View
6	Oil seal	571956	1		$4.05	View
7	Oil seal housing	571955	1		$9.10	View
8	Gearchange quadrant assembly	577021	1
8A	Gasket outer cover	711448	1		$7.00	View
9	Quadrant return springs	577051	2	1979–82 only	$4.70	View
9	Quadrant return spring	570404	2	1978 only
10	Gearchange quadrant plunger	574403	2		$25.00	View
11	Plunger spring	570405	2		$4.60	View
12	Guide plate	570407	1		$44.00	View
13	Serrated washer	701612	4		$0.45	View
14	Bolt - guide plate	146103	4	1979–82 only
14	Nut	140301	4	1978 only	$0.65	View
15	Kickstarter quadrant	574117	1		$112.00	View
16	Kickstarter return spring	570031	1		$16.01	View
17	Kickstarter axle	574756	1		$69.00	View
18	Clutch lever assembly	577033X	1	1979–82 only	$52.00	View
19	Lever shaft	571710	1	1978–81 only	$9.45	View
20	Ball 3/8 in. diam.	602368	3	1978–81 only	$0.66	View
21	Thrust plate	574589	1	1978 only
22	Return spring	571712	1	1978–81 only	$2.45	View
23	Plain washer	573673	1	1978–81 only
24	Split pin (5/64 in. x 1/2 in.)	602701	1	1978–81 only; Qty 1978: Reference only, 1979: , 1980: 1, 1981: 1. Reference only	$0.45	View
25	Countersunk screw	211879	2	1978–81 only	$0.90	View
26	Rubber cover	571646	1		$4.99	View
27	Abutment for clutch cable	573762	1		$11.00	View
28	Plain washer	604247	2
29	Nut	141302	1		$2.00	View
30	Screw cover to crankcase	147013	2	1979–82 only
30	Screw	212162	2	1978 only
31	Screw outer cover to inner	147007	2	1979–82 only
31	Screw	146609	2	1978 only	$3.75	View
32	Screw outer cover to inner	147006	1	1979–82 only	$2.20	View
32	Screw	146608	1	1978 only	$2.70	View
33	Folding Kickstarter Assembly	577018	1
34	Kickstarter crank	572173	1
35	Kickstarter pedal	577017	1
36	Pedal locating spring	571167	1		$1.20	View
37	Steel ball, 1/4 in. diam.	602364	1	1978–79, 1982 only	$0.50	View
37	Steel ball, 1/4 in. diam.	602324	1	1980–81 only	$0.41	View
38	Pedal bolt	210541	1		$8.90	View
39	Pedal rubber	572330	1			View
40	Cotter pin c/w nut and washer	574356	1		$7.70	View
41	Domed nut	210544	1		Original price was: $8.40.Current price is: $6.71.	View
42	Filler plug	572166	1		$12.00	View
43	'O' ring	708782	1		$1.85	View
44	Screw	211879	1	1982 only	$0.90	View
NOT ILLUSTRATED	Clutch Lever Assembly	574587	1	1978 only. Items 18 to 24 inclusive
