HomeMake: Triumph1978-82 Triumph 750 Twins T140D, T140EElectricalHeadlamp & Flasher Lamps 1978
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |
Headlamp complete | 997004 | 1 | $330.00 | View | |
| 2 |  |
Headlamp rim | 990692 | 1 | $31.00 | View | |
| 3 |  |
Light unit | 997007 | 1 | H4 Headlight Unit | $104.01 | View |
| 4 |  |
Fixing wire | 990683 | 6 | $1.32 | View | |
| 5 & 6 |  |
Screw | 534296A | 1 | Screw and Plate Sold as Set | $4.95 | View |
| 7 |  |
Main bulb 45/40 w | 068019 | 1 | H4 Bulb | $6.20 | View |
| 8 |  |
Bulbholder | 997008 | 1 | $4.20 | View | |
| 9 |  |
Pilot bulb | 990548 | 1 | $1.55 | View | |
| 10 |  |
Pilot bulbholder | 991213 | 1 | $24.50 | View | |
| 11 |  |
Warning light, red | 991208 | 1 | $12.00 | View | |
| 12 |  |
Warning light, green | 991209 | 1 | $12.00 | View | |
| 13 |  |
Warning light, amber | 991207 | 1 | $12.00 | View | |
| 14 |  |
Sealing washer | 991210 | 3 | $3.10 | View | |
| 15 |  |
Light Switch 3 Position Toggle | 991251 | 1 | Original price was: $36.00.$31.00Current price is: $31.00. | View | |
| 16 |  |
Distance piece, headlamp bolt | 974125 | 2 | $9.70 | View | |
| 17 |  |
Bulb, warning light | 990537 | 3 | $2.95 | View | |
| 18 | Screw, headlamp fixing | 991223 | 2 | ||||
| 19 |  |
Washer, headlamp fixing | 991224 | 2 | $0.50 | View | |
| 20 |  |
Ignition Switch | 600989 | 1 | $47.00 | View | |
| 21 | Nut | Lucas | 1 | ||||
| 22 | Ignition Lock with Key | 826981 | 1 | ||||
| 23 |  |
Ignition key | 600622 | 1 | state serial number | $22.00 | View |
| 24 |  |
Cover, ignition switch | 972262 | 1 | $4.95 | View | |
| 25 |  |

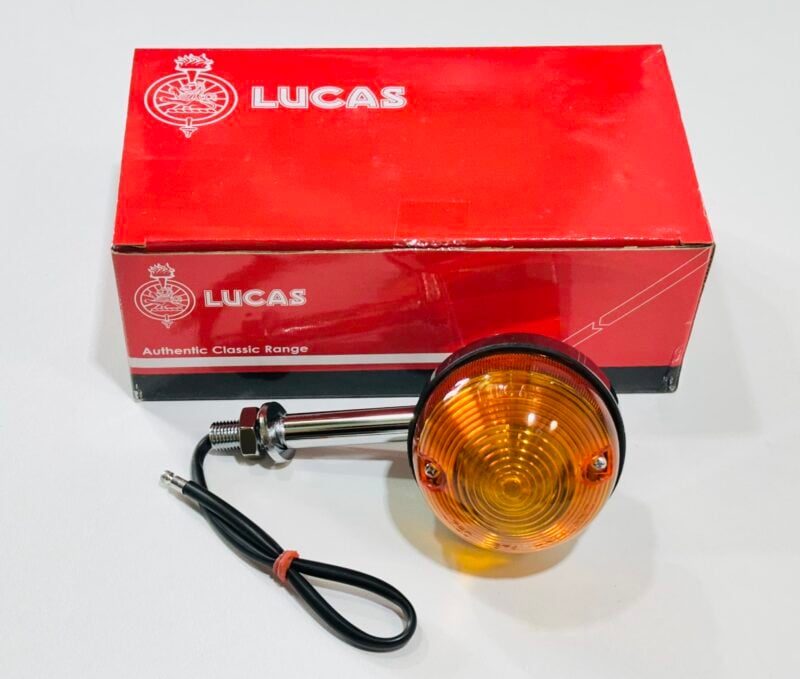

Flasher Lamp Front | 604104 | 2 | Short Stem | $44.00 | View |
| 25 |  |

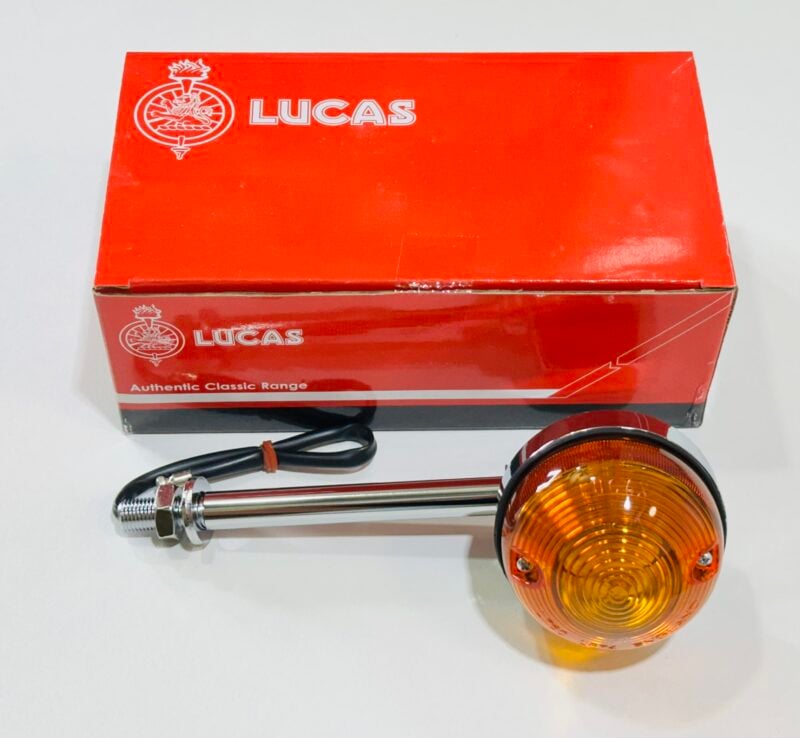

Flasher Lamp Rear | 604105 | 2 | LONG STEM | Original price was: $49.01.$45.00Current price is: $45.00. | View |
| 26 |  |
Lens | 191191 | 1 | $12.00 | View | |
| 30 |  |
Bulb | 991192 | 1 | $3.50 | View | |
| 31 | Screw | 991193 | 2 | ||||
| 33 | Battery carrier assembly | 834610 | 1 | ||||
| 34 |  |
Battery tray moulding | 828091 | 1 | $8.80 | View | |
| 35 |  |
Retaining strap | 829353 | 1 | $7.00 | View | |
| 36 |  |
Buckle | 829355 | 1 | $4.70 | View | |
| 37 | Protective strip | 827380 | 4 | ||||
| 38 |  |
Shoulder screw | 832508 | 3 | Battery carrier mounting | $5.90 | View |
| 39 |  |
Rubber bush | 826039 | 3 | Battery carrier mounting | $4.05 | View |
| 40 |  |
Nut | 141301 | 1 | Battery carrier mounting | $0.99 | View |
| 41 | Plain washer | 602329 | 1 | Battery carrier mounting | |||
| 42 | Battery | 990719 | 1 | ||||
| 43 |  |
Plain washer | 602332 | 6 | Flasher lamp stanchion | $0.65 | View |
| 44 |  |
Serrated washer | 372331 | 6 | Flasher lamp stanchion | $0.50 | View |
| 45 |  |
Nut | 140404 | 6 | Flasher lamp stanchion | $0.65 | View |
| 45 | Main Wiring harness | 191962 | 1 | Not illustrated | |||
| 45 | Decal, warning lights | 607004 | 1 | Not illustrated | |||
| 45 | Decal, light switch | 607005 | 1 | Not illustrated | |||
| 45 | Decal, ignition switch | 607003 | 1 | Not illustrated | |||
| 45 | Diode & lead assy. | 607079 | 1 | Engine start/Lights on |
