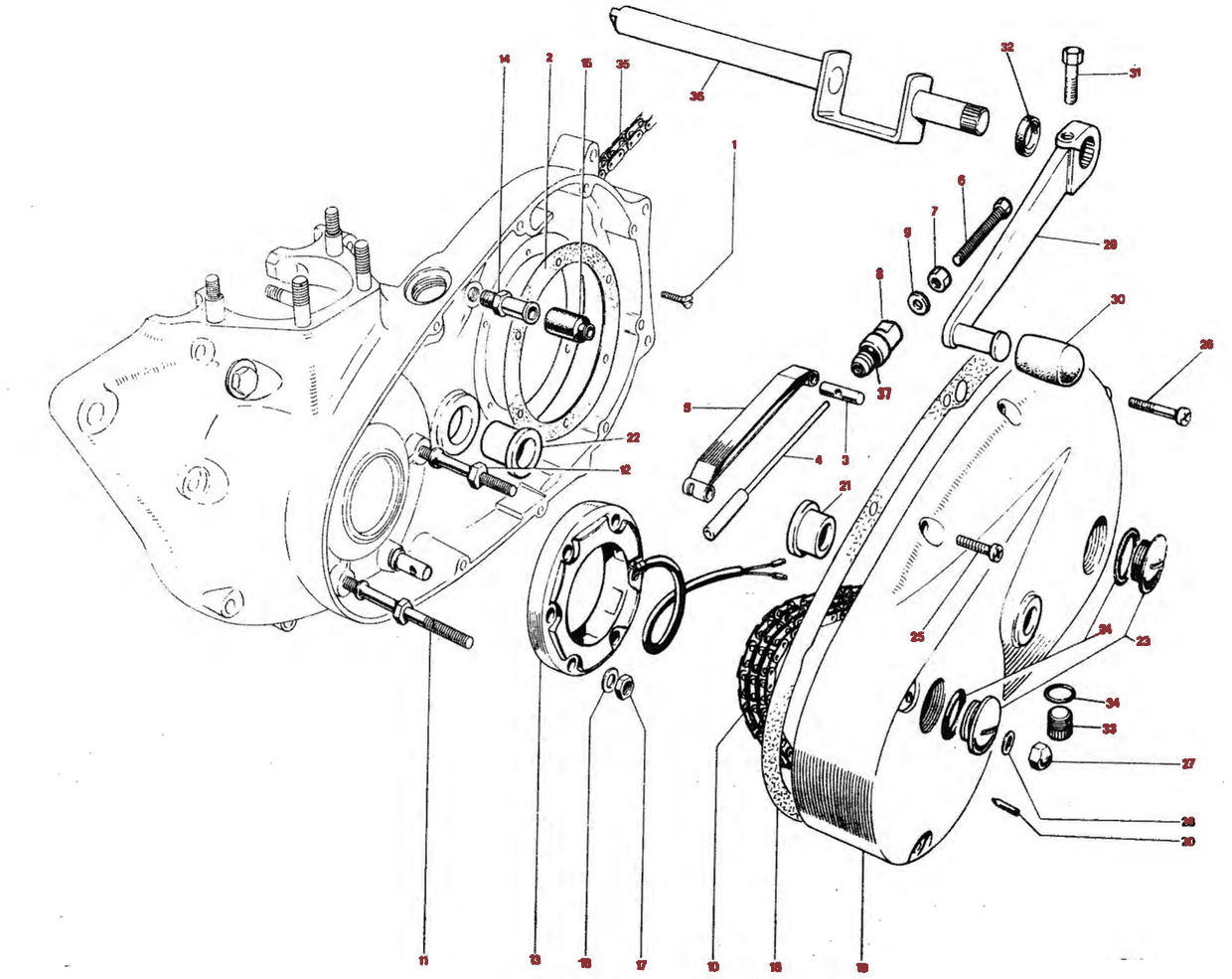

HomeMake: Triumph1978-82 Triumph 750 Twins T140D, T140EEngine, Primary Drive & ClutchChaincase & Chains 1980–82
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |
Countersunk screw | 703821 | 6 | $1.10 | View | |
| 2 |  |
Joint washer | 711419 | 1 | $4.96 | View | |
| 3 |  |
Trunnion | 705087 | 1 | $4.20 | View | |
| 4 | Tie rod - chain tensioner | 717255 | 1 | ||||
| 5 |  |
Blade - chain tensioner | 705085 | 1 | $41.80 | View | |
| 6 |  |
Screw - chain adjuster | 217064 | 1 | $0.70 | View | |
| 7 |  |
Nut - screw | 140401 | 1 | $0.80 | View | |
| 8 | Plug - tensioner screw | 717259 | 1 | ||||
| 9 | Washer - for Nut | 607268 | 1 | ||||
| 10 |  |
Primary chain, 3/8 in. Triplex x 84 links | 604125 | 1 | $174.00 | View | |
| 11 |  |
Stator stud | 212199 | 2 | $22.00 | View | |
| 12 | |
Stator stud | 212198 | 1 | $22.00 | View | |
| 13 | Alternator CPTE | 607256 | 1 | 1982 only | |||
| 13 |  |

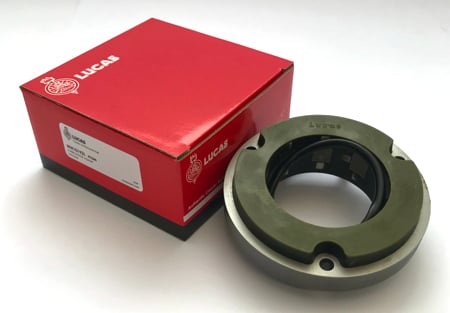

Stator | 47244 | 1 | | 1981 only | $257.40 | View |
| 13 |  |
Stator RH24 | 997057 | 1 | 1980 only. Lucas 47252 | View | |
| 14 |  |
Sleeve nut | 709360 | 1 | $11.00 | View | |
| 15 |  |
Rubber grommet | 704144 | 1 | $1.99 | View | |
| 16 | Plain washer | 604247 | 3 | ||||
| 17 |  |
Self-locking nut | 211852 | 3 | 1982 only | $2.00 | View |
| 17 |  |
Self-locking nut | 140702 | 3 | 1980–81 only | $3.95 | View |
| 18 |  |
Joint washer | 717009 | 1 | $15.00 | View | |
| 19 | Chaincase | 717464 | 1 | 1981–82 only | |||
| 19 | Chaincase | 717003 | 1 | 1980 only | |||
| 20 | Timing pointer | 713892 | 1 | ||||
| 21 |  |
Bush - footchange spindle | 577055 | 1 | 1981–82 only | $4.25 | View |
| 21 |  |
Bush - footchange spindle | 570023 | 1 | 1980 only | $24.00 | View |
| 22 |  |
Bush - footchange spindle inner | 577009 | 1 | $7.50 | View | |
| 23 |  |
Inspection plug | 713895 | 2 | $17.05 | View | |
| 24 | 'O' ring | 713896 | 2 | ||||
| 25 |  |
Screw | 147006 | 6 | $2.20 | View | |
| 26 | Screw | 147019 | 2 | ||||
| 27 |  |
Domed nut | 210544 | 2 | Original price was: $8.40.$6.71Current price is: $6.71. | View | |
| 28 |  |
Copper washer | 821880 | 2 | CHECK: 1981: second read gave B2-1880 (medium first character is printed looking like a letter B (flat left side); alternative reading 8, i.e. 82-1880) | $1.50 | View |
| 29 |  |
Gearchange pedal | 577010 | 1 | $71.01 | View | |
| 30 |  |
Pedal rubber | 572331 | 1 | 1982 only | $6.50 | View |
| 30 |  |
Pedal rubber | 572450 | 1 | 1980–81 only | $4.15 | View |
| 31 |  |
Bolt | 140201 | 1 | $1.00 | View | |
| 32 |  |
Oil seal-spindle | 571956 | 1 | 1981–82 only | $4.05 | View |
| 32 |  |
'O' ring shift spindle | 602640 | 1 | 1980 only | $2.00 | View |
| 33 | Drain plug - primary cover | 147017 | 1 | ||||
| 34 |  |
'O' ring - drain plug | 706299 | 1 | $1.95 | View | |
| 35 |  |
Rear chain 5/8 in. x 3/8 in. x 107 links | 602118 | 1 | 1980–81 only | View | |
| 36 | Footchange spindle | 577062 | 1 | 1981–82 only | |||
| 36 | Footchange spindle | 577003 | 1 | 1980 only | |||
| 37 | |
'O' Ring for plug - Ref. line 8 | 706299 | 1 | $1.95 | View |
