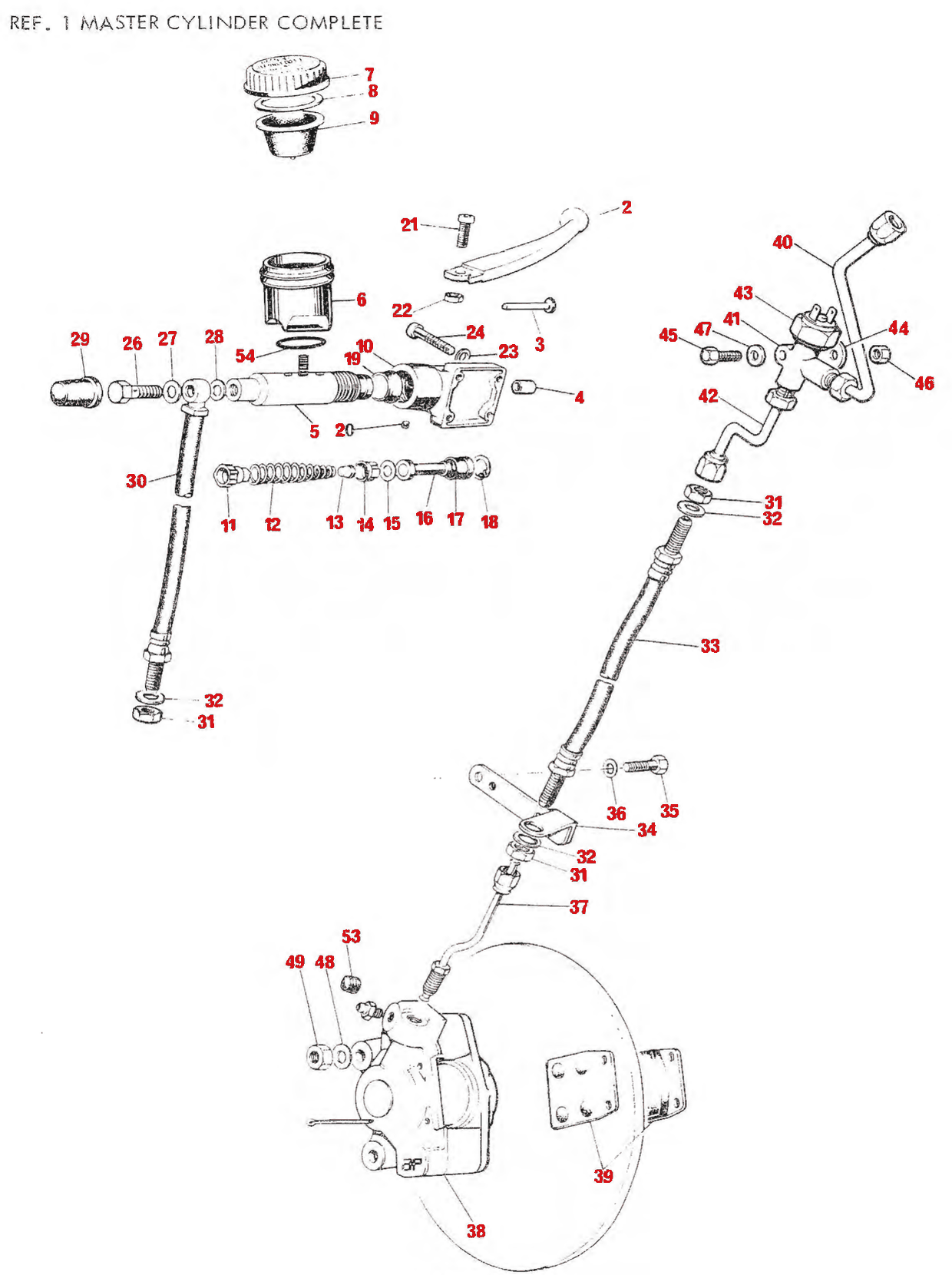

1979–82 Triumph 750 Twins Front Brake

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Master Cylinder Assy	607163	1		$373.00	View
2	Brake lever	975074	1		$32.00	View
3	Push rod	607158	1	No Longer Available Purchase
4	Bush for pushrod	607165	1
5	Barrel & stud assembly	997027	1
6	Body Reservoir	604397	1		$21.00	View
7	Cap	604365	1		$24.00	View
8	Washer	604328	1		$2.10	View
9	Diaphragm	604366	1		$11.00	View
10	Master cyl mtg body	607164	1		$104.50	View
11	Trap valve	AP.LTD	1	Use 99-2768; Master Cylinder Seal Kit	$31.00	View
12	Spring	AP.LTD	1	Ref only
13	Spring retainer	AP.LTD	1	Ref only
14	Primary cup	AP.LTD	1	Use 99-2768; Ref only	$31.00	View
15	Piston washer	AP.LTD	1	Use 99-2768; Ref only
16	Piston	AP.LTD	1	Ref only
17	Secondary cup	AP.LTD	1	Use 99-2768; Ref only
18	Circlip	AP.LTD	1	Ref only
19	Rubber boot	AP.LTD	1	Use 99-2768; Ref only
20	Grub screw	AP.LTD	1	Ref only
21	Pivot screw	212191	1		$0.90	View
22	Nut	141201	1		$2.00	View
23	Washer	231555	4
24	Screw	217038	4
25	Plug	977037	1	1979 only
26	Banjo bolt	604183	1		$17.00	View
27	Sealing washer	604182	1		$2.31	View
28	Sealing washer	604184	1		$2.20	View
29	Rubber boot	604626	1		$12.00	View
30	Hose, master cylinder/top yoke c/w boot	607174	1	for high handlebar		View
30	Hose, master cylinder/top yoke	604177	1	For low handlebar; for low handlebar	$37.00	View
31	Locknut	604180	3		$0.55	View
32	Washer	702288	3		$0.30	View
33	Hose, bottom yoke/fork leg	604175	1			View
34	Bracket - pipe support	837064	1
35	Bolt	140103	4	Qty 1979: 2, 1980: 4, 1981: 4, 1982: 4	$0.55	View
36	Washer	602427	4	Qty 1979: 2, 1980: 4, 1981: 4, 1982: 4	$0.30	View
37	Pipe, fork leg/caliper	604178	1		$44.00	View
38	Caliper	607478	1	1982 only
38	Caliper	604101	1	1979–81 only	$389.00	View
39	Brake pad kit	607437	1	1982 only	$73.00	View
39	Brake pad kit	992769	1	1979–81 only	$43.00	View
40	Pipe - top lug to 'T'	607177	1
41	'T' piece	607176	1		$34.20	View
42	Pipe - 'T' to middle lug	607178	1
43	Brake switch	607155	1		$31.00	View
43	Washer brake switch	701335	1	1979 only.	$2.31	View
44	Bracket 'T' piece	977202	1	1982 only
44	Bracket 'T' piece	977042	1	1979–81 only
45	Screw - bracket to 'T'	140105	1		$1.00	View
46	Nut - bracket to 'T'	141301	1		$0.99	View
47	Washer - bracket to 'T'	602329	1		$0.25	View
48	Washer	602331	2	Caliper to outer member; Caliper to oute[r] member	$0.55	View
49	Nut	141303	2	Caliper to outer member; Caliper to oute[r] member	$1.45	View
50	Cover, caliper	374263	1	1979–81 only	$45.10	View
51	Screw, cover attachment	212196	2	1979–81 only	$1.35	View
52	Decal, caliper cover	604156	1	1979–81 only	$2.26	View
53	Cover, bleed nipple	604266	1	Girling part	$3.36	View
53	Front master cyl. seal kit	992768	1	1979 only	$31.00	View
54	'O' ring	604374	1		$2.40	View
Not illus.	Caliper seal kit	997006	1			View
Not illus.	Washer brake switch	701335	1	1980–82 only	$2.31	View
Not illus.	Front master cyl. seal kit	992768	1	1980–82 only	$31.00	View
