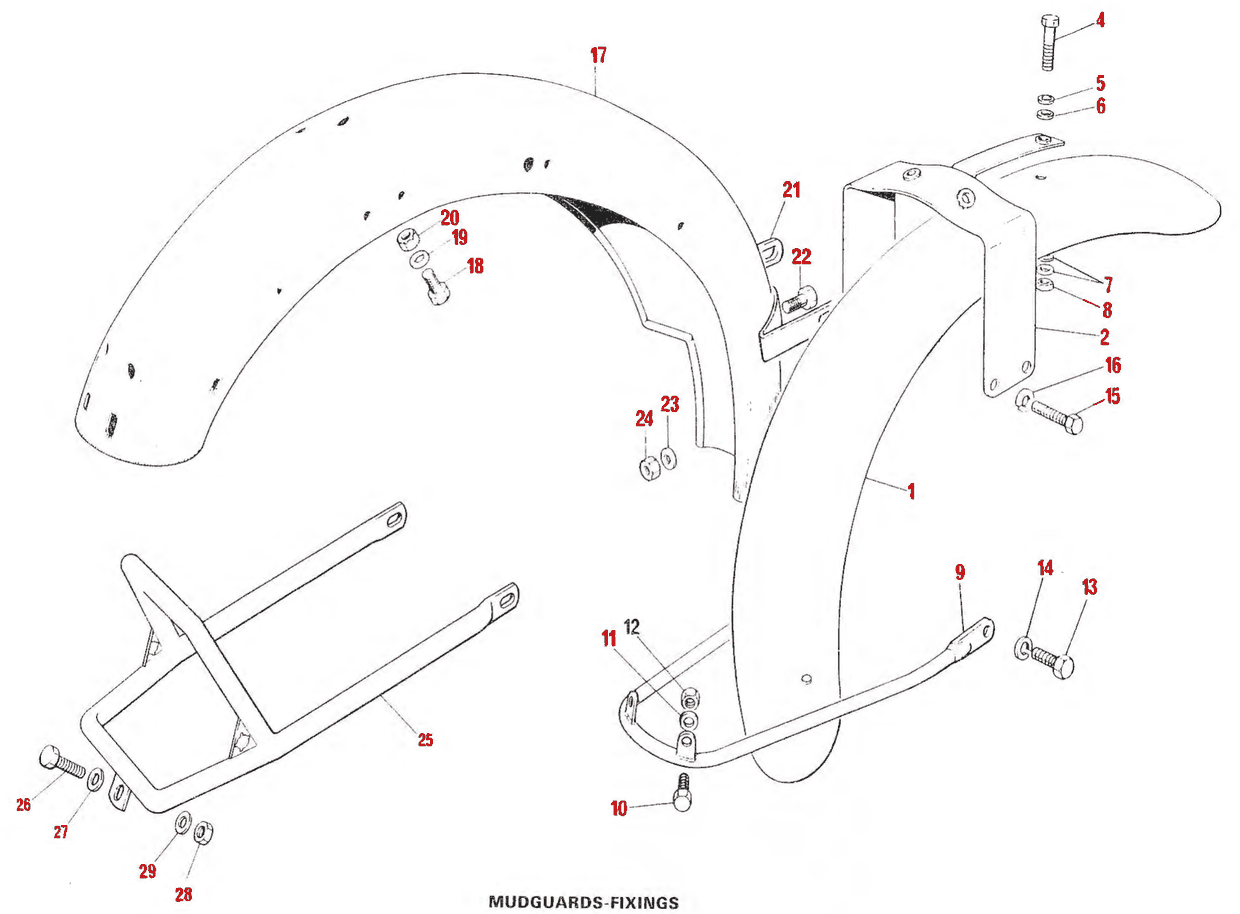

HomeMake: Triumph1978-82 Triumph 750 Twins T140D, T140EMudguards, Seats, Panels & TanksMudguards 1980–82
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |
Front mudguard | 977065 | 1 | 1980 only; T140D only | $220.00 | View |
| 1 |  |
Front mudguard | 977039 | 1 | 1980 only; not T140D | View | |
| 2 |  |
Bridge piece assembly | 977004 | 1 | $66.00 | View | |
| 4 |  |
Screw, bridge piece to blade | 142205 | 3 | Qty 1980: TR7 3 / T140E 3 / T140D 5, 1981: 3, 1982: 3 | $2.65 | View |
| 5 |  |
Washer plastic | 217025 | 3 | Qty 1980: TR7 3 / T140E 3 / T140D 5, 1981: 3, 1982: 3 | $0.50 | View |
| 6 | Washer plastic | 837077 | 2 | 1980 only; T140D only | |||
| 7 |  |
Washer plain | 602338 | 4 | 1980 only; T140D only | $0.99 | View |
| 8 | Nut - screw, bridge to blade | 217050 | 3 | 1982 only | |||
| 8 |  |
Nut - screw, bridge to blade | 141201 | 3 | 1980–81 only; Qty 1980: TR7 3 / T140E 3 / T140D 5, 1981: 3 | $2.00 | View |
| 9 |  |
Rear stay | 974552 | 1 | not T140D (1980) | $78.00 | View |
| 10 |  |
Bolt, rear stay to blade | 140101 | 2 | not T140D (1980) | $0.50 | View |
| 11 | Washer | 604245 | 2 | not T140D (1980) | |||
| 12 | |
Nut | 141201 | 2 | not T140D (1980) | $2.00 | View |
| 13 |  |
Bolt, stay to spindle cap | 146114 | 2 | not T140D (1980) | $1.30 | View |
| 14 |  |
Washer spring | 602428 | 2 | not T140D (1980) | $0.45 | View |
| 15 |  |
Bolt, bridge piece to fork leg | 140103 | 4 | $0.55 | View | |
| 16 |  |
Washer spring | 602427 | 4 | $0.30 | View | |
| 17 | Rear mudguard | 838030 | 1 | 1982 only | |||
| 17 | Rear mudguard | 837830 | 1 | 1981 only | |||
| 17 | Rear mudguard | 837492 | 1 | 1980 only; T140D only | |||
| 17 | Rear mudguard | 837494 | 1 | 1980 only; TR7 only | |||
| 18 | |
Bolt | 140101 | 2 | $0.50 | View | |
| 18 | Rear mudguard | 837490 | 1 | 1980 only; T140E only | |||
| 19 |  |
Washer | 602329 | 2 | $0.30 | View | |
| 20 |  |
Nut | 141301 | 2 | $0.99 | View | |
| 21 | Lower front bracket | 832796 | 1 | ||||
| 22 |  |
Bolt | 140114 | 2 | $0.65 | View | |
| 23 |  |
Washer | 602330 | 2 | $0.45 | View | |
| 24 |  |
Nut | 141302 | 2 | $2.00 | View | |
| 25 | Grab rail | 837555 | 1 | 1980, 1982 only; T140D only (1980) | |||
| 25 | Grab rail | 837547 | 1 | 1980–81 only; not T140D (1980) | |||
| 26 |  |
Bolt | 140102 | 1 | Qty 1980: 2, 1981: 2, 1982: 1 | $0.85 | View |
| 27 | |
Washer | 602329 | 1 | Qty 1980: 2, 1981: 2, 1982: 1 | $0.30 | View |
| 28 | |
Nut | 141301 | 1 | Qty 1980: 2, 1981: 2, 1982: 1 | $0.99 | View |
| 29 | |
Washer plastic | 217025 | 2 | $0.50 | View | |
| N.I. |  |
Washer Coil Tray to Mudguard | 972209 | 1 | 1982 only | $1.75 | View |
| N/I | Label - grab rail rack | 607206 | 1 | 1980–81 only; not T140D (1980) | |||
| NI | Strengthening channel | 977073 | 1 | 1980 only; T140D only |
