HomeMake: Triumph1978-82 Triumph 750 Twins T140D, T140EEngine, Primary Drive & ClutchOil Pump & Release Valve 1980–81
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |

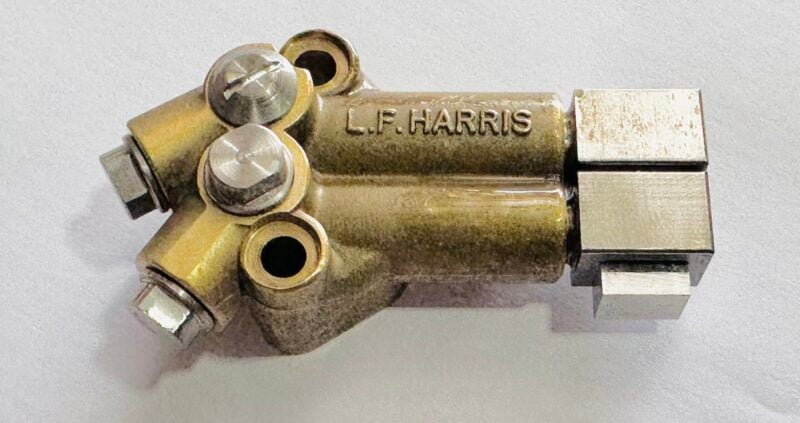

Oil pump complete | 717317 | 1 | $211.20 | View | |
| 2 | Pump body | 717253 | 1 | ||||
| 3 | Feed plunger | 709269 | 1 | ||||
| 4 | Scavenger plunger | 706681 | 1 | ||||
| 5 |  |
Drive block | 700495 | 1 | $13.00 | View | |
| 6 |  |
Valve ball | 602363 | 4 | $1.10 | View | |
| 7 |  |
Valve spring first valve | 700403 | 2 | 1980 only | $1.10 | View |
| 8 | Valve spring | 717260 | 4 | Qty 1980: 2, 1981: 4 | |||
| 9 | Screwed plug sq. head | 717314 | 3 | ||||
| 10 | Screwed plug slotted head | 717254 | 1 | ||||
| 11 |  |
Joint washer | 713910 | 1 | $3.30 | View | |
| 15 |  |
Oil pressure release valve | 713447 | 1 | $95.70 | View | |
| 16 | Body | Ref only | 1 | 1980 only | |||
| 17 | Piston | Ref only | 1 | 1980 only | |||
| 18 | Spring | 706062 | 1 | ||||
| 19 | Cap | Ref only | 1 | 1980 only | |||
| 20 |  |
Joint washer (cap to body) | 708754 | 1 | $0.95 | View | |
| 21 |  |
'O' ring, release valve | 603355 | 1 | $1.55 | View | |
| NI | Fixing screw short 1¼" U.H. | 147007 | 1 | ||||
| NI | Fixing screw long 1½" U.H. | 147008 | 1 | ||||
| NI |  |
Washer spring - Fixing screw | 602417 | 2 | $0.30 | View |
