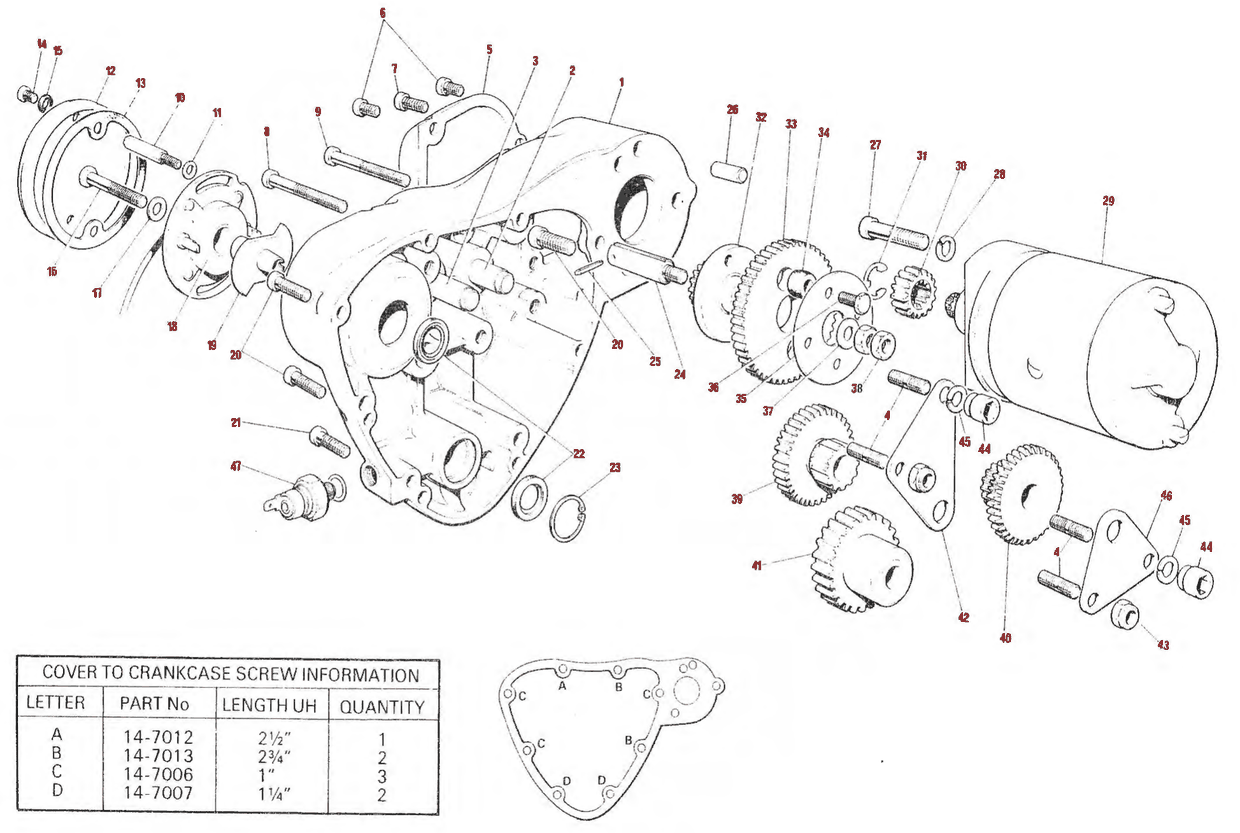

HomeMake: Triumph1978-82 Triumph 750 Twins T140D, T140EEngine, Primary Drive & ClutchElectric Start Timing Cover Gears 1981–82
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 | Timing Cover | 717501 | 1 | ||||
| 2 | Spindle: 2nd stage | 717377 | 1 | ||||
| 3 | Spindle: 3rd stage | 717376 | 1 | ||||
| 4 | Stud-Outrigger plate | 217066 | 4 | ||||
| 5 | Cover-starter motor | 717327 | 1 | ||||
| 6 | Screw-cover to case 5/8" UH | 147003 | 2 | ||||
| 7 |  |
Screw-cover to case 1" UH | 147006 | 1 | $2.20 | View | |
| 8 | Screw-timing cover to c/case 2½" UH | 147012 | 1 | ||||
| 9 | Screw-timing cover to c/case 2¾" UH | 147013 | 2 | ||||
| 10 | Pillar bolt | 717400 | 2 | ||||
| 11 | Washer-pillar bolt | 706559 | 4 | ||||
| 12 | Cover-pulse sensor | 717159 | 1 | ||||
| 13 |  |
Gasket-cover | 711462 | 1 | $2.95 | View | |
| 14 |  |
Screw-cover fixing | 707354 | 2 | $0.95 | View | |
| 15 |  |
Washer-fibre | 970430 | 2 | $0.65 | View | |
| 16 |  |
Bolt-reluctor fixing | 140207 | 1 | $1.55 | View | |
| 17 |  |
Washer-bolt | 708163 | 1 | $0.35 | View | |
| 18 | Pulse sensor | 997044 | 1 | ||||
| 19 | Reluctor | 997043 | 1 | ||||
| 20 | |
Screw-timing cover to c/case 1" UH | 147006 | 3 | $2.20 | View | |
| 21 | Screw-timing cover to c/case 1¼" UH | 147007 | 2 | ||||
| 22 |  |
Oil seal-at camshaft and crankshaft | 704568 | 2 | $7.21 | View | |
| 23 |  |
Circlip-oil seal at crankshaft | 704569 | 2 | $2.30 | View | |
| 24 | Spindle for gear 2/3 | 717494 | 1 | ||||
| 25 | Roll pin-spindle fixing | 607385 | 1 | ||||
| 26 | Dowel-motor to cover | 717383 | 1 | ||||
| 27 | Screw-motor to cover | 147020 | 3 | ||||
| 28 |  |
Washer-spring for screw | 602428 | 3 | $0.45 | View | |
| 29 | Starter motor | 607296 | 1 | ||||
| 30 | Pinion-starter motor | 717226 | 1 | ||||
| 31 | Retainer-pinion to starter motor | 607292 | 1 | ||||
| 32 | Pinion no. 3 & coupling-16T | 717416 | 1 | ||||
| 33 | Pinion no.2-54T | 717417 | 1 | ||||
| 34 | Bush-shock absorber | 607340 | 2 | ||||
| 35 | Face washer-bush retainer | 717418 | 1 | ||||
| 36 | Screw-face washer | 217083 | 1 | ||||
| 37 |  |
Washer-thrust | 602330 | 2 | $0.45 | View | |
| 38 |  |
Nut-end float adjustment | 140402 | 1 | $1.60 | View | |
| 39 | Gear no. 4/5 36-16T | 717242 | 2 | ||||
| 40 | Gear no.6/7 36-11T | 717243 | 1 | ||||
| 41 | Gear no.8-24T | 717436 | 1 | ||||
| 42 | Plate-upper outrigger | 717379 | 1 | ||||
| 43 |  |
Nut-plate fixing | 141202 | 2 | $0.55 | View | |
| 44 | Nut-socket head | 217092 | 2 | ||||
| 45 | |
Washer spring | 602428 | 2 | $0.45 | View | |
| 46 | Plate-Lower outrigger | 717380 | 1 | ||||
| 47 |  |
Oil pressure switch | 603719 | 1 | $26.40 | View | |
| N1 |  |
Joint washer-cover | 717328 | 1 | $8.80 | View | |
| N1 | 'O' Ring-motor to cover | 607295 | 1 | ||||
| NI | Cush Drive Assy | 717421 | 1 | 1982 only |
