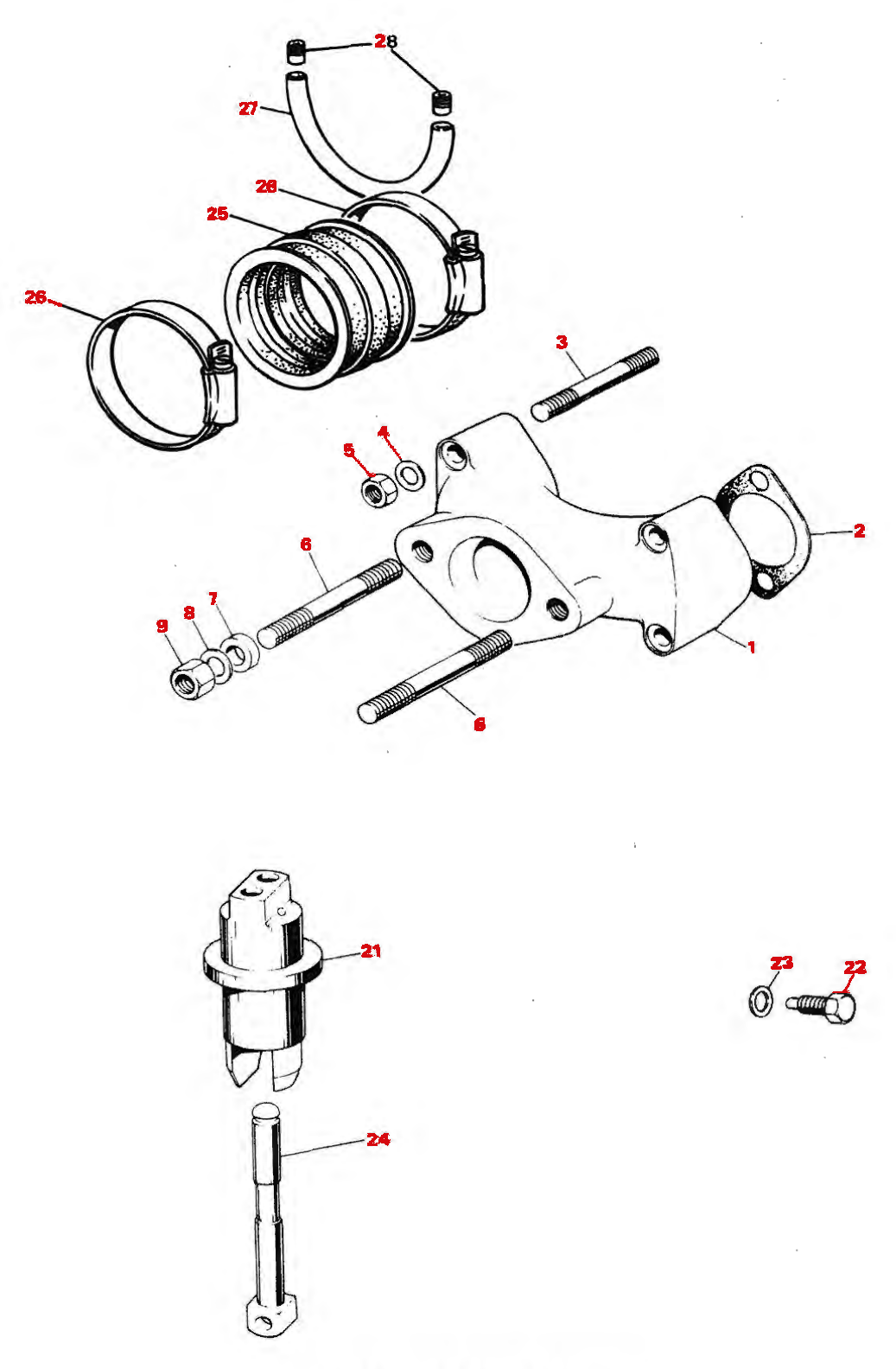

HomeMake: Triumph1978-82 Triumph 750 Twins T140D, T140EEngine, Primary Drive & ClutchManifold & Tappets 1981
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |
Inlet manifold | 713556 | 1 | TR7 only | $99.00 | View |
| 2 |  |
Joint washer | 705660 | 2 | TR7 only | $4.50 | View |
| 3 |  |
Stud | 211876 | 4 | TR7 only | $2.40 | View |
| 4 |  |
Washer | 604248 | 4 | TR7 only. Manifold to head | $0.99 | View |
| 5 |  |
Nut | 211877 | 4 | TR7 only. Carburettor to manifold (brace) | $0.75 | View |
| 6 |  |
Stud | 211996 | 2 | TR7 only. Carburettor to manifold (brace) | $11.30 | View |
| 7 |  |
Insulation ring | 709554 | 2 | TR7 only. Carburettor to manifold (brace) | $0.50 | View |
| 8 |  |
Cup | 709555 | 2 | TR7 only. Carburettor to manifold (brace) | $2.26 | View |
| 9 |  |
Nut | 141301 | 2 | TR7 only. Carburettor to manifold (brace) | $0.99 | View |
| 21 |  |
Tappet guide block | 717194 | 2 | Original price was: $59.00.$38.50Current price is: $38.50. | View | |
| 22 |  |
Set bolt | 970200 | 2 | $6.80 | View | |
| 23 |  |
Washer | 702441 | 2 | $1.30 | View | |
| 24 |  |
Tappet | 717008 | 4 | $86.00 | View | |
| 25 |  |
Connecting rubber carb to head | 607076 | 2 | not TR7 | Original price was: $32.00.$28.60Current price is: $28.60. | View |
| 26 |  |
Connecting rubber clip | 607077 | 4 | not TR7 | $5.70 | View |
| 27 | Connector pipe - balance | 717051 | 1 | not TR7 | |||
| 28 |  |
Connector stub | 717103 | 2 | not TR7 | $6.30 | View |
