Manifold & Throttle Linkage

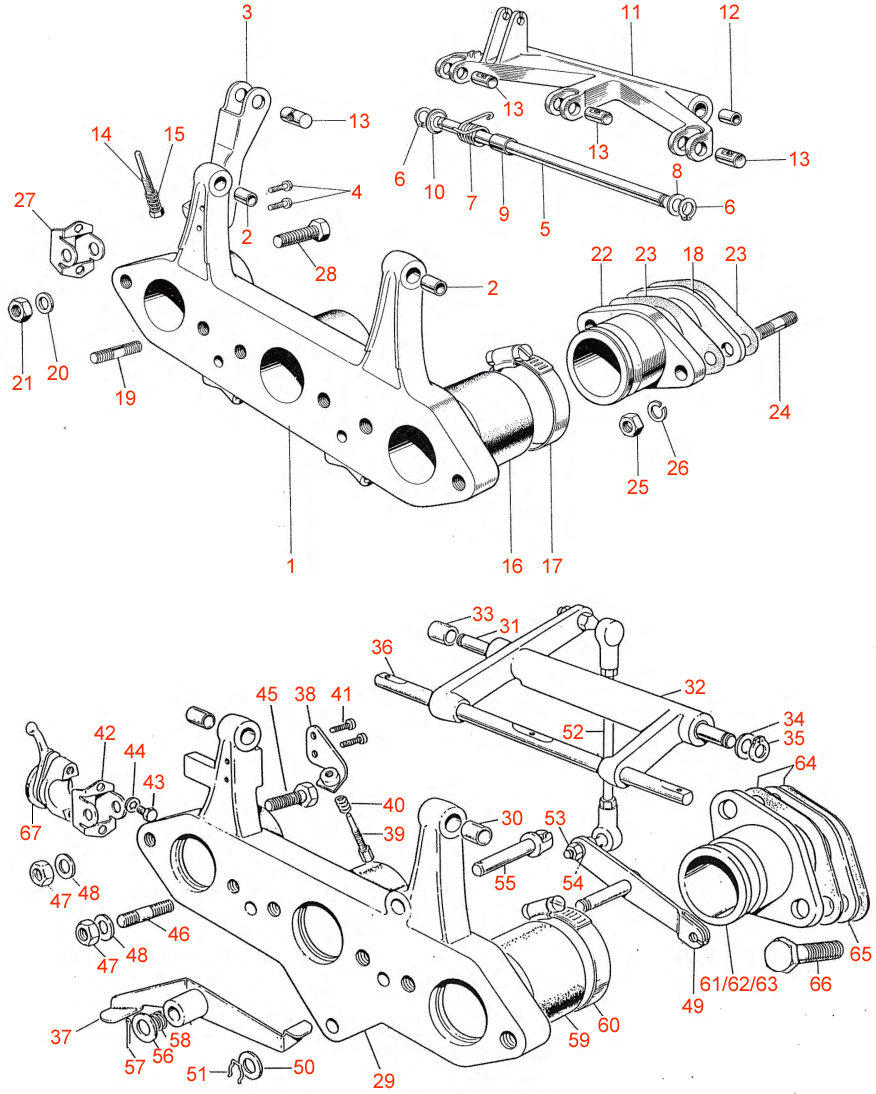

Triumph T150 & T160 manifold- Classicbikepsares.com.au

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Adaptor	70-7633	1	1968-70 T150 Model
1	Carb Adaptor	71-1303	1	1971-74 T150 Models
2	Bush	70-9073	2	1969-74 T150 Models	$4.40	View
3	Support Arm, Throttle Linkages	70-9242	1	1968-74 T150 Models
4	Screw	21-0774	2	1969-72 T150 Models
4	Screw, Terminal Clamp	21-1930	2	1973-74 T150 Models
5	Throttle Sprindle	70-9251	1	1968-74 T150 Models
6	Circlip, Throttle Spindle	70-9255	2	1968-74 T150 Models		View
7	Feed Plunger	70-9267	1	1968 T150 Models
7	Throttle Return Spring	70-9880	1	1968-74 T150 Models		View
8	Washer, Throttle Linkage	71-0245	1	1969-74 T150 Models
9	Spacer	70-9820	1	1969-74 T150 Models
10	Retaining Cup, Throttle Spring	70-9821	1	1969-74 T150 Models
11	Silencer	70-9241	1	1968-69 T150 Models
11	Throttle Linkage Operating Arm, Billet	70-9278	1	1970-74 T150 Models
12	Bush	70-9073	2	1970-74 T150 Models	$4.40	View
13	Trunnion, Throttle Linkage	70-9243	4	1968-74 T150 Models
14	Adjusting Screw	70-9252	1	1969-73 T150 Models
15	Spring	70-9254	1	1968-74 T150 Models
16	Connection Tube	70-9060	3	1968-74 T150 Models	$19.75	View
17	Clip	60-0707	6	1968-74 T150 Models	$2.75	View
18	Inlet Insulator Gasket	70-8981	3	1968-74 T150 Models	$5.10	View
19	Crankcase Stud	14-1619	5	1968-74 T150 Models
20	Washer	60-4247	6	1968-74 T150 Models	$0.45	View
21	Lock Nut	14-1302	6	1968-74 T150 Models	$2.00	View
22	Cylinder Head Stub	70-9057	3	1968-74 T150 Models
23	Inlet Gasket	70-8784	6	1970-74 T150 Models	$7.50	View
24	Stud	21-0557	6	1968-74 T150 Models
25	Nut	14-0301	6	1968-70 T150 Models	$0.55	View
25	Nut	14-1302	6	1968-74 T150 Models	$2.00	View
26	Washer	60-4248	6	1968-74 T150 Models		View
27	Bracket Choke	83-3665	1	1972-74 T150 Models	$2.95	View
28	Bolt	14-0218	1	1972-74 T150 Models
29	Adaptor With Bushes	71-4077	1	1975 T160 Model
30	Bush	70-9073	2	1975 T160 Model	$4.40	View
31	Spindle	71-4400	1	1975 T160 Model
32	Operating Arm	71-3919	1	1975 T160 Model
33	Bush	70-9073	2	1975 T160 Model	$4.40	View
34	Washer, Throttle Linkage	71-0245	2	1975 T160 Model
35	Circlip, Throttle Spindle	70-9255	2	1975 T160 Model		View
36	Operating Bar	71-3885	1	1975 T160 Model
37	Operating Arm	71-4360	1	1975 T160 Model
38	Throttle Stop Plate	71-4082	1	1975 T160 Model
39	Screw	71-3924	1	1975 T160 Model
40	Spring	70-9254	1	1975 T160 Model
41	Screw	21-1930	2	1975 T160 Model
42	Air Control Bracket	83-3665	1	1975 T160 Model	$2.95	View
43	Screw	60-3896	2	1975 T160 Model
44	Serrated Washer	60-4256	2	1975 T160 Model	$0.40	View
45	Bolt	14-0219	1	1975 T160 Model	$1.16	View
46	CrankCase Stud	14-1619	5	1975 T160 Model
47	Locking Nut	14-1302	6	1975 T160 Model	$2.00	View
48	Washer	60-4247	6	1975 T160 Model	$0.45	View
49	Throttle Lever	71-4078	1	1975 T160 Model
50	Washer 5/16"	60-2330	1	1975 T160 Model	$0.45	View
51	Circlip	60-4393	1	1975 T160 Model
52	Throttle Linkage Rod	71-4099	1	1975 T160 Model
53	2BA Lock Nut	82-4717	2	1975 T160 Model	$1.10	View
54	Washer 2BA	60-2391	2	1975 T160 Model	$0.61	View
55	Abutment Pivot	71-4084	1	1975 T160 Model
56	Washer	60-2330	1	1975 T160 Model	$0.45	View
57	Split Pin	60-2684	1	1975 T160 Model	$1.45	View
58	Spring	60-4596	1	1975 T160 Model
59	Connection Tube	70-9060	3	1975 T160 Model	$19.75	View
60	Clip	60-0707	6	1975 T160 Model	$2.75	View
61	Inlet Stub - Centre	71-3946	1	1975 T160 Model
62	Inlet Stub - Right Hand	71-4001	1	1975 T160 Model
63	Inlet Stub - Left Hand	71-4002	1	1975 T160 Model
64	Gasket Carby	71-3947	6	1975 T160 Model
65	Insulating Washer	71-3948	3	1975 T160 Model
66	Screw	14-7005	6	1975 T160 Model
67	Choke Lever Control	60-4521	1	1975 T160 Model- Remove Base of bar Clamp	$44.00	View
