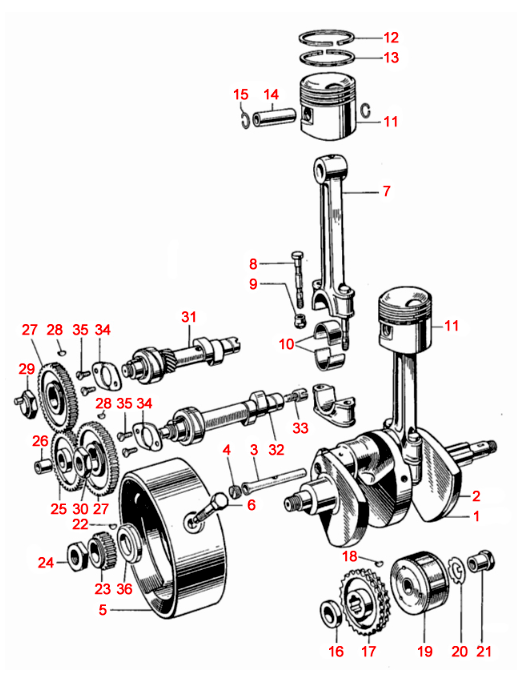

| Plate # | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|
| 1 | Crankshaft & Flywheel Assembley | 70-9489 | 1 | |||
| 2 | Crankshaft | 70-9490 | 1 | |||
| 3 | Sludge Tube | 70-3999 | 1 | |||
| 4 | Bung- Sludge Trap | 70-9492 | 1 | $16.01 | View | |
| 5 | Flywheel | 70-5870 | 1 | |||
| 6 | Flywheel Bolt | 21-1913 | 3 | |||
| 7 | Connecting Rod | 70-8834 | 2 | 1970 Only | ||
| 7 | Conrod | 70-9915 | 2 | 1971-74 Models | ||
| 8 | Big End Bolt CEI | 70-3705 | 4 | 1970 Only | ||
| 8 | Big End Bolt UNF | 70-9914 | 4 | 1971-74 Models | $29.00 | View |
| 9 | Big End Nut CEI | 70-2922 | 4 | 1970 Only | $5.10 | View |
| 9 | Big End Nut UNF | 21-2016 | 4 | 1971-72 Models | $6.90 | View |
| 9 | Big End Locknut UNF | 60-3761 | 4 | 1973-74 Models | ||
| 10 | Big End bearing Shells | 70-3706 | Set | STD | $74.00 | View |
| 11 | Piston Set | 70-6884 | 1 | 9:1 Compression Ratio +20" | $220.00 | View |
| 12 | Compression Ring | 70-6893 | 4 | Buy Set | $129.00 | View |
| 13 | Oil Control Ring | 70-6894 | 2 | $129.00 | View | |
| 14 | Gudgeon Pin | 70-6861 | 2 | With Piston Kits | ||
| 15 | Piston Circlip | 70-6869 | 4 | $2.60 | View | |
| 16 | Distance Piece | 70-9505 | 1 | |||
| 17 | Engine Sprocket | 70-3734 | 1 | |||
| 18 | Rotor Key | 70-3851 | 1 | $7.55 | View | |
| 19 | Alternator Rotor | 54213901 | 1 | Original price was: $336.00.$285.00Current price is: $285.00. | View | |
| 20 | Lock Washer | 70-3975 | 1 | $1.65 | View | |
| 21 | Alternator Nut | 21-1915 | 1 | $2.10 | View | |
| 22 | Key | 70-1580 | 1 | $5.01 | View | |
| 23 | Crankshaft Pinion | 70-1771 | 1 | |||
| 24 | Nut | 21-1914 | 1 | |||
| 25 | Intermediate Idler Pinion | 70-6160 | 1 | |||
| 26 | Bush | 70-0400 | 1 | $19.00 | View | |
| 27 | Camshaft Wheel | 70-4562 | 2 | $113.00 | View | |
| 28 | Camshaft Key | 70-1558 | 2 | $6.60 | View | |
| 29 | Cam Nut Inlet | 71-1007 | 1 | $26.00 | View | |
| 30 | Cam Nut Left hand Threaded | 70-6523 | 1 | $17.97 | View | |
| 31 | Camshaft, Inlet | 71-1064 | 1 | |||
| 32 | Exhaust Camshaft | 70-9984 | 1 | T100R | ||
| 32 | Exhaust Camshaft | 70-9983 | 1 | T100C | ||
| 33 | Plug | 70-9988 | 1 | $14.00 | View | |
| 34 | Cam Lock Plate | 70-9502 | 2 | |||
| 35 | Screw | 21-1929 | 4 |
