HomeMake: Triumph1968-75 Triumph 750 Triples T150 & T160Engine, Primary Drive & ClutchCrankshaft & Pistons

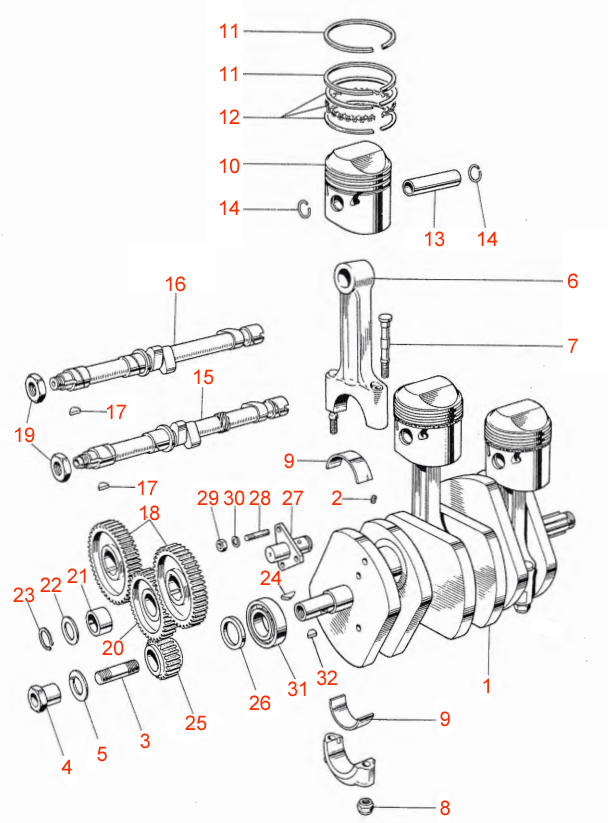

| Plate # | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|
| 1 | Crankshaft Assembly | 70-8778 | 1 | 1968-73 Models | ||
| 1 | Crankshaft Assembly | 71-3307 | 1 | 1974-75 Models | ||
| 2 | Oil Way Plug | 70-6577 | 1 or 4 | All Models 1x for T160. 4x for All T150's | ||
| 3 | Rotor Stud | 21-2185 | 1 | 1974-75 Models | ||
| 4 | Nut, Alternator Rotor | 21-2182 | 1 | T160 Model | $6.11 | View |
| 4 | Nut, Alternator Rotor | 70-8763 | 1 | 1968-74 T150 Models | ||
| 5 | Lockwasher | 70-3975 | 1 | 1968-75 All Models | $1.65 | View |
| 6 | Con-Rod Assembly | 70-8777 | 3 | 1968 T150 Model | ||
| 6 | Con-Rod | 70-9740 | 3 | 1969-75 All Models | ||
| 7 | Big End Bolt | 70-9727 | 6 | 1969-1975 Models | $5.30 | View |
| 8 | Big End Lock nut | 21-0549 | 6 | 1969-1975 Models | $6.90 | View |
| 9 | Big End Shells - STD | 70-5998 | 3 | 1968-1975 All Models | $67.00 | View |
| 9 | Big End Shells - Plus .010" | 70-9023 | 3 | 1968-1975 All Models | $68.00 | View |
| 9 | Big End Shells - Plus .020" | 70-9024 | 3 | 1968-1975 All Models | $68.00 | View |
| 9 | Big End Shells - Plus .030" | 709025 | 3 | 1968-1975 All Models | $85.00 | View |
| 10 | Piston Set- STD | 70-9741 | 1 | 1968-1975 All Models | $330.00 | View |
| 10 | Pistons Set- Plus .020" | 70-9763 | 1 | 1968-1975 All Models | $388.00 | View |
| 10 | Piston Set - Plus .040" | 19916/40 | 1 | 1968-1975 All Models | $387.00 | View |
| 10 | Piston Set- Plus .060" | 19916/60 | -- | 1968-1975 All Models | View | |
| 11 & 12 | Piston Ring Set- STD | 70-6838, 70-6839 | 1 | 1968-1975 All Models | $176.00 | View |
| 11 & 12 | Piston Ring Set- Plus 0.020" | 70-6838, 70-6839 | 1 | 1968-1975 All Models | $176.00 | View |
| 11 & 12 | Piston Ring Set- Plus 0.040" | 70-6838, 70-6839 | 1 | 1968-1975 All Models | $176.00 | View |
| 13 | Gudgeon Pin | 70-6836 | 3 | 1968-1975 All Models | ||
| 14 | Piston Circlip | 70-6840 | 6 | 1968-1975 All Models | $0.95 | View |
| 15 | Exhaust Camshaft | 70-8765 | 1 | 1968-1974 All Models | ||
| 16 | Inlet Camshaft | 70-8764 | 1 | 1968-1974 All Models | ||
| 17 | Camshaft Key | 70-1558 | 2 | 1968-1974 All Models | $6.60 | View |
| 18 | Camshaft Wheel | 70-4562 | 2 | 1968 T150 Model | $113.00 | View |
| 18 | Pinion Camshaft | 70-9802 | 2 | 1969-1970 Models | ||
| 18 | Pinion Camshaft 50T | 71-2718 | 2 | 1971-1975 All Models | ||
| 19 | Cam Nut, LH Threaded | 70-6523 | 2 | 1968-1975 All Models | $17.97 | View |
| 20 | Intermediate Timing Gear | 70-6029 | 1 | 1968-1970 Models | ||
| 20 | Intermediate Timing Gear | 71-2246 | 1 | 1971-1975 All Models | ||
| 21 | Needle Roller | 70-7650 | 1 | 1968-73 Models | ||
| 21 | Bush | 71-2248 | 1 | 1974-75 Models | ||
| 22 | Thrust Washer | 70-6088 | 1 | 1968-1975 All Models | ||
| 23 | Circlip, Idler Gear | 70-8768 | 1 | 1968-1975 All Models | $2.10 | View |
| 24 | Key | 70-1580 | 1 | 1973-1975 All Models | $5.01 | View |
| 24 | Key, Rotor | 70-3974 | 1 | 1970-73 Models | $5.60 | View |
| 25 | Half Time Pinion | 70-6524 | 1 | 1968-1975 All Models | ||
| 26 | Distance Piece, Timing Pinion | 70-6173 | 1 | 1968-1975 All Models | $4.50 | View |
| 27 | Spindle | 70-6030 | 1 | 1968-70 Models | ||
| 27 | Spindle | 71-2250 | 1 | 1971-75 All Models | ||
| 28 | Stud 1/4 UNF | 21-0547 | 1 | 1968-1970 Models | View | |
| 28 | Stud 1/4 UNF | 21-0547 | 3 | 1971-1975 Models | View | |
| 29 | Set Bolt | 14-0101 | 1 | 1968-1970 Models | $0.50 | View |
| 29 | Clutch push Rod Adjuster Lock Nut | 14-0401 | 3 | 1971-1975 All Models | $0.80 | View |
| 30 | Washer | 60-4250 | 3 | 1968-1975 All Models | $0.30 | View |
| 31 | Bearing | 70-8780 | 1 | 1968-1975 All Models | $87.00 | View |
| 32 | Key | 70-8144 | 1 | 1974-1975 All Models | $9.90 | View |
