Cylinder Head & Tappets

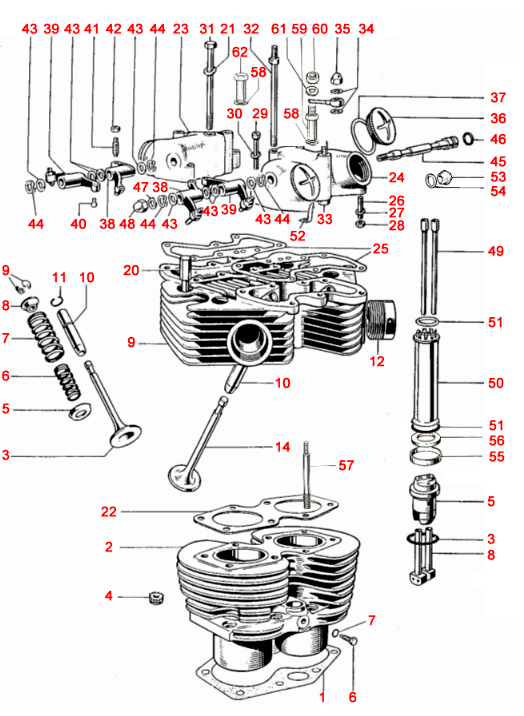

Cylinder Head Triumph T100 Daytona- Classic bike Spares

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Base Gasket	70-3798	1		$6.60	View
2	Cylinder Block	70-9719	1
3	O'Ring	70-7563	2
4	12 Sided Nut	21-0692	8		$3.10	View
5	Tappet Block	70-9352	2		$66.00	View
6	Tappet Guide Block Locking Bolt	97-0200	2		$6.80	View
7	Shake Proof Washer	70-1612	2		$0.45	View
8	Cam Follower	70-3753	4	T100C Model	$139.00	View
8	Cam Follower	70-4040	4	T100R Models
9	Cylinder Head complete	70-9507	1
10	Valve Guide	71-0229	4
11	Valve Guide Circlip	70-3209	4		$1.75	View
12	Exhaust Pipe Adapter	70-9510	2		Original price was: $27.01.Current price is: $12.10.	View
13	Inlet Valve	70-6853	2		$52.00	View
14	Exhaust Valve	70-6854	2		$52.00	View
15	Cup Valve Spring	70-6855	4
16	Valve Spring Set	70-5946	4
17	Valve Spring Set	70-4011	4		$3.36	View
18	Top Collar	70-3742	4		$12.00	View
19	Valve Collet	99-0062	8
20	Cylinder Head Bolt	70-4456	4
21	Washer	82-2184	8
22	Cylinder Head Gasket	70-4675	1		$55.00	View
23	Inlet Rocker Box	70-3745	1
24	Exhaust Rocker Box	70-3744	1
25	Rocker Box Gasket`	70-9511	2		$15.00	View
26	Set Screw	70-3858	4			View
27	Washer	60-2417	4		$0.30	View
28	Nut	14-0301	4	1/4" UNF
29	Case Screw	70-3668	4		$3.30	View
30	Washer	70-3857	4
31	Head Bolt	70-3794	2	C Range Models		View
32	head Bolt	70-3795	2
33	Bolt rocker Feed	70-3809	2
34	Copper Washer	82-1880	6		$1.50	View
35	Dome Nut	97-0400	2
36	Oil Cap	70-4610	4			View
37	Fibre Oil Cap Washer	70-3751	4		$1.65	View
38	Rocker	70-3749	2
39	Rocker	70-3750	2
40	Rocker Ball Pin	70-7651	4
41	Tappet Adjuster	70-3223	4		$8.40	View
42	Nut	60-4264	4		$1.16	View
43	Adjuster Lock Nut	GS662	4
44	Thackery Washer	70-3224	2		$4.05	View
45	Rocker Spindle	70-3748	2
46	O'Ring	70-3253	2
47	Sealing Washer	70-1335	2		$2.31	View
48	Dome Nut	70-1435	2		Original price was: $11.00.Current price is: $10.45.	View
49	Engine Pushrod	70-4008	4		$25.00	View
50	Pushrod Tube	70-9512	2
52	Rocker Box spring Clip	70-4671	4		$3.45	View
