Front Forks & Headlight Brackets

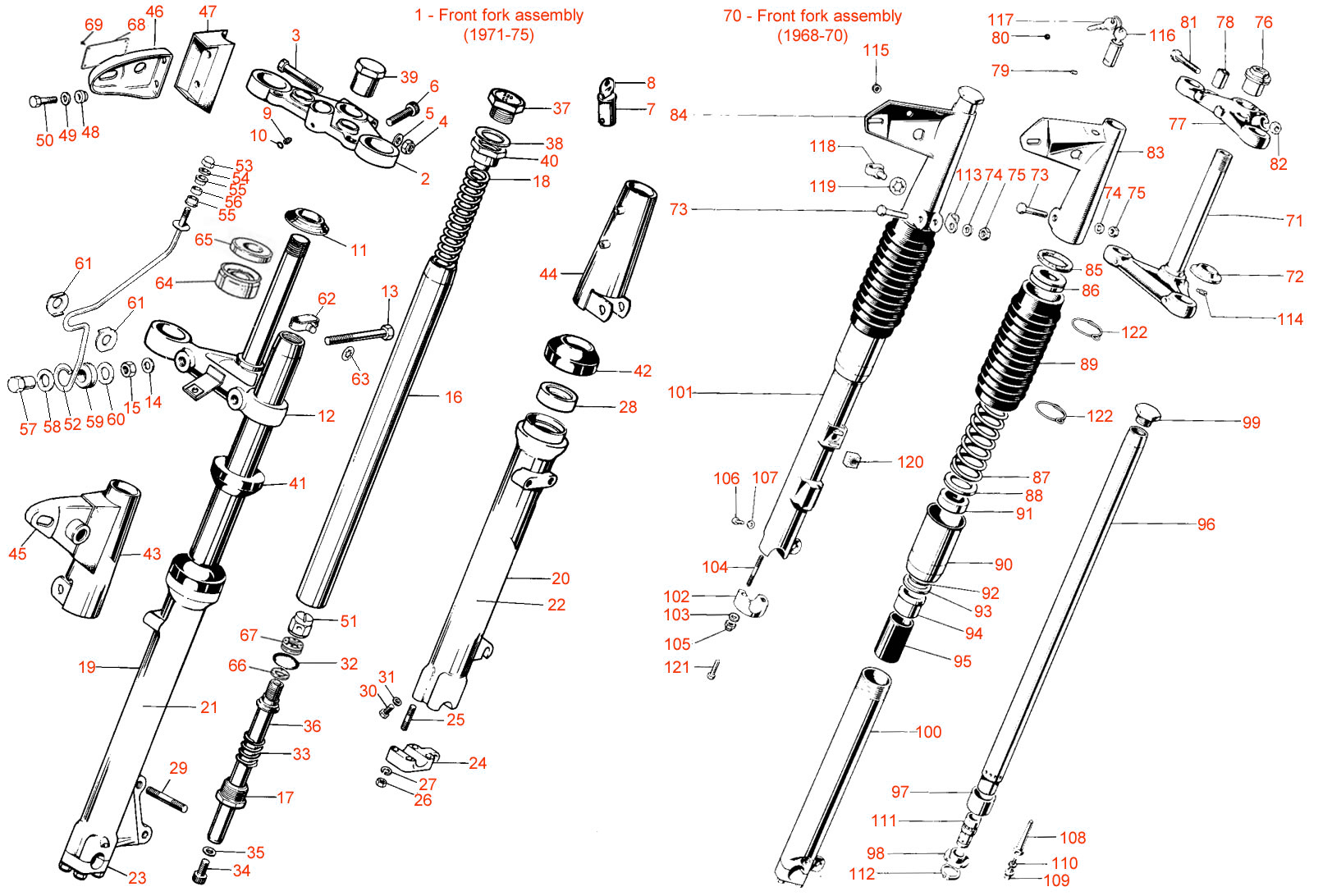

Triumph Trident Forks - Classic bike Spares

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Fork Assembly	--	--	Specific to Each Model, Check your Book
2	Top Fork Yoke	--	--	Specific to Each Model, Check your Book
3	Bolt	14-0234	1	1971-75 All Models	$2.00	View
4	Nyloc Nut	14-1303	1	1971-75 All Models	$1.45	View
5	Washer	60-2331	1	1971-75 T150 Models	$0.25	View
6	Cap Screw	14-1034	2	1973-75 T150 Models	$2.30	View
7 & 8	Steering Lock & Key Set	82-6738	1	1971-75 T150 Models		View
9	Grub Screw Steering Lock	21-0578	1	1971-74 T150 Models	$6.30	View
9	Grub Screw	21-2315	1	1975 T160 All Models
10	Sealing Washer	97-2266	1	1971-75 All Models	$0.30	View
11	Lower Head Race	97-0439	1	1971-74 All Models	$25.00	View
12	Bottom Yoke, Course Thread	97-4138	1	1971 T150 Models
12	Bottom Yoke & Stem	97-4321	1	1972-73 T150 Models
12	Bottom Yoke & Stem	97-4463	1	1973-74 T150 Models
12	Bottom Yoke & stem	97-4566	1	1975 T160 Models
13	Pinch Bolt	14-0237	1	1973-75 All Models	$1.40	View
13	Bolt	14-0238	2	1971-73 T150 Models	$2.95	View
13	Eye Bolt	97-4476	1	1973-74 T150 Models	$16.01	View
14	Washer	70-8084	4	1973-75 All Models	$1.71	View
15	Nyloc Nut	14-1303	2	1971-75 all Models	$1.45	View
16	Stanchion, Conical Hub & Drum Brake	97-4007	Pair	1971-73 T150 Models	$196.00	View
16	Stanchion, Disc Brake	97-4380	Pair	1973-75 Models	$184.00	View
17	Plug, Stanchion End	97-4076	2	1971-75 all Models	$39.00	View
18	Fork Spring	97-4215	Pair	1971-74 all Models	$45.10	View
18	Fork Spring	97-4556	Pair	1975 T160	$66.00	View
19	Outer Member, LH	--	1	Specific to Each Model, Check your Book
20	Fork Leg RH	--	--	Specific to Each Model, Check your Book
21	Outer Member LH	--	--	Specific to Each Model, Check your Book
22	Outer Member RH	--	--	Specific to Each Model, Check your Book
23	Cap, Left Hand	97-4456	Pair	1973-74 T150 Models	$93.01	View
24	Fork Leg End Cap RH	97-3947	2	1971-73 T150 Models	$93.01	View
24	Cap, Right Hand/ Disc Brake	97-4457	1	1973-75 Models	$93.01	View
25	Fork Stud	21-2102	4	1975 T160 Model	$9.90	View
25	Stud Fork End	21-2102	8	1971-74 T150 Model	$9.90	View
26	3/8 Nut	14-0302	4	1975 T160 Model	$0.30	View
26	3/8 Nut	14-0302	8	1971-74 T150 Model	$0.30	View
27	Spring Washer	60-2428	4	1975 T160 Model	$0.45	View
27	Spring Washer	60-2428	8	1971-74 T150 Model	$0.45	View
28	Fork Seal	97-4001	2 Sold as a pair	1971-75 All Models	$15.20	View
29	Caliper Stud	21-2189	2	1973-75 Models	$9.60	View
30	Screw 2BA	82-4715	2	1974-75 Models	$0.95	View
30	Screw	97-3894	2	1971-74 T150 Model	$0.39	View
31	Drain Plug Washer	97-3893	2	1971-75 All Models	$0.65	View
32	O'Ring	97-4003	2	1971-75 All Models	$1.30	View
33	Fork Recoil Spring	97-4009	2	1971-75 All Models	$4.95	View
34	Cap screw	14-1019	2	1971-75 All Models	$3.20	View
35	Fork Dowty Washer	97-4004	2	1971-75 All Models	$3.55	View
36	Damper Tube & Valve Assembly	97-4200	2	1971- T150 Models
36	Damper Tube Assembly Long	97-4242	2	1974 T150 Model
36	Damper Tube& Valve Assembly	97-4324	2	1972-73 T150 Models
36	Tube	97-4554	2	1975 T160 Model
37	Fork Top Nut, Recess for Decal	97-4258	2	1971 T150 Model	$44.00	View
37	Top Cap Nut	97-4309	2	1972-73 T150 Models
37	Top Cap Nut	97-4404	2	1973-74 T150 Model	$27.01	View
37	Plastic Cap Screw	97-4600	2	1975 T160 Model	$12.00	View
38	Washer Top Fork Nut	97-4166	2	1971-74 All Models	$0.50	View
39	Steering Stem Nut	97-4159	1	1971 T150 Model
39	Steering Stem Nut	97-4317	1	1973-75 T150 Models	$44.00	View
40	Fork Top Nut, Alloy	97-4387	2	1973-75 Models		View
41	Bump Stop	97-4461	2	1973-75 Models	$4.65	View
42	Fork Dust Seal	97-4002	Pair	1971-75 All Models	$16.01	View
43	Outer Cover, Left	--	1	Specific to Each Model, Check your Book
44	Outer Cover, Right	--	--	Specific to Each Model, Check your Book
45	Headlamp Bracket, LH	97-4121	1	1974 T150V Model	$24.00	View
45	Headlamp Bracket, LH	97-4417	--	1973-74 Model
45	Headlamp Bracket	97-5056	1	1975 T160 Model
46	Headlamp Bracket, RH	97-4203	1	1973-74 T150 Model		View
46	Headlamp Bracket, RH	97-5057	1	1975 T160 Model
47	Mounting Rubber, Fork Ear	97-2208	2	1973-75 Models		View
48	Buffer	97-2209	4	1973-75 All Models	$1.75	View
49	Washer	97-2210	4	1973-75 All Models	$0.25	View
50	Attachment Bolt	21-2095	4	1973-75 All Models	$2.50	View
51	Nut Damper Valve	97-4244	2	1975 T160 Model
52	Headlamp Bracket LH & RH	97-4162 & 974163	1 Set	1971-73 T150 Model	Original price was: $138.00.Current price is: $110.00.	View
53	Dome Nut	21-1809	2	1971-73 T150 Model	$8.31	View
54	Washer	60-2338	2	1971-73 T150 Model		View
55	Mounting Bush	83-2209	4	1971-73 T150 Model	$4.40	View
56	Spacer	83-2211	2	1971-73 T150 Model	$5.80	View
57	Sleeve Nut	21-2062	2	1971-73 T150 Model	$7.00	View
58	Washer	60-2333	2	1971-73 T150 Model	$0.40	View
59	Grommet, Headlamp Mounting	60-2630	2	1971-73 T150 Model	$5.10	View
60	Washer	82-9046	2	1971-73 T150 Model	$2.60	View
61	Headlamp Stay Washer	83-2216	4	1971-73 T150 Model
62	Clip	82-3098	1	1971-73 T150 Model	$4.50	View
63	Starlock Washer	82-8245	1	1971-73 T150 Model	$1.16	View
64	Taper Bearing Roller Bearing	97-4031	2	1975 T160	$19.00	View
65	Dust Cover	97-4028	1	1975 T160	$4.85	View
66	Fork Damper Washer	97-4010	2	1975 T160
67	Damper Valve	97-4020	2	1975 T160	$5.20	View
68	Identification Label	60-4595	1	1975 T160
69	Screw	06-1287	4	1975 T160	$0.40	View
70	Fork Assembly	97-2287	1	1968-69 Models
--	--	--	--
