Gearbox Inner

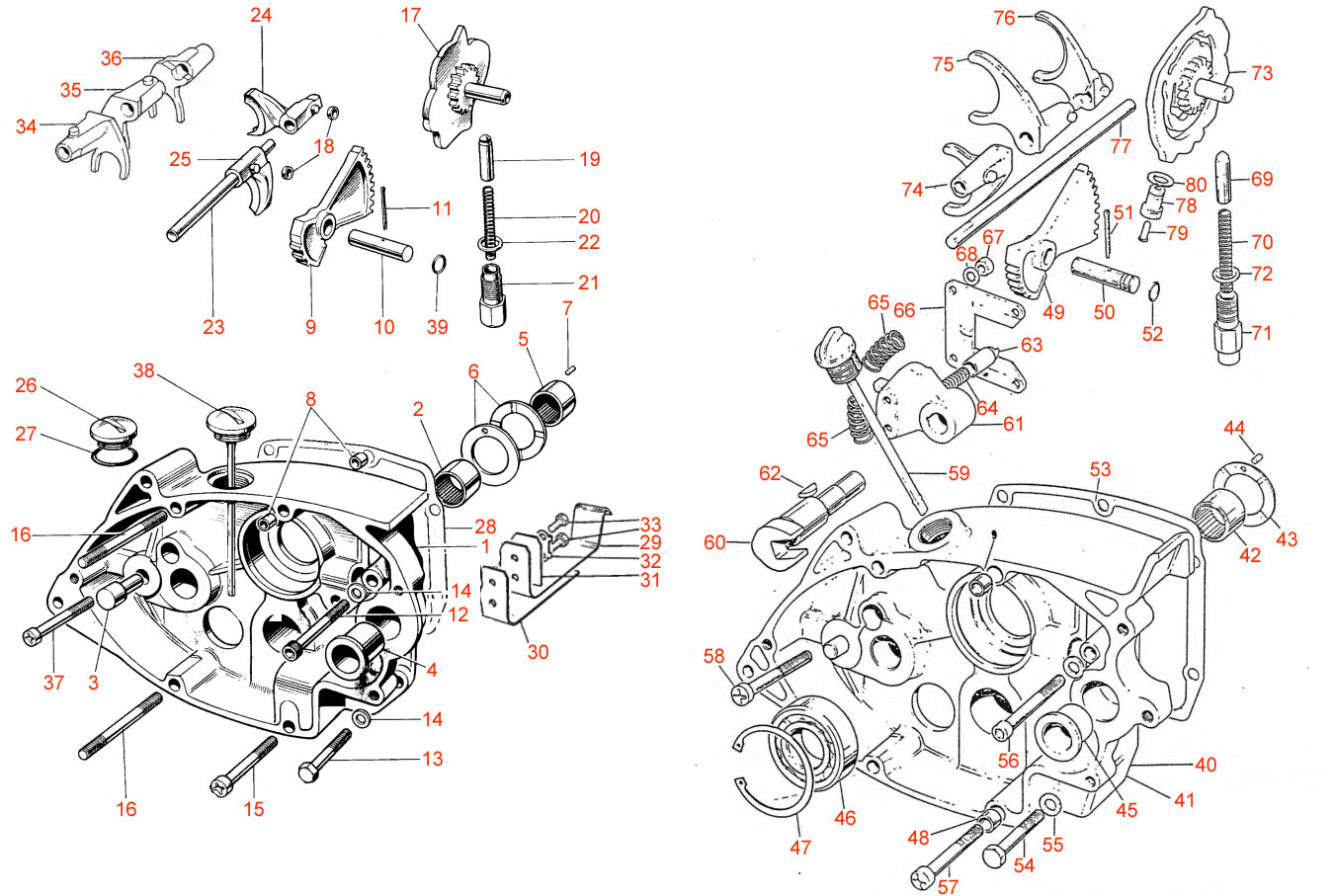

Triumph T150, T160 Inner gearbox- Classic bike Spares

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Inner Cover	--	--	Model Specific, Check your Book
2	Needle Roller	57-1614	1	1968-74 T150 Model	$15.00	View
3	Buffer, Kick Start Stop	57-0045	1	1970-74 T150 Model	$5.70	View
3	Stop, Kick Start Quadrant	57-3727	1	1968-69 T150 Model
3	Kick Start Stop	57-4470	1	1974 T150 Model
4	Gearchange Spindle Bush	57-0412	1	1968-74 T150 Model	$22.00	View
5	Needle Roller Bearings	57-1606	1	1968-74 T150 Model	$21.00	View
6	Thrust Washer, Layshaft	57-1607	2	1968-74 T150 Model	$16.01	View
7	Peg, Thrust Washer Locator	57-0912	1	1968-74 T150 Model
8	Dowel	57-0989	2	1968-74 T150 Model	$4.10	View
9	Quadrant	57-0397	1	1968-72 T150 Model
9	Quadrant	57-4363	1	1971-74 T150 Model
10	Quadrant Spindle	57-1896	1	1968-74 T150 Model	$16.01	View
11	Split Pin	60-1928	1	1968-74 T150 Model
12	Socket Cap Screw	14-7101	1	1968-74 T150 Model
13	Set Screw	14-6121	1	1968-74 T150 Model
14	Washer	70-3446	2	1968-74 T150 Model	$1.20	View
15	Case Screw	21-1917	1	1973-74 T150 Model	$4.30	View
16	Stud	14-1431	2	1968-74 T150 Model
17	Camplate Assembly 4-Speed	57-4055	1	1970-72 T150 Model	$199.00	View
17	Camplate Assembly 5-Speed	57-4624	1	1973-74 T150 Model		View
18	Camplate Roller	NT261	2	1968-70 T150 Model	$7.50	View
19	Camplate Plunger	57-0044	1	1968-74 T150 Model	$37.00	View
20	Spring, Cam Plunger 4-Speed	57-0373	1	1968-72 T150 Model	$3.60	View
20	Plunger Spring 5- Speed	57-4459	1	1972-74 T150 Model	$4.50	View
21	Housing, Index Plunger	57-2172	1	1968-70 T150 Model	$25.50	View
21	plunger Housing	57-4400	1	1973-74 T150 Model
22	Washer	57-3978	--	1968-74 T150 All Models	$0.75	View
23	Selector Rod	57-0291	1	1968-69 T150 Model	$46.00	View
24	Fork, Camplate Selector	57-0260	--	1968-69 T150 Model
24	Mainshaft, Selector Fork	57-2596	1	197 T150 Model
24	Selector Fork, Mainshaft 4 Speed	57-4308	1	1971-72 T150 Model	Original price was: $86.00.Current price is: $61.60.	View
25	Fork Selector Layshaft	57-0913	1	1968-70 T150 Model
25	Fork Selector Layshaft- 4 Speed	57-4307	1	1971-72 T150 Model
26	Inspection Cap	57-2166	1	1968-74 T150 Model	$12.00	View
27	O'Ring	70-8782	1	1968-74 T150 Model	$1.85	View
28	Inner Gearbox Gasket	71-1447	1	1970-74 T150 Model	$4.60	View
29	Leaf Spring	57-4288	1	1971-72 T150 Model	$17.00	View
30	Leaf Spring Support	57-4289	1	1971-72 T150 Model	$17.00	View
31	Spring	57-4290	1	1971-72 T150 Model
32	Leaf Spring Tab Washer	57-4291	1	1971-72 T150 Model	$3.05	View
33	Hex Bolt	82-4771	2	1971-72 T150 Model	$1.30	View
34	Selector Fork, Mainshaft 4th Gear	57-4367	1	1971-74 T150 Model
35	Operating Fork, 5 Speed Layshaft 3rd Gear	57-4366	1	1971-74 T150 Model	$77.00	View
36	Selector Fork	57-4368	1	1971-72 T150 Model
36	Selector 1st Gear	57-4660	1	1973-74 T150 Model		View
37	Case Screw	14-6614	1	1968-72 T150 Model
37	Screw Pozi	21-1917	1	1973-74 T150 Model	$4.30	View
38	Filler Cap	57-4948	1	1974 T150 Model
39	O'Ring	37-3761	1	1974 T150 Model	$2.55	View
40	Inner Cover Assembly	57-4890	1	1975 T160 Model
41	Inner Cover With Foot Button Starter Button	57-4768	1	1975 T160 Model
42	Needle Roller	57-1614	1	1975 T160 Model	$15.00	View
43	Thrust Washer, Layshaft	57-1607	1	1975 T160 Model	$16.01	View
44	Peg, Thrust Washer Locator	57-0912	1	1975 T160 Model
45	Bush	57-5000	1	1975 T160 Model
46	Bearing	60-3552	1	1975 T160 Model	$46.00	View
47	Bearing Circlip, 5 Speed	57-4113	--	1975 T160 Model	$2.75	View
48	Dowel	57-0989	2	1975 T160 Model	$4.10	View
49	Operating Quadrant	57-4363	1	1975 T160 Model
50	Quadrant Spindle	57-1896	1	1975 T160 Model	$16.01	View
51	Split Pin	60-2708	2	1975 T160 Model
52	O'Ring	37-3761	1	1975 T160 Model	$2.55	View
53	Inner Gearbox Gasket	71-1447	1	1975 T160 Model	$4.60	View
54	Set Screw	14-6121	1	1975 T160 Model
55	Washer, Engine Mount	70-3446	1	1975 T160 Model	$1.20	View
56	Socket Cap Screw	14-7101	1	1975 T160 Model
57	Screw Ponzi	21-1917	1	1975 T160 Model	$4.30	View
58	Case Screw	14-6614	1	1975 T160 Model
59	Oil Level Dipstick	57-4771	1	1975 T160 Model	$6.70	View
60	Gearshift Fork, Timing	57-4698	1	1975 T160 Model
61	Quadrant	57-4881	1	1975 T160 Model
62	Key	71-0037	1	1975 T160 Model
63	Plunger, 5 Speed	57-4403	2	1975 T160 Model	$25.00	View
64	Gear Change, Return Spring	57-0405	2	1975 T160 Model	$4.60	View
65	Spring, Gearchange Return	57-0404	2	1975 T160 Model	$4.70	View
66	Plate	57-0407	1	1975 T160 Model	$44.00	View
67	Nut	14-0301	4	1975 T160 Model	$0.55	View
68	Shakeproof Washer	70-1612	4	1975 T160 Model	$0.45	View
69	Camplate	57-4226	1	1975 T160 Model
70	Plunger Spring	57-4459	1	1975 T160 Model	$4.50	View
71	Plunger Housing	57-4227	1	1975 T160 Model
72	Washer	57-3978	2	1975 T160 Model	$0.75	View
73	Camplate	57-4889	1	1975 T160 Model		View
74	Selector Fork, Mainshaft 4th Gear	57-4364	1	1975 T160 Model		View
75	Operating Fork, 5 Speed layshaft 3rd Gear	57-4366	1	1975 T160 Model	$77.00	View
76	Selector, Layshaft 1st gear	57-4660	1	1975 T160 Model		View
77	Selector Spindle	57-3989	1	1975 T160 Model	$26.00	View
78	Adaptor	57-5086	1	1975 T160 Model
79	Plunger	57-5087	1	1975 T160 Model	$6.50	View
80	Fibre Washer	70-1523	1	1975 T160 Model
