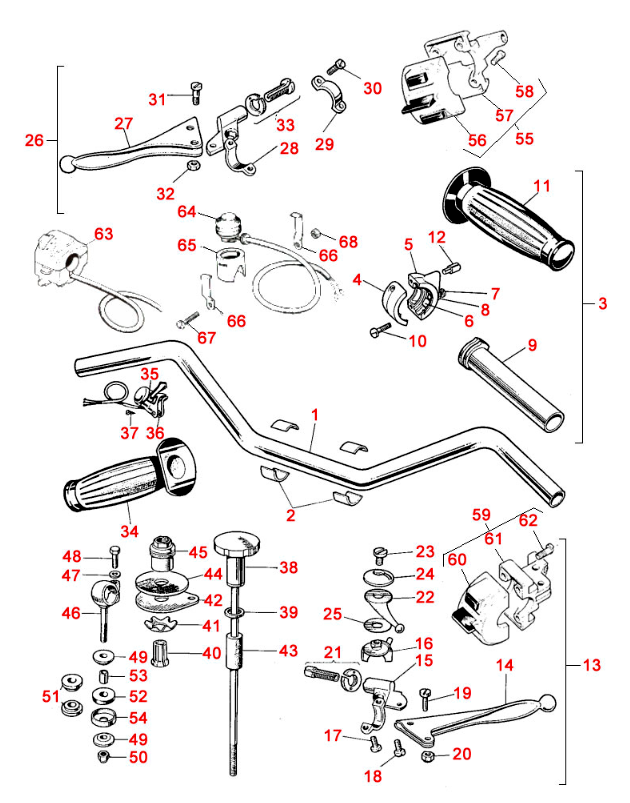

HomeMake: Triumph1970 Triumph 500 Twin, T100 DaytonaControls, Handlebars & InstrumentsHandlebars & Levers
| Plate # | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|
| 1 | Handle Bar | 97-1879 | 1 | Low Bars English Style | ||
| 1 | Handle Bar | 97-1519 | 1 | High Bars Western | ||
| 2 | Handle Bar Sleeves | 97-1425 | 4 | $3.36 | View | |
| 3 | Twist Grip | 99-0248 | 1 | $39.00 | View | |
| 4 | Twist Grip Body Top | 16/328 | 1 | N/A | ||
| 5 | Twist Grip Body Bottom | 16/329 | 1 | N/A | ||
| 6 | Friction Spring | 16/008 | 1 | N/A | ||
| 7 | Screw Friction Spring | 16/009 | 1 | |||
| 8 | Lock Nut, Idle Screw | 16/010 | 1 | |||
| 9 | Rotor | 16/091 | 1 | |||
| 10 | Screw | 11/013 | 2 | $2.50 | View | |
| 11 | Handlebar Grip | 97-2125 | 1 | Pair | $26.00 | View |
| 12 | Cable Stop | 16/011 | 1 | $9.00 | View | |
| 13 | Air Control Lever Assembly | 60-3567 | 1 | Choke Lever | $44.00 | View |
| 14 | Front Brake Lever | 18/754 | 1 | |||
| 15 | Lever Bracket | 19/001 | 1 | N/A | ||
| 16 | Air Control | 12/619 | 1 | |||
| 17 | Lever Half Clamp Screw | 11/014 | 1 | $3.03 | View | |
| 18 | Screw | 11/013 | 1 | $2.50 | View | |
| 19 | Screw | 18/087 | 1 | |||
| 20 | Nut | 18/053 | 1 | |||
| 21 | Cam Type Cable adjuster | 18/1708 | 1 | |||
| 22 | Lever | 12/556 | 1 | |||
| 23 | Air Control Lever bolt | 12/607 | 1 | |||
| 24 | Air Control lever Cap | 12/606 | 1 | |||
| 25 | Lever Spring | 12/033 | 1 | |||
| 26 | Clutch Lever | 60-2242 | 1 | $42.00 | View | |
| 27 | Clutch Lever Ball Ended | 18/752 | 1 | $42.00 | View | |
| 28 | Clutch Bracket Lever | 19/002 | 1 | |||
| 29 | Clamp | 12/595 | 1 | |||
| 30 | Lever Half Clamp | 11/014 | 2 | |||
| 31 | Screw | 18/087 | 1 | $6.50 | View | |
| 32 | Nut | 18/053 | 1 | $2.45 | View | |
| 33 | Cable Adjuster | 18/1708 | 1 | $8.80 | View | |
| 34 | handle Bar Grip | 60-0959 | 1 | Pair of Grips | $26.00 | View |
| 35 | Horn Push & Dip Switch | 31563 | 1 | $36.00 | View | |
| 36 | Rubber Pad | 380459 | 1 | N/A | ||
| 37 | Screws for Horn Switch Unit | 97-1994 | 2 | N/A | ||
| 38 | Damper Rod With Knob | 97-1142 | 1 | Steering Damper Assembly | View | |
| 39 | Washer Steering Damper | 97-0565 | 1 | $13.00 | View | |
| 40 | Damper Sleeve | 97-0408 | 1 | View | ||
| 41 | Star Washer | 97-0095 | 1 | $13.00 | View | |
| 42 | Anchor Plate | 97-1797 | 1 | View | ||
| 43 | Rubber Bush | 97-1618 | 1 | $13.00 | View | |
| 44 | Friction Disc | 97-0435 | 1 | View | ||
| 45 | Sleeve Nut, Steering Stem | 97-2108 | 1 | $31.00 | View | |
| 46 | Clamp- Handlebar Fixing | 97-2291 | 2 | $59.00 | View | |
| 47 | Spacer 5/16 X 1/12 X 1/8 | 82-1335 | 2 | $2.55 | View | |
| 48 | Bolt Handlebar | 97-1340 | 2 | $4.85 | View | |
| 49 | Handlebar Clamp Washer | 97-1529 | 4 | |||
| 50 | Locking Nut 3/8 UNF | 14-1903 | 2 | $1.55 | View | |
| 51 | Handlebar Solid Mount | 97-1616 | 4 | View | ||
| 52 | Handlebar Clamp Rubber Washer | 97-1580 | 2 | $1.16 | View | |
| 53 | Distance Piece | 97-1581 | 2 | $2.00 | View | |
| 54 | Handlebar Mounting Cups | 97-2221 | 2 | $2.95 | View | |
| 55 | Handlebar Switch Assembly LH | 39595 | 1 | $165.00 | View | |
| 56 | Switch Half Assembly | 54033666 | 1 | |||
| 57 | Lever Half Switch | 54340881 | 1 | |||
| 58 | Handlebar Switch Screws | 54115246 | 4 | $1.85 | View | |
| 59 | Handlebar Switch Assembly RH | 39596 | 1 | $165.00 | View |
