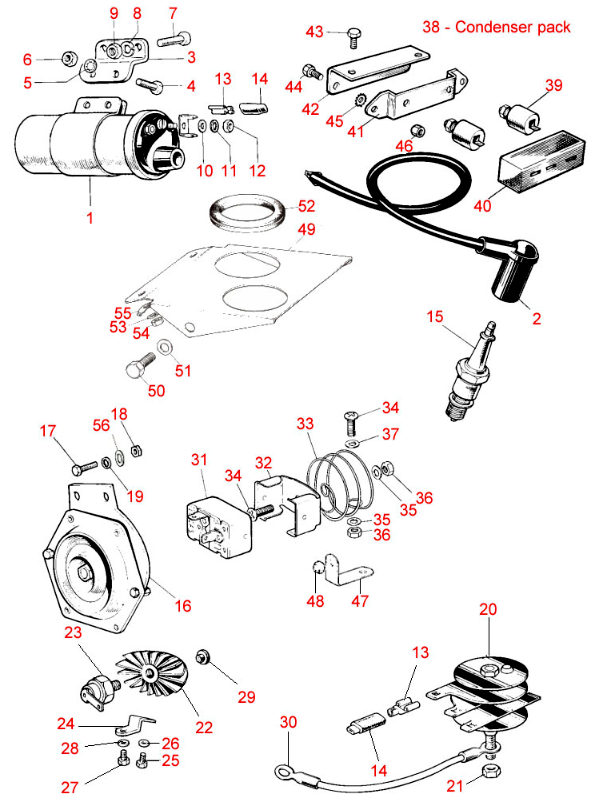

Ignition coils, horn, rectifier & Zener diode

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	HT Coil	45223	2	12Volt	Original price was: $83.00.Current price is: $74.80.	View
1	Coil	47275	2	Use 2X 6Volt Coils for Electronic Ignitions	Original price was: $83.00.Current price is: $74.80.	View
2	Spark Plug Lead and Cap	60-0262	2
2	Spark Plug Cap	60-0262	2	Suppressed Cap for Electronic Ignition	$13.50	View
3	Coil Bracket	83-1533	2
4	Set Screw	14-0103	4		$0.55	View
5	Washer	60-4245	4			View
6	Nyloc Nut	14-0301	4		$0.55	View
7	Bolt 5/16"	14-0114	2		$0.65	View
8	Washer	60-4247	2
9	3/8 Nut	14-0302	2		$0.30	View
10	Washer	131023	4
11	Shake Proof Washer	188330	--		$0.40	View
12	2BA Nut	166043	4		$1.10	View
13	Connector	54942078	2
14	Insulating Cover	54190042	1
15	Spark Plug	N3	2	1970 Only	$12.00	View
15	Spark Plug	N4	2	1971-74	$11.00	View
16	Horn	27899	1	1970-1972
16	Horn	70216	1	1973-74
17	Hex Bolt	82-4771	2		$1.30	View
18	2BA Locking Nut	82-3799	3		$1.10	View
19	Serrated Washer	60-4256	3		$0.40	View
20	Rectifer Lucas	49072	1	for Points and Zener Diode	$155.00	View
20	Mosfet Regulator Rectifier	VR-0030	1	Replace Zener Diode and Rectifier with this for Electronic Ignition	$139.00	View
21	Nut	82-5338	1		$1.16	View
22	Heat Sink	97-2237	1
23	Zener Diode	49345	1	No Longer Avaliable		View
24	Heat Sink Bracket	97-2365	1			View
25	Bolt	14-6102	1		$0.61	View
26	Washer Spring	60-4250	1		$1.16	View
27	Bolt	14-0113	1		$1.65	View
28	Washer	60-4260	1		$0.45	View
29	Heat Sink Plug	97-2275	1		$5.90	View
30	Earth Blade	54190000	1
31	Flasher Unit	35048	1		$19.00	View
32	Clip	54384768	1		$17.00	View
33	Spring	60-3654	1
34	Bolt	83-0033	2
35	Washer	60-2391	2		$0.61	View
36	2BA Lock Nut	21-0778	2		$1.10	View
37	Washer	60-4248	2			View
39	Condenser	54420128	2			View
40	Condenser Cover	54418528	1		$13.00	View
41	Condenser baseplate	54418526	1		$5.45	View
42	Condenser Bracket	82-8082	1
43	Case Screw	70-4638	2
44	Bolt	83-0033	2
45	Serrated Washer	60-4256	2		$0.40	View
46	Lock Nut	82-3799	2		$1.10	View
47	Bracket	83-2906	1
48	Rubber Plug	83-2569	1
49	Mounting Platform	83-4111	1
50	Bolt	14-0102	2		$0.85	View
51	Spring Washer	60-2427	2		$0.30	View
52	Coil Grommet	83-4139	2		$9.30	View
53	Washer	60-2391	2
