Home>Make: Triumph>1968-75 Triumph 750 Triples T150 & T160>Engine, Primary Drive & Clutch>Oil Pump

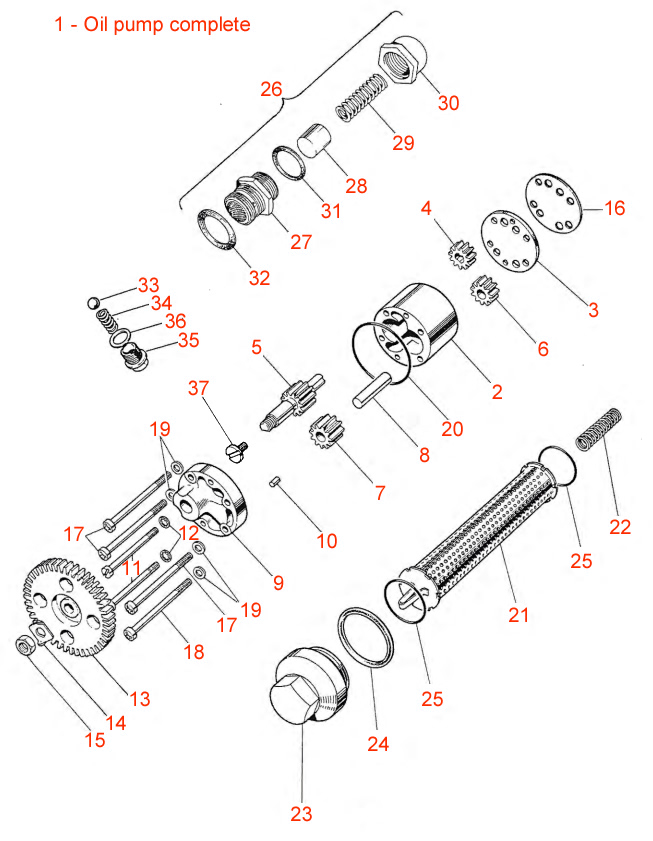

Oil Pump

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Oil Pump Assembly	71-1351	1	1971-75 All Models		View
Plate 2-9	Oil Pump Assembly	--	--	Purchase as assembly
10	Dowel	70-6459	1	1968-75 All Models
11	Screw	21-0559	2	1968-75 All Models
12	Washer	70-8731	2	1968-74 All Models
13	Driven Gear	70-9886	1	1968-74 All Models
14	OIl Pump Tab Washer	71-1353	1	1971-75 All Models	$4.95	View
15	Half Nut	14-0402	1	1971-75 All Models	$1.60	View
16	Oil Pump Gasket	71-1442	1	1970-75 All Models		View
17	Oil Pump Screws	21-2309	3	1971-75 All Models	$6.40	View
18	Oil Pump Screw	70-9601	1	1968-75 All Models	$5.95	View
19	Spring Washer	70-8732	4	1968-75 All Models	$0.35	View
20	O'ring	70-6570	1 or 2 on T160	1970-74 All Models	$3.30	View
21	Oil Filter	70-6571	1	1968-75 All Models	$21.00	View
22	Spring	70-6130	1	1968-75 All Models
23	Oil Filler Cap	71-1270	1	1970-75 All Models	$32.00	View
24	O'ring Filler Cap	71-1070	1	1970-75 All Models	$1.80	View
25	O'Ring	70-8779	2	1968-75 All Models	$2.21	View
26	Pressure Relief Valve	70-6595	Assembly	1968-75 All Models	Original price was: $125.00.Current price is: $104.50.	View
27	Valve Body	70-7590	1	1968-75 All Models
28	Piston, Pressure Relief	70-8752	1	1973-75 All Models	$13.00	View
29	Pressure Relief Valve	70-7591	1	1968-74 All Models	$6.00	View
30	Cap	70-6596	1	1968-75 All Models	$17.00	View
31	Fibre Washer	70-8754	1	1968-75 All Models	$0.95	View
32	Washer Oil Release	70-1670	1	1968-75 All Models	$0.50	View
33	Valve Ball	60-2370	1	1975 T160
34	Pressure Release Spring	70-6567	1	1975 T160
35	Plug	70-6584	1	1975 T160
36	Join Washer	71-2792	1	1975 T160
37	Oil Pump Screw	70-7250	1	1975 T160
