HomeMake: Triumph1970 Triumph 500 Twin, T100 DaytonaEngine, Primary Drive & ClutchOil Pump

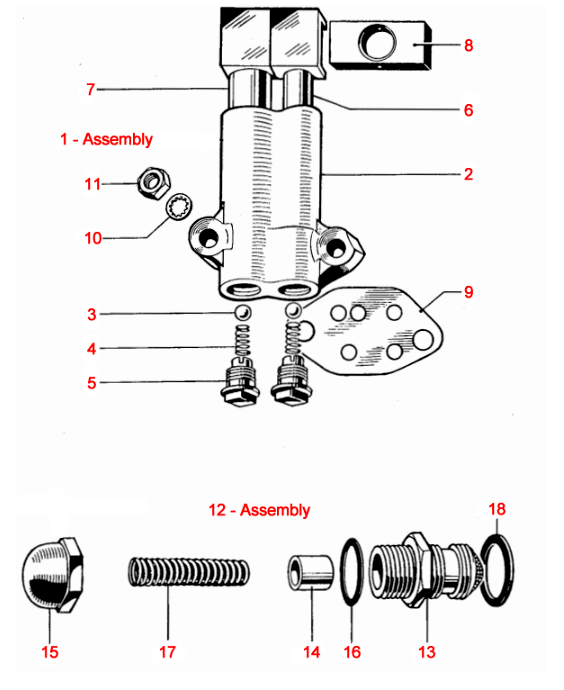

| Plate # | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|
| 1 | Complete Oil Pump | 709421 | 1 | $189.00 | View | |
| 2 | Oil Pump Body | 70-6680 | 1 | |||
| 3 | 7/32 Ball Bearing | 60-2363 | 2 | $1.10 | View | |
| 4 | Spring | 70-0403 | 2 | $1.10 | View | |
| 5 | Plug, Oil Pump | 70-2360 | 2 | $12.00 | View | |
| 6 | Feed Plunger for oil Pump | 71-3422 | 1 | |||
| 7 | Scavenge Plunger | 70-6681 | 1 | |||
| 8 | Oil Pump Block | 70-0495 | 1 | $13.00 | View | |
| 9 | Gasket Oil Pump | 70-3730 | 1 | $3.30 | View | |
| 10 | Shake Proof Washer | 70-3887 | 2 | $0.85 | View | |
| 11 | Oil Pump Nut | 21-1906 | 2 | $1.71 | View | |
| 12 | Pressure Relief Valve | 70-6595 | 1 | Stainless Steel Complete Assembly | Original price was: $125.00.$104.50Current price is: $104.50. | View |
| 13 | Valve Body | 70-7590 | 1 | |||
| 14 | Washer | GS251 | 1 | $0.95 | View | |
| 15 | Cap | 70-6596 | 1 | $17.00 | View | |
| 16 | Fibre Washer | 70-8753 | 1 | |||
| 17 | Pressure relief Spring | 70-7591 | 1 | $6.00 | View | |
| 18 | Washer, Oil Release | 70-1670 | 1 | $0.50 | View |
