Home>Make: Triumph>1968-75 Triumph 750 Triples T150 & T160>Mudguards, Seats, Panels & Tanks>Oil Tank

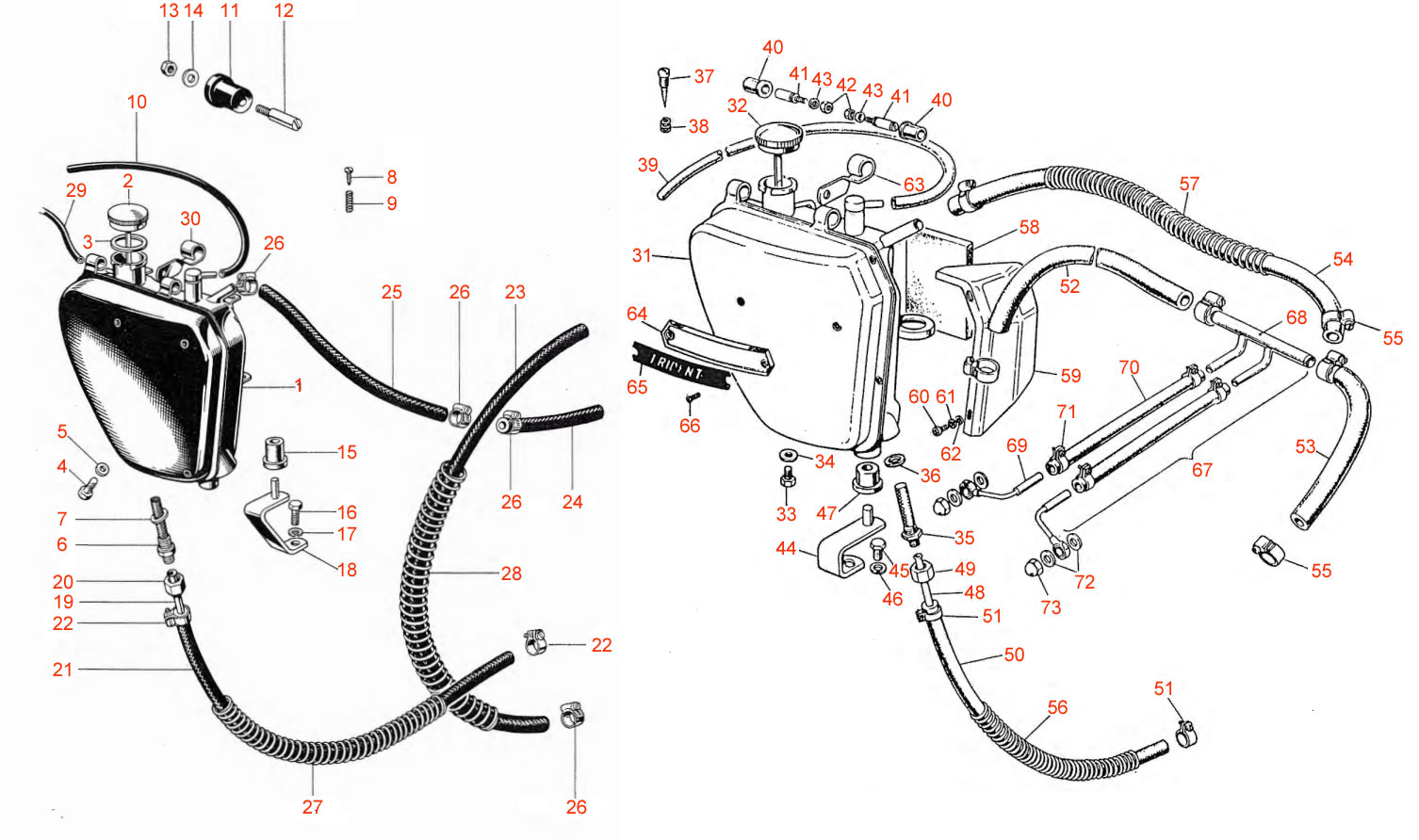

Oil Tank

Scroll sideways to view the table completely.

Plate #	Part Name	Part #	Qty Fitted	Description	Price
1	Oil Tank	83-1761	1	1970-74 T150 Models
2	Oil Tank Cap & Dipstick	82-9659	1	1968-74 T150 Models		View
3	Cork Washer	82-4047	1	1968-74 T150 Models		View
4	Plug 3/8 CEI	82-5343	1	1968-74 T150 Models
5	Fibre Washer	60-4262	1	1968-74 T150 Models	$1.16	View
6	Oil Filter	82-9430	1	1968-74 T150 Models		View
7	Fibre Washer	82-1713	1	1968-74 T150 Models	$1.65	View
8	Oil Screw	82-9435	1	1968-74 T150 Models
9	Coil Spring	82-6874	1	1968-74 T150 Models
10	Vent Pipe	82-9664	1	1968-74 T150 Models
11	Rubber Bush, Mudguard Stay	82-6673	2	1968-74 T150 Models	$3.30	View
12	Peg, Oil tank Mount	82-7510	2	1968-74 T150 Models	$6.80	View
13	Nyloc	14-0301	2	1968-74 T150 Models	$0.55	View
14	Washer, Rockerbox	60-4248	2	1968-74 T150 Models		View
15	Rubber Grommet	82-6039	1	1968-74 T150 Models	$4.05	View
16	Bolt	21-1822	1	1968-74 T150 Models	$1.10	View
17	Spring Washer	60-2418	1	1968-74 T150 Models	$0.45	View
18	Bottom Bracket	82-9588	1	1968-74 T150 Models
19	Oil Feed Pipe	82-3655	1	1968-74 T150 Models	Original price was: $18.00.Current price is: $13.20.	View
20	Nut- Oil Pipe Union	82-3182	1	1968-74 T150 Models	$4.40	View
21	Oil Pipe	70-8904	1	1968-74 T150 Models
22	Oil Feed Pipe Cip	70-6848	2	1968-74 T150 Models	$2.20	View
23	Oil Pipe	70-8905	1	1968-74 T150 Models
24	Flexible Pipe	71-1742	1	1970-74 T150 Models
25	Flexible Pipe	71-1743	1	1970-74 T150 Models
26	Oil Pipe Clip	60-0702	4	1968-74 T150 Models
27 & 28	Oil Pipe Protection Sleeve	82-9530, 82-9531	1 Set	1968-74 T150 Models	$17.00	View
29	Rear Chain Oiler Pipe	82-9526	1	1968-74 T150 Models
30	Clip	83-1549	1	1968-74 T150 Models
31	Oil Tank	83-4984	1	1975 T160 Model
32	Oil Tank Cap & Dipstick	82-9659	1	1975 T160 Model		View
33	Plug 3/8 CEI	82-5343	1	1975 T160 Model	$14.00	View
34	Fibre Washer	60-4262	1	1975 T160 Model	$1.16	View
35	Filter Assembly	83-5892	1	1975 T160 Model	$71.01	View
36	Fibre Washer	82-1713	1	1975 T160 Model	$1.65	View
37	Oil Screw	82-9435	1	1975 T160 Model
38	Coil Spring	82-6874	1	1975 T160 Model
39	Vent Pipe	82-9664	1	1975 T160 Model
40	Rubber Bush	82-6673	2	1975 T160 Model	$3.30	View
41	Peg, Oil Tank Mount	82-7510	2	1975 T160 Model	$6.80	View
42	Nyloc	14-1301	2	1975 T160 Model	$0.75	View
43	Washer, Rockerbox	60-4248	2	1975 T160 Model		View
44	Bracket	83-5276	1	1975 T160 Model
45	Bolt Bracket	21-1812	1	1975 T160 Model
46	Washer	60-4260	1	1975 T160 Model	$0.45	View
47	Rubber Grommet	82-6039	1	1975 T160 Model	$4.05	View
48	Feed Pipe	83-5890	1	1975 T160 Model	$18.00	View
49	Nut	83-5891	1	1975 T160 Model	$1.25	View
50	Oil Pipe	70-8904	1	1975 T160 Model
51	Oil Feed Pipe Clip	70-6848	2	1975 T160 Model
52	Return Pipe	71-3785	1	1975 T160 Model
53	Flexable Pipe	71-3786	1	1975 T160 Model
54	Flexible Pipe	83-5390	1	1975 T160 Model
55	Oil Pipe Clip	60-0702	6	1975 T160 Model
56 & 57	Oil Protection Sleeve	82-9530	1	1975 T160 Model	$17.00	View
58	Battery Pad	83-5015	1	1975 T160 Model
59	Styling Cover	83-5362	1	1975 T160 Model
60	Screw	21-2326	2	1975 T160 Model
61	Spring Washer	60-2416	2	1975 T160 Model	$0.35	View
62	Washer, 2BA	60-2391	2	1975 T160 Model
63	Clip	83-1549	1	1975 T160 Model
64	Name Plate	60-4427	1	1975 T160 Model
65	Trident Name Plate	60-4569	1	1975 T160 Model	$14.00	View
66	Screw	82-4129	2	1975 T160 Model	$0.90	View
67	Rocker Oil Pipe Assembly	71-4181	1	1975 T160 Model
68	Rocker Oil Pipe to Engine Cooler	71-4182	1	1975 T160 Model
69	Rocker Oil Pipe, Spindle Connection	71-4185	2	1975 T160 Model	$55.00	View
70	Oil Pipe	71-1175	2	1975 T160 Model
71	Oil Feed Pipe Clip	70-6848	4	1975 T160 Model
72	Sealing Washer	70-1335	4	1975 T160 Model	$2.31	View
73	Dome Nut	21-0550	2	1975 T160 Model	Original price was: $9.10.Current price is: $8.25.	View
