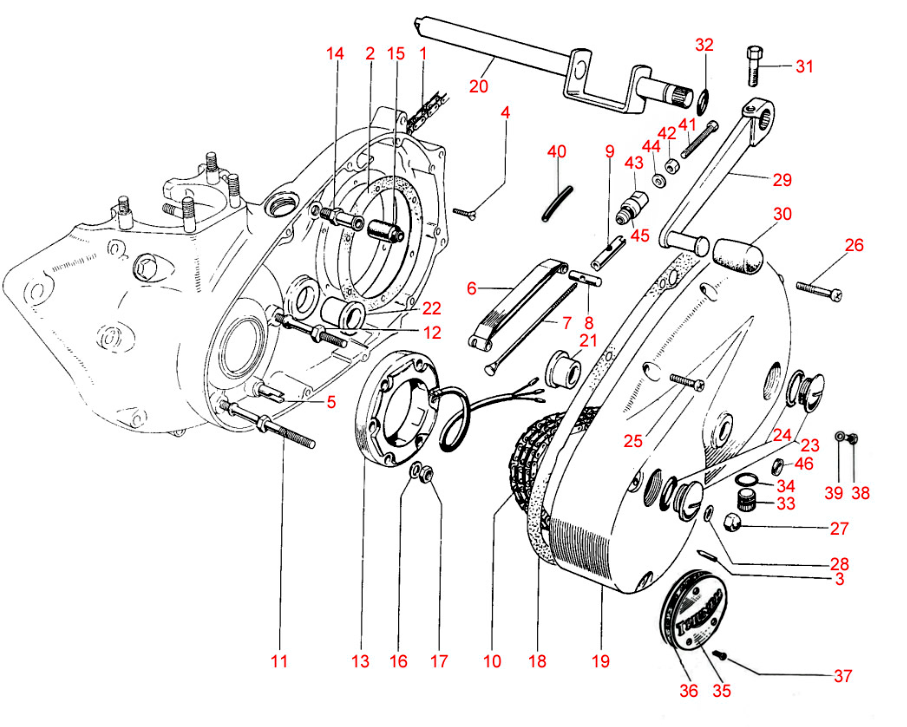

HomeMake: Triumph1977 Triumph 750 Twins T140V, TV7RVEngine, Primary Drive & ClutchPrimary Chaincase & Stator
| Plate # | Picture | Part Name | Part # | Qty Fitted | Description | Price | |
|---|---|---|---|---|---|---|---|
| 1 |  |
Rear Chain | 60-2118 | 1 | 107 Link 530 Chain | View | |
| 2 |  |
Gasket, Clutch Oil Seal Housing | 71-1419 | 1 | $4.96 | View | |
| 3 | Pointer | 71-3892 | 1 | ||||
| 4 |  |
Screw | 70-3821 | 6 | $1.10 | View | |
| 5 |  |
Tensioner Abutment | 70-5088 | 1 | $17.00 | View | |
| 6 |  |
Primary Blade | 70-5085 | 1 | $41.80 | View | |
| 7 |  |
Tie Rod | 70-4152 | 1 | $3.30 | View | |
| 8 |  |
Trunnion | 70-5087 | 1 | $4.20 | View | |
| 9 |  |
Adjuster Sleeve Nut | 70-9703 | 1 | $9.75 | View | |
| 10 |  |
Primary Chain | 60-4125 | 1 | $174.00 | View | |
| 11 |  |
Alternator Stud | 21-2199 | 2 | 4-3/8" Long | $22.00 | View |
| 12 | |
Alternator Stud | 21-2198 | 1 | $22.00 | View | |
| 13 |  |
Alternator | 47205 | 1 | RM21 2 lead single phase 10 amp | View | |
| 14 |  |
Sleeve Nut, Alternator Wire | 70-9360 | 1 | $11.00 | View | |
| 15 |  |
Alternator Cable Seal | 70-4144 | 1 | $1.99 | View | |
| 16 | Washer | 60-4247 | 3 | ||||
| 17 |  |
Nut, Alternator to Studs | 14-0702 | 3 | $3.95 | View | |
| 18 |  |
Primary Cover Gasket | 71-7009 | 1 | $15.00 | View | |
| 19 | Primary Cover | 71-7003 | 1 | ||||
| 20 | Spindle | 57-7003 | 1 | ||||
| 21 |  |
Kickstart Spindle Bush | 57-0023 | 1 | $24.00 | View | |
| 22 |  |
Gear Lever Bush | 57-7009 | 1 | $7.50 | View | |
| 23 |  |
Chaincase Inspection Cap | 71-3895 | 1 | $17.05 | View | |
| 24 |  |
O"ring | 71-3896 | 2 | $1.85 | View | |
| 25 |  |
Case Screw | 14-6608 | 6 | 1/4" Unc | $2.70 | View |
| 26 |  |
Slotted Screw | 14-6620 | 2 | $4.90 | View | |
| 27 |  |
Dome Nut | 21-0544 | 2 | Original price was: $8.40.$6.71Current price is: $6.71. | View | |
| 28 |  |
Copper Washer | 82-1880 | 2 | $1.50 | View | |
| 29 |  |
Gear Change Lever LEFT HAND | 57-7010 | 1 | $71.01 | View | |
| 30 |  |
Gear Change Rubber | 57-2450 | 1 | $4.15 | View | |
| 31 |  |
Bolt | 14-0201 | 1 | $1.00 | View | |
| 32 |  |
Kick start Spindle O'ring | 60-3530 | 1 | $2.00 | View | |
| 33 |  |
Set Screw | 14-6113 | 1 | View | ||
| 34 |  |
O"Ring | 70-7431 | 1 | $1.95 | View | |
| 35 |  |
Rotor Cover | 57-4645 | 1 | $44.00 | View | |
| 36 |  |
Alternator Rotor Cover | 71-1457 | 1 | $2.95 | View | |
| 37 |  |
Screw | 57-4646 | 3 | $1.20 | View | |
| 38 |  |
Bolt | 14-6101 | 1 | $0.90 | View | |
| 39 |  |
Copper Washer | 70-2441 | 1 | $1.30 | View | |
| 40 | Plastic Sleeve | 70-5449 | 1 |
