Starter Motor T160

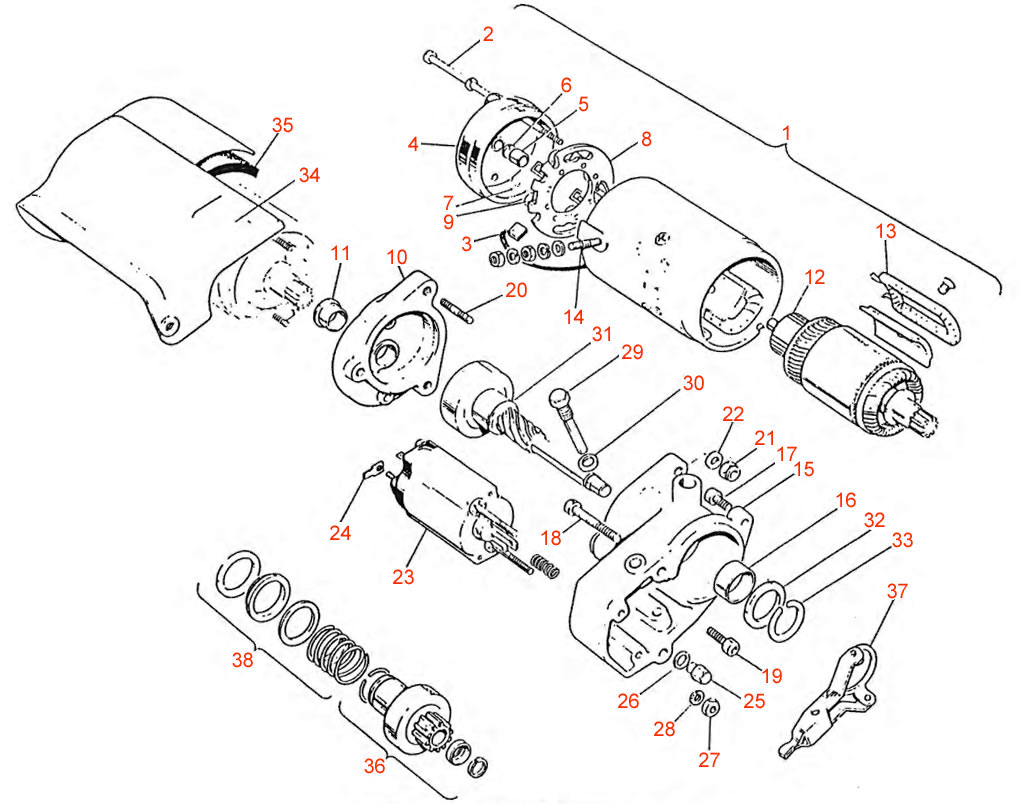

Starter Motor T160 - Classic bike Spares
Scroll sideways to view the table completely.
Plate # Part Name Part # Qty Fitted Description Price
1 Starter Motor 60-4211 1 1975 T160
2 Bolt 19-1950 2 1975 T160
3 Brushes 19-1951 1 1975 T160
4 Bracket 19-1552 1 1975 T160
5 Bush 19-1953 1 1975 T160
6 Pad 54252180 1 1975 T160
7 Liner 54251728 1 1975 T160
8 Plate 19-1954 1 1975 T160
9 Spring Set 19-1955 4 1975 T160
10 Bracket 71-3579 -- 1975 T160
11 Starter Motor Bush 71-3581 1 1975 T160
12 Armature 19-1956 1 1975 T160
13 Field Coils 54256043 1 1975 T160
14 Terminal 54256040 1 1975 T160
15 Bearing Housing 71-3653 1 1975 T160
16 Bush 71-3654 1 1975 T160
17 Screw 14-7002 2 1975 T160
18 Cap Screw 14-7008 1 1975 T160
19 Cap Screw 14-7018 1 1975 T160
20 Manifold Stud 21-0582 2 1975 T160
21 Locking Nut 14-1302 2 1975 T160 $1.82
View
22 Washer 60-2330 2 1975 T160 $0.41
View
23 Solenoid 60-4212 1 1975 T160
24 Terminal 60-4592 1 1975 T160
25 Sleeve Nut 71-3665 1 1975 T160
26 Thrust Washer 57-0825 1 1975 T160
27 Nut 71-3664 1 1975 T160
28 Washer 70-2728 1 1975 T160 View
29 Pivot Pin 71-3663 1 1975 T160
30 Washer 82-8981 1 1975 T160 $2.32
View
31 Intermediate Shaft 71-3655 1 1975 T160
32 Thrust Washer 71-3661 1 1975 T160
33 Circlip 71-3662 1 1975 T160
34 Starter Motor Cover 83-5529 1 1975 T160
35 Rubber Pad 83-5583 1 1975 T160
36 Drive Assembly 54246123 1 1975 T160
37 Lever Assembly 54247153 1 1975 T160
38 Spring 54245340 1 1975 T160
